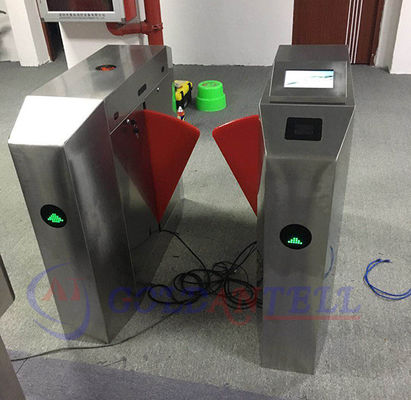

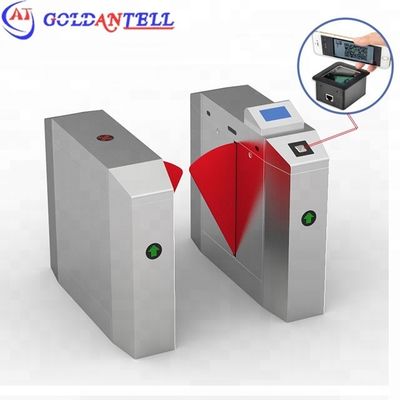

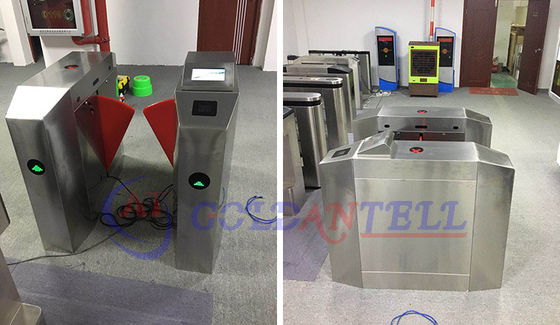

Intelligent QR Code Access Optical Turnstile with IP54 Waterproof 304 Stainless Steel 1200x300x1000mm Security Turnstile Gate
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-206 |
| Document | GAT-230 flap barrier gate d...os.pdf |
| Minimum Order Quantity | 1 |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7-9 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Switching Power Supply | AC220±10%V 50Hz Or AC110±10%V 60Hz | Material | 304 Stainless Steel |
|---|---|---|---|
| Size | 1200 * 300 * 1000mm | Working Temperature | -15°C To 75°C |
| Input Signal | DC12V/dry/contact/RS485/RS232/Remote | Channel Width | Single Wing 600mm; Double Wing 900mm |
| Drive Motor | DC Brushless Motor | Flap Opening Time | 0.6-0.8s |
| Flap Length | 285mm | Access Mode | Single In/out Or Bidirectional |
| Flow Rate | 40 Persons/min (open), 25-30 Persons/min (closed) | Reset Time | Default 10s |
| IP Rating | IP54 | Flap Auto-reverse | IR Sensor Detected Obstacle |
| Emergency Power Failure | Flaps Automatically Open | ||
| Highlight | IP54 Waterproof Optical Turnstile,1200x300x1000mm Security Turnstile Gate,Intelligent QR Code Access Flap Barrier Turnstile |
||
Product Description
Goldantell Intelligent Turnstile Gate Series
Our intelligent series of turnstile gates feature excellent design and superior performance, manufactured using innovative technology and high-quality materials. These pedestrian barrier gates provide comprehensive security solutions for commercial and industrial applications, including anti-pinch protection, time attendance, and access management.
Standard Features
- Constructed from 304 stainless steel with elegant, anti-rust design
- IP54 waterproof rating for durable performance
- CE Certified for quality assurance
- Compatible with RFID, fingerprint, QR/barcode, and ESD access control systems
Safety Features & Functions
Safety Priority Design
- Anti-pinching function with auto-reverse when IR sensors detect obstacles
- Optional green/red/blue LED lighting along flap wing edges for enhanced visibility
- Anti-tailgating and anti-retrogradation protection with pause/resume functionality
- Auto-close timer prevents unauthorized access after delay period
- LED indicators show lane availability (green arrow) or maintenance status (red cross)
- Emergency evacuation mode with automatic flap opening during power failure
- Easy integration with reader holder brackets for RFID, barcode, and fingerprint systems
Technical Specifications
| Item Number | GAT-206 |
| Cabinet Dimension | 1200 (L) x 300 (W) x 1000 (H) mm |
| Cabinet Material | 304 stainless steel (316 stainless steel available as custom option) |
| Power Supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Flap Operation Time | 0.6-0.8 seconds |
| Flap Extension Length | 285 mm single wing (extendable for disabled access) |
| Access Mode | Single in/out or bidirectional |
| Optimal Flow Rate | 40 persons/minute (open), 25-30 persons/minute (closed) |
| Reset Time After Breakdown | Default 10 seconds (configurable) |
| 7-inch Display | Shows date, time, and entry events ("invalid ticket", "entry") |
Customization Options

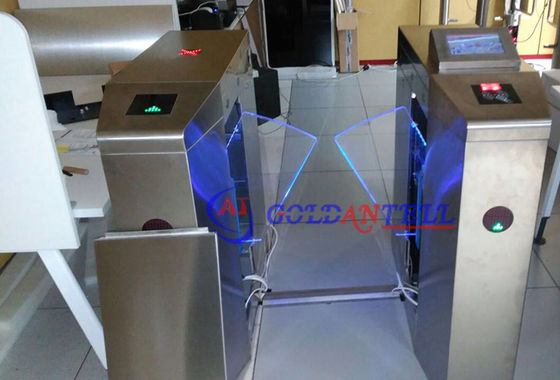

- Flap arm colors available in red, blue, black, or transparent with LED lighting
- Dual reading window design for RFID reader and barcode scanner integration
Applications

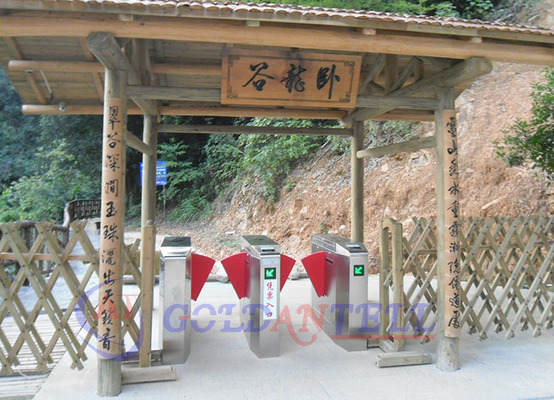

Flap turnstile barrier series are suitable for subway stations, airports, tourism sports facilities, exhibitions, swimming halls, residential areas, enterprise entrances and exits, attendance systems, gateway security, charge management, and special access control applications.
Note: Optical turnstiles with colorful LED lighting are not recommended for outdoor installation or near coastal areas.
Trade Terms
- Offer valid for 30 days
- Delivery within 7 days after payment receipt
- Payment methods: T/T, LC, Western Union, Escrow, PayPal
- Packaging: Carton box + wooden case/crate
Delivery Details
- Sea freight: 15-60 days depending on destination
- Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
- Air cargo: 2-7 days
