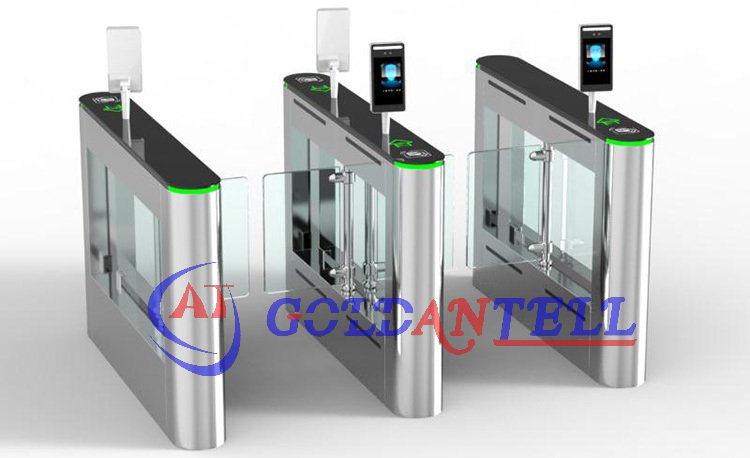

Swing Barrier Gate with Face Recognition RFID 20K Database DC12V 5W
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Goldantell/OEM |
| Model Number | GAT-660 |
| Minimum Order Quantity | 2 |
| Price | negotiation |
| Packaging Details | 7 working days after received your payment |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Communication Interface | Rs232, Rs485 | Barrier Open Time | 0.2s |
|---|---|---|---|
| Access Control Type | Face Recognition, RFID Card | Barrier Motor | Brushless Motor |
| Protection Level | IP54 | Operation Direction | 2-way |
| Power | DC12V | Operating Temperature | -10℃-60℃ |
| Face Detection | 20 Thousand Local Face Database | USB Port | USB2.0 And 2micros |
| Power Consumption | 5W MAX | Equipment Weight | 1.6KG |
| Identification Distance | 0.3-0.5 M | Identification Speed | Face Detection And Tracking 20 Ms |
| Pass Speed | 40 Persons/min (open), 25-30 Persons/min (closed) | ||
| Highlight | Swing barrier gate with face recognition,RFID swing barrier gate 20K database,DC12V swing barrier gate 5W |
||
You can tick the products you need and communicate with us in the message board.
Product Description

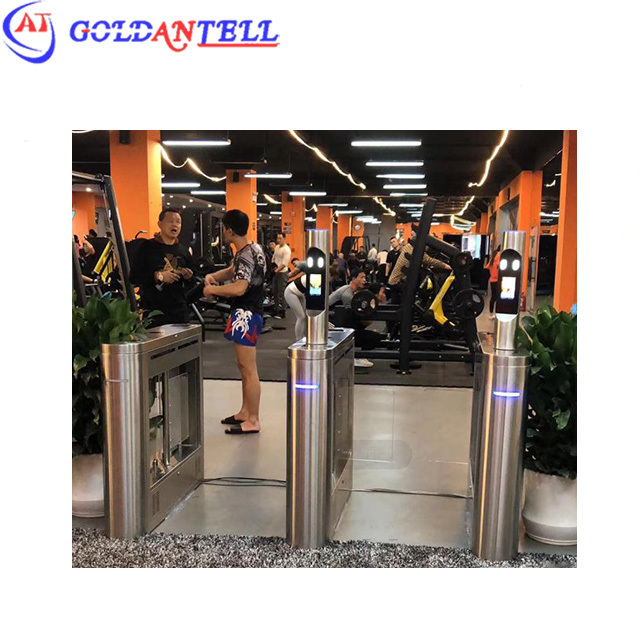

QR Code & RFID Temperature Turnstile for Gym Entry with Multiple Face Recognition
This advanced access control system combines QR code, RFID, and facial recognition technologies with temperature screening for secure, efficient gym entry and facility access management.
Key Features
- Supports Android 7.1+ systems with 1:1 and 1:N recognition modes
- Fast, accurate face recognition with high security and stability
- Integrated temperature screening replaces traditional thermometers
- Compatible with tripod turnstiles, flap turnstiles, and swing barriers
- Ideal for high-security environments like premium neighborhoods and commercial buildings
Face Recognition Terminal Specifications
| Size | 253 × 139 × 26.5 mm (L×W×H) |
| Material | Aluminum alloy case with tempered glass panel |
| Interface | Wiegand 26/34, RS232 |
| Identification Distance | 0.3-0.5 m |
| Camera | Automatic light burst |
| Screen | 8-inch LCD |
| Power | DC12V/2A |
| Identification Speed | 20 ms face detection and tracking |
| Weight | 0.9 kg |
| Temperature Detection | 2-3 seconds per person |
Turnstile Gate Specifications
| Housing Size | 1300 × 200 × 1000 mm (L×W×H) |
| Drive Motor | Standard DC 24V brush motor (brushless optional) |
| Direction | Single or bi-directional (optional) |
| Pass Speed | 40 persons/min (open), 25-30 persons/min (closed) |
Advanced Features
- Photosensitive sensor with infrared and LED fill light
- Serial port driver and Wiegand 26/34 bit output
- Dynamic face detection and tracking via video stream
- Local storage for 10,000 user profiles
- Cloud storage for 50,000 face photos and 1 million recognition records
- Fast recognition with stranger detection capability
- Supports HTTP port interface and WAN/LAN network deployment
Installation Options
- Desktop: For program debugging with adjustable angle mounting
- Turnstile Gate: Mounts on top of turnstile or on separate pillar
- Wall-mounted: Installs at 1400mm height (adjustable) with included back box
Service & Support
- Pre-sale consultation and product information
- Production updates with photos and testing videos
- Comprehensive after-sale support with manuals and installation guides
- OEM/ODM services for custom branding and specifications
- 16-hour professional support with prompt response
Frequently Asked Questions
Q: Can this system integrate with existing card reading systems?
A: Yes, it can work with most access control systems.
Q: Is it compatible with turnstile doors?
A: Absolutely, with no compatibility issues.
Q: What after-sale support is available?
A: We provide warranty service plus ongoing technical support.
Q: Does it support WiFi connectivity?
A: Yes, with wired, WiFi, and 4G module options.
Q: What is the lead time for orders?
A: Standard items ship in 7-15 days; custom items may require 3-10 additional days.
