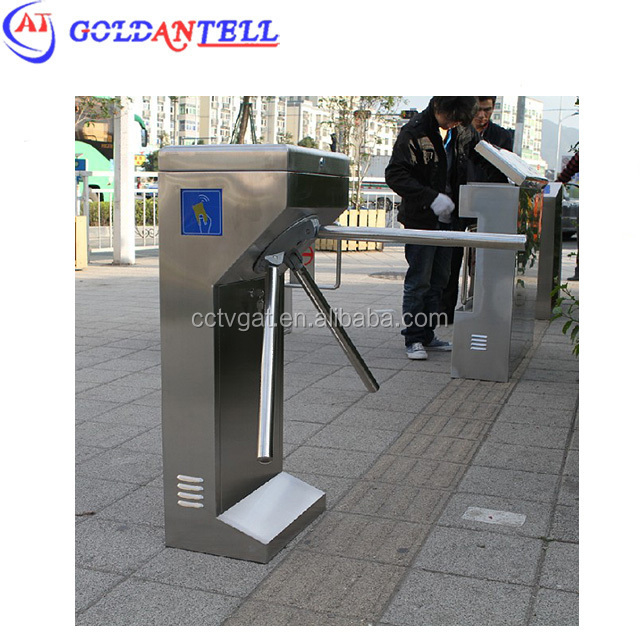

Tripod Turnstile Gate with RFID, 30-35 Persons/Min, IP54

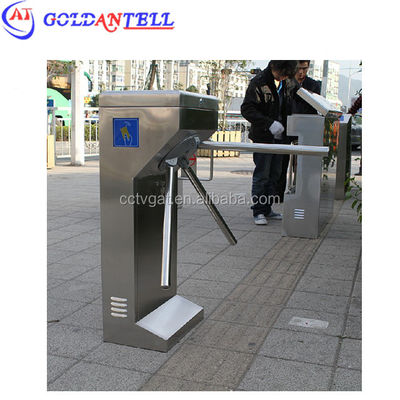

Large Image : Tripod Turnstile Gate with RFID, 30-35 Persons/Min, IP54

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Goldantell/OEM
Model Number:	GAT-306

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	$588

Contact Now

Detailed Product Description

MCBF:	2,500,000 Cycle	Relative Humidity:	≤95% Coagulation Free
Working Temperature:	-15°C To 75°C	Power Off Railing:	Yes
Input Signal:	DC12V/dry/contact/RS485/RS232/Remote	IP Protection:	IP54
Pass Speed:	30-35 Persons/min	Channel Width:	600mm
Drive Motor:	DC Brushless Motor	Dimension:	4203301000mm
Power Supply:	AC220V±10V,50HZ	Swing Angle:	0°-180°
Communication Distance:	≤1200m	Input Connection:	+12V Level Signal Or Pulse Wide>100ms DC12V Pulse, Current>10Ma
Material:	SUS304
Highlight:	Tripod turnstile gate with RFID , High capacity tripod turnstile gate , IP54 rated tripod turnstile gate

Access Control Security Passage Automatic Barrier Supermarket Entrance Counter Turnstile Speed Gate with RFID Interface

High-performance automatic turnstile gate with RFID interface designed for secure access control in various commercial and public facilities.

Specifications

Item	Specification
Type	Auto
Dimension	4203301000mm
Power	AC220C±10V,50HZ
Swing angle	0°-180°
Operating Temperature	-15°C-75°C
Relative Humidity	<95%, No concretion
Communication Distance	≤1200m
Passing Speed	30-40 Persons/min
Input Connection	+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
Communication Connection	RS485 Communication
Material	SUS304
Protection class	IP54
Application	Subway Stations, bus stations, parks, schools, factories, Hoverports, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise's Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control

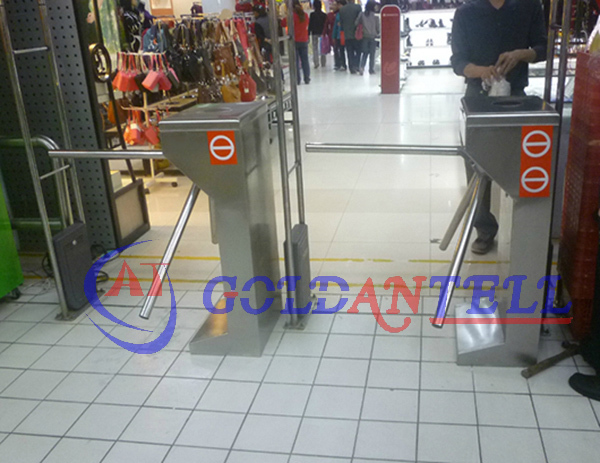

Ideal for Supermarket/Shopping Mall Entrances

Key Features and Functions

Problem-self-checking function
Multiple working modes: bi-directional card reading, single direction card reading, or free passage
Automatic arm opening during power failure and automatic holding when power returns
Adjustable arm closing delay (1-60 seconds)
Auto-reposition function with configurable passing time period
Alarm system for unauthorized passage attempts
485 interfaces for long-distance control
Anti-rush function keeps arm tightly held without open signal
Double anti-clipping protection: photocell and mechanical
Standard electrical interface for integration with various readers
Passenger counting with LED display
Direction display for user guidance
Card-reading with optional memory function
Population control capability via software
Quiet and stable operation

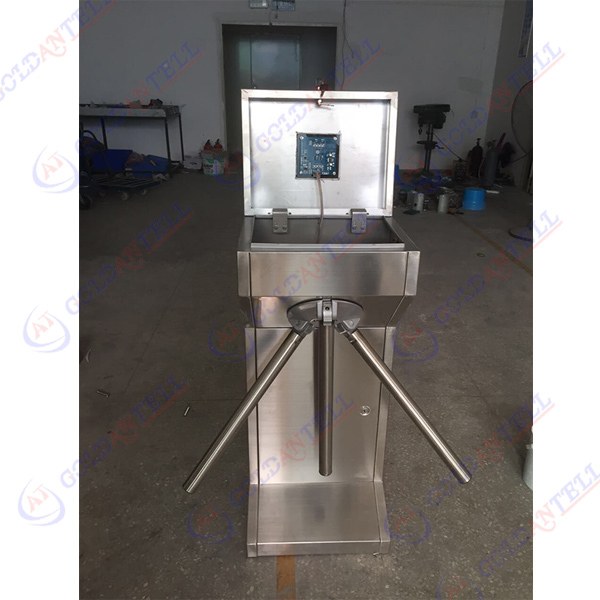

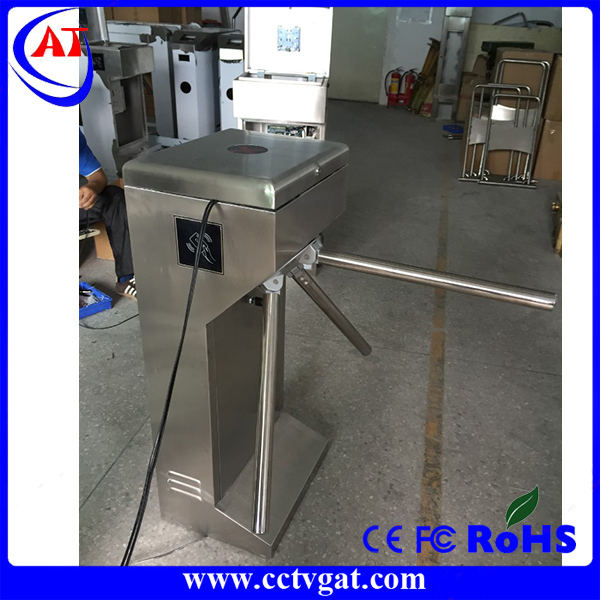

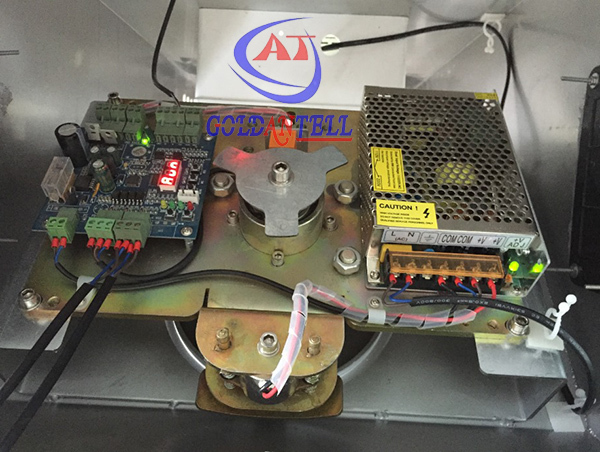

Product Details

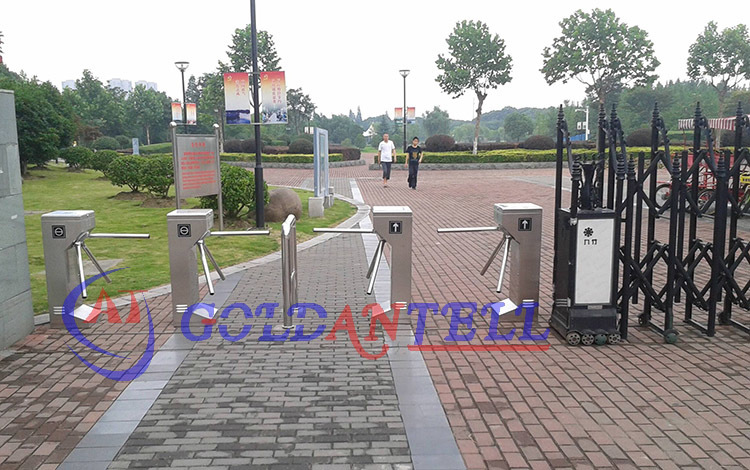

Project Installation Example
