ZK Face Recognition Swing Barrier Gate 1400mm Stainless Steel IP54
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Goldantell/OEM |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-620 series |
| Minimum Order Quantity | 1 |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 5-7 working days after received your payment |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Communication Interface | Rs232, Rs485 | Barrier Open Time | 0.2s |
|---|---|---|---|
| Access Control Type | Face Recognition, RFID Card | Barrier Motor | Brushless Motor |
| Protection Level | IP54 | Operation Direction | 1-way |
| Dimension | 1400*120*1000mm (L*W*H) | Display Type | Facial Display LCD Screen |

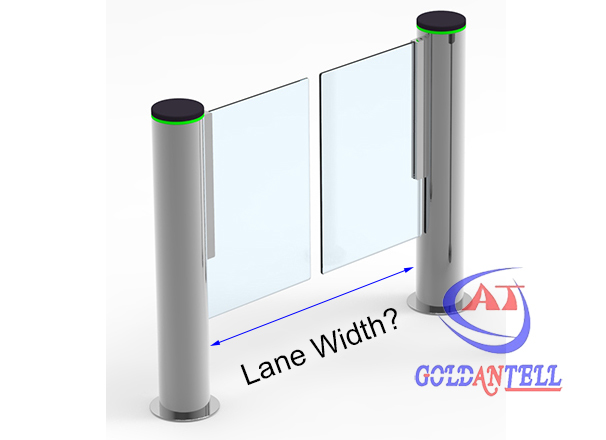

| Lane Width | 55-130CM | Power Supply | AC 110~240V 10% 50/60HZ |
| Housing Material | 304 Stainless Steel | Switching Power Supply | AC220±10%V 50Hz Or AC110±10%V 60Hz |
| Swing Arm Angle | 180 Degree | Optimal Flow Rate | 40 Persons/min (open), 35 Persons/min (closed) |
| Working Humidity | 30%~95% | ||
| Highlight | ZK face recognition swing barrier gate,1400mm stainless steel swing gate,IP54 rated swing barrier gate |
||
You can tick the products you need and communicate with us in the message board.
Product Description
High Quality Mechanical Pedestrian Access Control Turnstile
ZK Software Face Recognition Wheelchair Access Entry Gate
This high-quality mechanical pedestrian access control turnstile features ZK software face recognition and wheelchair accessibility, providing a secure and modern entry solution for various facilities.
Product Features
- Custom silk printing logo available
- Bi-directional or single-way operation options
- Built-in mechanical lock prevents forced opening
- Panel swing material options: Stainless steel, acrylic plate, or tempered glass
- Modern, elegant design with contactless access control
- Ideal for commercial buildings, airports, metro stations, and government institutions
Technical Specifications
| Specification | Details |
|---|---|
| Cabinet dimension | Diameter of pillar: 168mm, Height: 1050mm |
| Cabinet material | 304 stainless steel (316 ss available as custom option) |
| Power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Opening/closing time | 0.2s |
| Arm material | 10mm Acrylic, tempered glass, or steel |
| Access mode | Single in/out or bidirectional |
| Passthrough width | 550mm - 1800mm for a pair or 60-90mm per unit |
| Swing arm angle | 180 degrees |
| Communication interface | RS485, TCP/IP |
| Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| MCBF | 5,000,000 cycles |
| Working humidity | 30%~95% |

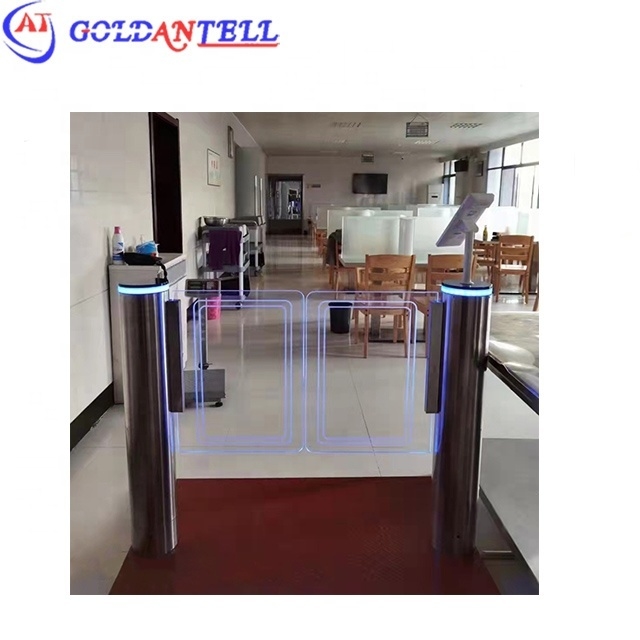

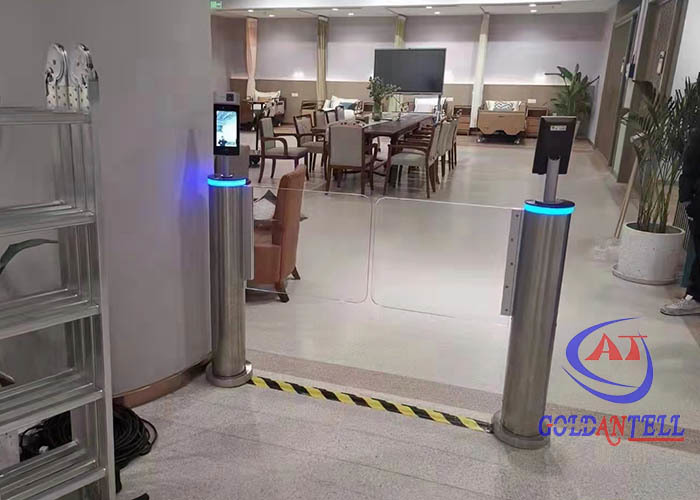

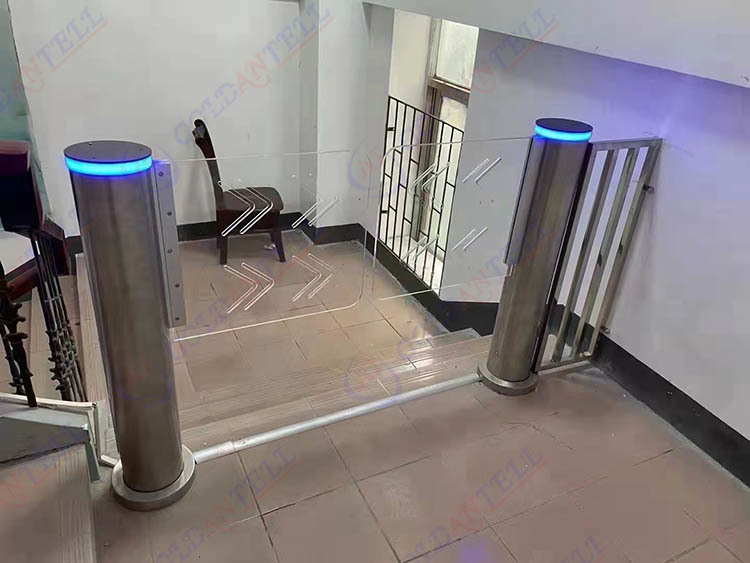

Product Images
Security Features
- Multiple alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
- Bi-directional or single way operation options
- Automatic gate opening during power failure for fire safety compliance
- Anti-tailgating feature prevents unauthorized entry
- Fast opening and closing time
- Built-in mechanical lock for enhanced security
Applications
- Exhibition halls
- Commercial buildings
- Parks
- Offices
- Public places
- Stadiums
- Libraries
- Museums
Frequently Asked Questions
Which payment terms do you accept?
T/T, Western Union, LC, PayPal, etc.
How does your factory control quality?
Quality control from the beginning to the ending of production.
Can your machines be used outside?
With waterproof function, suitable for outdoor use.
How long is your warranty period?
One-year guarantee with lifetime technology support.
What are your payment methods?
For orders ≤$5000: 100% T/T in advance. For orders >$5000: 50% T/T in advance, 50% before shipment (negotiable).
Packing Details
- Export packaging: Wooden case with pearl wool and plastic wrap
- Domestic packaging: Bubble wrap with carton or pearl wool with wooden packaging
- Professional, environmentally friendly packaging services
Why Choose Us
Our Pre-sale & After-sale Service
- Pre-sale: Detailed product information and consultation
- On-purchase: Production updates with photos and testing videos
- After-sale: Installation guides and manuals provided
- OEM/ODM: Custom logo, size, and color options
- Professional support: 16-hour response time
Company Information
Shenzhen Goldantell Technology Co., Ltd is a leading exporter of intelligent turnstiles and access control systems since 2007, offering customized products and OEM services.
Our Services & Strength
- Professional OEM/ODM design capabilities
- CE approved with European government project experience
- Experienced sales team with 4+ years in turnstile trade
- Competitive pricing with high quality standards
- Custom solutions for access control systems
