Biometric Swing Barrier Gate 0.6s Speed 40 Persons/Min

Large Image : Biometric Swing Barrier Gate 0.6s Speed 40 Persons/Min

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Goldantell
Model Number:	GAT-686

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	$650-800

Contact Now

Detailed Product Description

Sliding Speed:	0.6 Second	Power Supply:	AC 100-240Volt
Lane Width:	50cm,60cm (or Custom70-90cm)	Flow Rates:	35 Or 40 Persons Per Minute

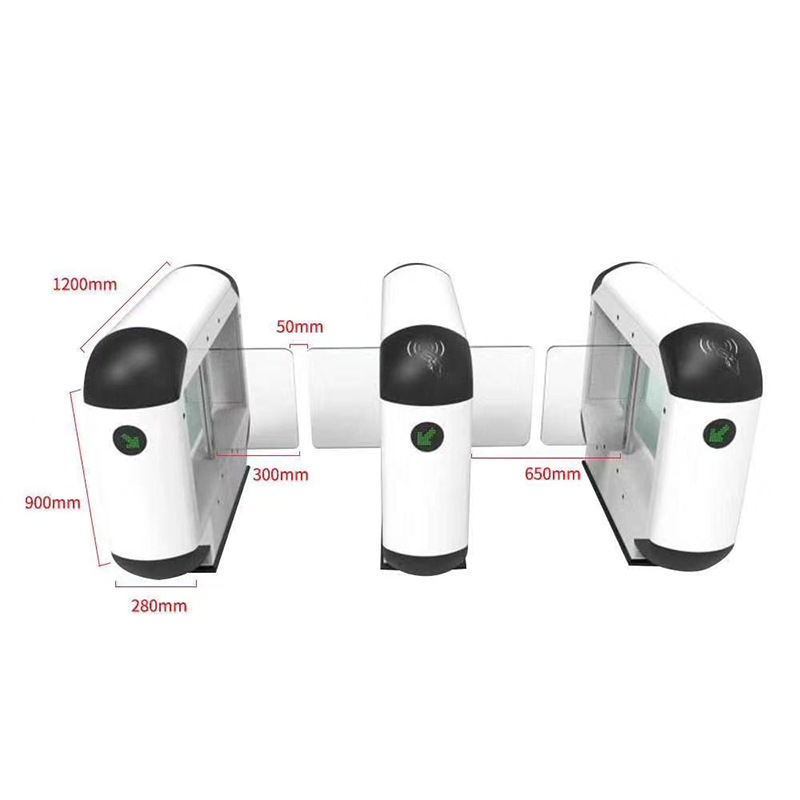

Dimension:	1200 280 900 (mm)	Material:	304, 316 Stainless Steel
Wing Material:	Acrylic Not Glass	Communication:	TCP/IP, RS485
Product Model:	GAT-686	Path Width:	500-600mm (for One Pair)
Direction:	Single Or Bi-directional (optional)	Time Of Opening/closing:	0.6 Second
Pass Speed:	40 Persons/min (open), 25-30 Persons/min (closed)	Reset Time:	10 Seconds
Working Environment:	Indoor/outdoor (with A Tent Over) -10℃~70℃	Drive Motor:	DC24V Brush Motor
Highlight:	biometric swing barrier gate , swing barrier gate 0.6s speed , swing barrier gate 40 persons

Lovely Design RFID Card Facial Access Control Colorful Latex Turnstiles

Product Specifications

Attribute	Value
Sliding Speed	0.6 second
Power supply	AC 100-240Volt
Lane width	50cm,60cm (or custom 70-90cm)
Certificate	CE Approved
Flow Rates	35 or 40 persons per minute
Dimension	1200 280 900 (mm)
Material	304, 316 Stainless Steel
Wing material	Acrylic (not glass)
Communication	TCP/IP, RS485
Type	Biometric Time Recording

Applications

Access Width: 500-900mm (customizable) for comfortable pedestrian passage through the gate.

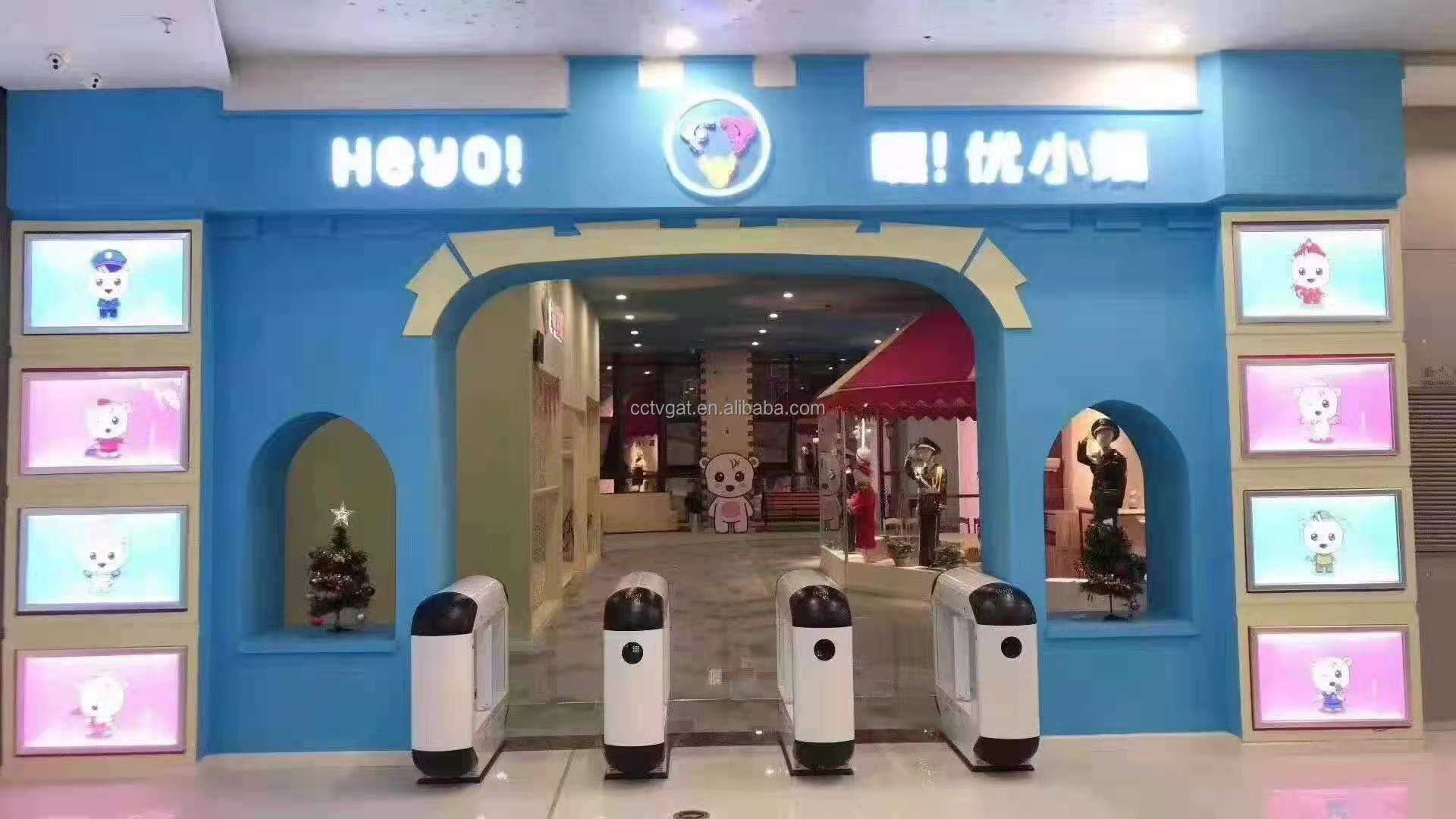

Public Places: Lobby entry, subway, airports, stations, libraries, parks, exhibition halls, stadiums, museums, apartments, offices, commercial buildings
Entertainment Venues: Movie theaters, fitness centers, country clubs, fairgrounds, clubs, swimming pools, gyms
Business Organizations: Hotels, factories, banks, prisons, hospitals, schools, enterprise entrance/exit attendance systems

Features and Functions

Self-diagnosis and alarm system for easy maintenance
Programmable operation via main board keyboard
Safety features to prevent pinching and injury
Light and sound alarms for unauthorized access
Automatic locking until opening signal received
Adjustable door synchronization
Automatic reset function with adjustable timing
Optional LCD information display
Audible operation prompts

Technical Specifications

Type	High speed gate & full automatic Swing Turnstile
Product Model	GAT-686
Product Size	1200280900mm
Path width	500-600mm (for one pair)
Direction	Single or bi-directional (optional)
Opening/Closing Time	0.6 second
Pass speed	40 persons/min (open), 25-30 persons/min (closed)
Reset time after breakdown	10 seconds
Normal running life	3 million cycles
Working environment	Indoor/outdoor (with shelter) -10℃~70℃
Drive motor	DC24V brush motor

Customization Options

Company logo printing for brand visibility
Custom dimensions and shapes to meet specific requirements
Optional LED indicators and LCD display configurations
Special LED light indicators (green for entry)

Goldantell Application Projects: Our experts recommend the most suitable turnstile type based on your installation location to optimize cost and efficiency.
