CE Approved Fast Swing Barrier Gate with RFID QR Code Reader
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension | 1200(L)*300(W)*1000(H)MM | Working Power | AC 110V / 60HZ |
|---|---|---|---|
| Material | 304 Stainless Steel | Steel Thickness | 1.5mm |
| Transit Speed | 30 Persons/minute | Gate Pole Force | 95Kg |
| Input Interface | +12V Level Signal | Communication | RS485, TCP/IP |
| Opening Time | Within 1s | Open Type | Push Button/access Control |
| Passing Direction | Bi-directional Or One Way | Working Temperature | -15°C To +75°C |
| Gross Weight | 70KG | Passage Width | 600mm To 1200mm |
| Support Force | 95Kg | ||
| Highlight | CE approved swing barrier gate,fast swing barrier gate,RFID QR code swing gate |
||
Product Description
CE Approved Fast Speed Entrance & Exit Turnstile Swing Barrier Gate with QR Code & Bar Code RFID Reader
Product Specifications
| Smallest Dimension | 120 × 30 × 100 cm |
| Type | Manual or Semi-automatic / Full Auto |
| Compatible | RFID / Fingerprint / Coin / QR Bar Code |
| Working Power | AC 110V / 60HZ available |
| Material | 304 Stainless Steel |
| Thickness of Steel | 1.5mm or Custom Design |
| Transit Speed | 30 persons per minute |
| Support Force of Gate Pole | 95Kg |
| Input Interface | +12V level signal standard relay |
| Communication | RS485 TCP/IP |
Product Overview
Our CE Approved Fast Speed Swing Barrier Gate provides efficient access control with multiple authentication options including QR code, bar code, and RFID readers. Designed for high-traffic areas requiring secure yet rapid entry/exit management.
Key Features
- Directional LED Optical Signals with Green Arrow/Red Cross indicators
- Built-in fault self-check and alarm functions for easy maintenance
- Specially processed mechanism for enhanced durability
- Always open or close modes with automatic retraction during fire alarms
- Photo Electric Beams standard on all models
- Easy integration with various card systems (Magnetic, Barcode, ID, IC)
Technical Specifications
Item No.: GAT-668
Opening Time: Within 1 second
Size: 1200(L) × 300(W) × 1000(H) mm
Open Type: Push button/Access control
Passing Direction: Bi-directional or one-way
Working Temperature: -15°C to +75°C
Communication: Standard RS485, TCP/IP
Gross Weight: 70KG

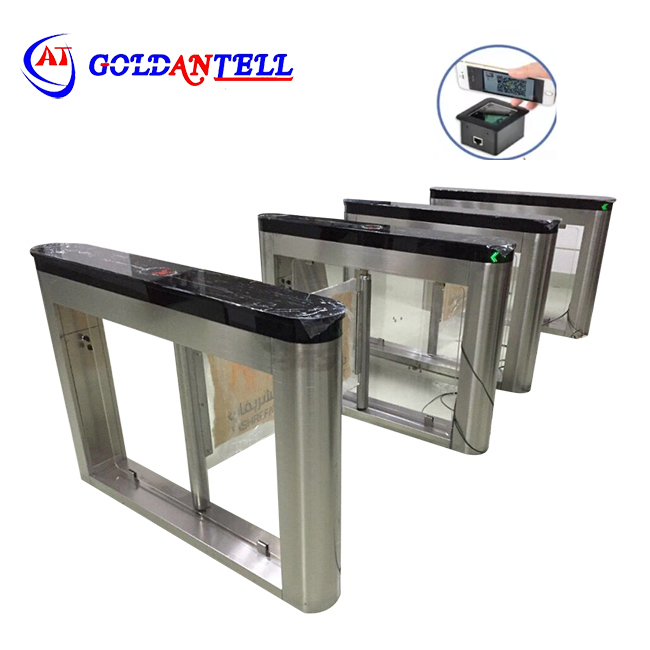

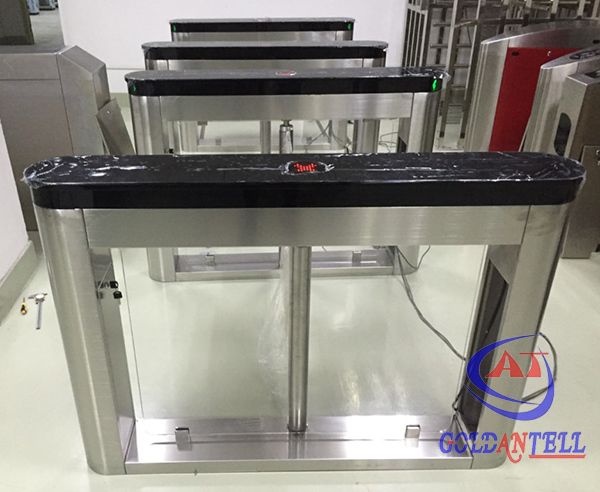

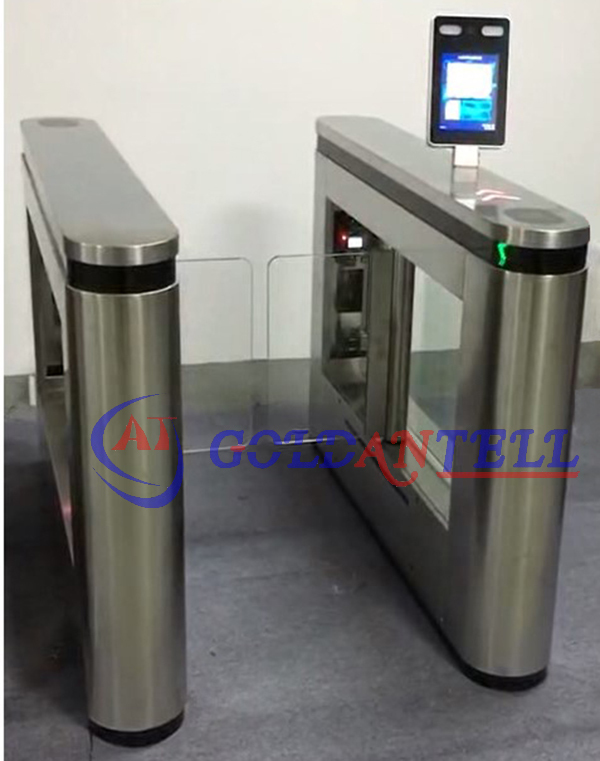

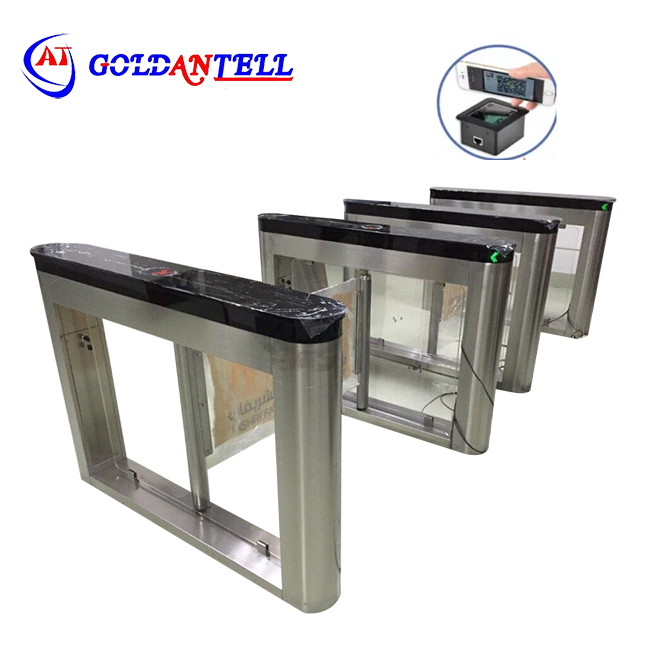

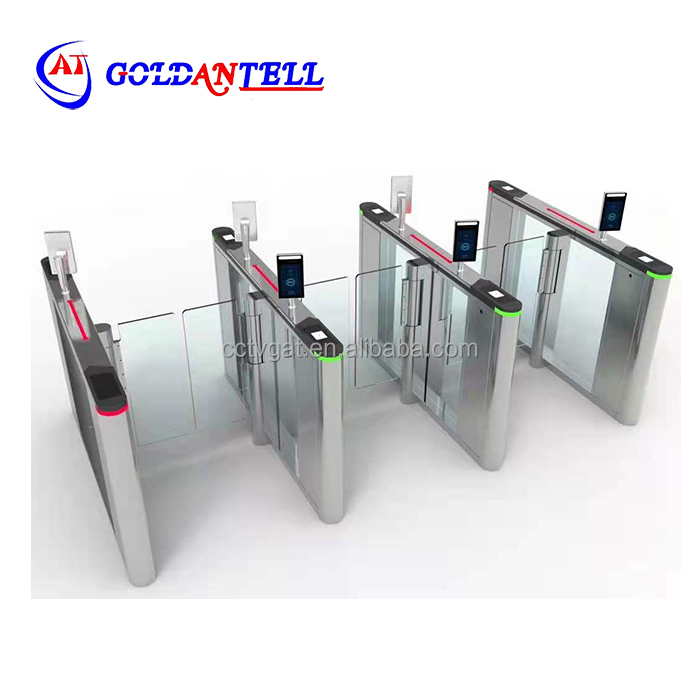

Product Images
Dimensions & Customization
Passage width can be customized from 600mm to 1200mm to suit various installation requirements. Works seamlessly with access control systems including ticket systems (bar code/QR code/2D code) and RFID card control.

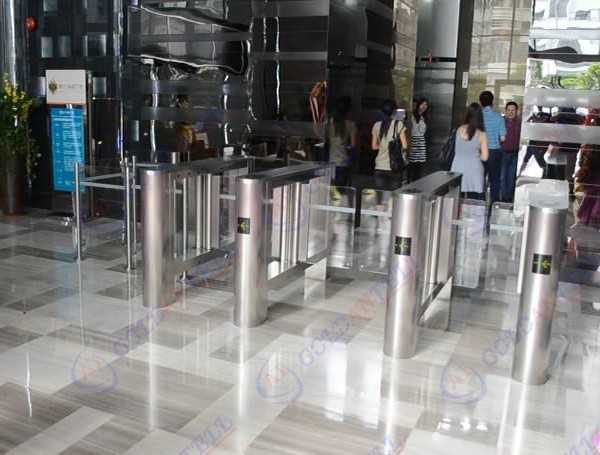

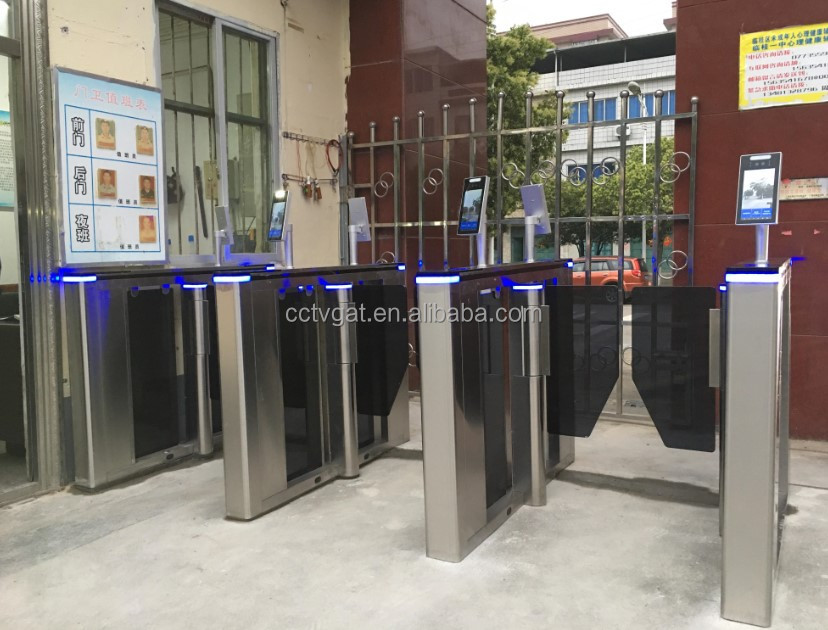

Installation Projects
Manufacturer Information
Shenzhen Goldantell Technology Co., Ltd is a leading exporter of intelligent turnstiles and access control systems since 2007. We provide customized products and OEM services with new designs developed annually.
Global Reach
Our turnstiles have been exported to over 50 countries including USA, Canada, Australia, European nations, Middle East, Southeast Asia, and Africa.
Customer Support
- Pre-sale consultation to understand your specific requirements
- Production updates with photos and testing videos before shipment
- Comprehensive installation and operation guides
- OEM/ODM services including custom logos, sizes, and colors
- 16-hour response time for all inquiries
Shipping & Payment
Delivery Time: 7-15 working days based on quantity
Payment Methods: T/T, LC, Western Union, Escrow, PayPal
Packaging: Carton box + wooden case/crate protection
Custom Orders: 7-12 working days based on requirements
