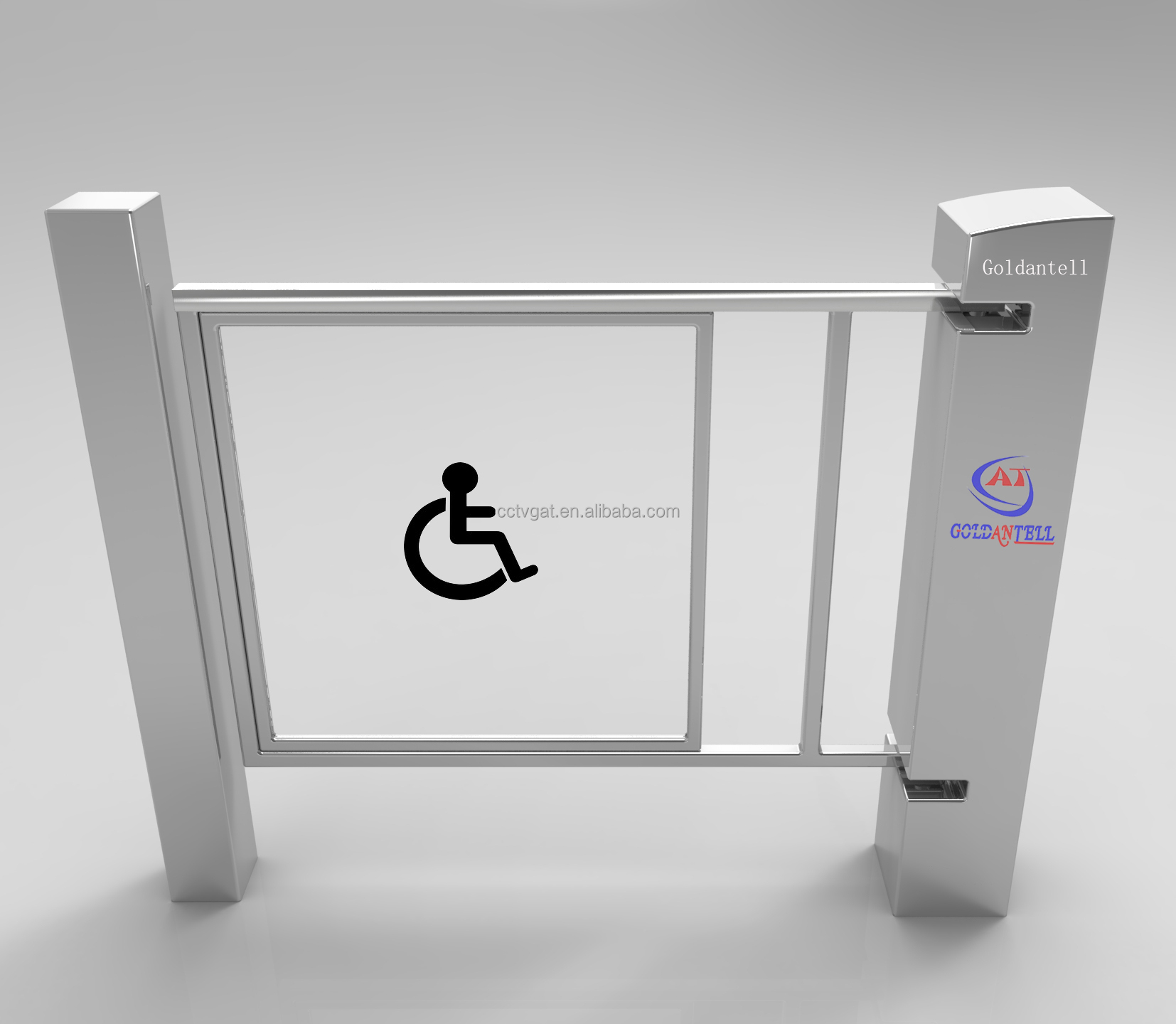

90cm Wide Swing Turnstile Gate with Biometric Access Control

Large Image : 90cm Wide Swing Turnstile Gate with Biometric Access Control

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Goldantell
Model Number:	GAT-686
Document:	Goldantell Turnstile & Faci...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	$720-900

Contact Now

Detailed Product Description

Sliding Speed:	0.6 Second	Power Supply:	AC 100-240Volt
Lane Width:	90cm (or Custom 90~120cm)	Flow Rates:	35 Or 40 Persons Per Minute
Dimension:	1000 300 1000 (mm)	Material:	304, 316 Stainless Steel
Wing Material:	Acrylic Not Glass	Communication:	TCP/IP, RS485
Product Model:	GAT-615	Direction:	Single Or Bi-directional (optional)
Reset Time:	10 Seconds	Running Life:	3 Million
Working Environment:	Indoor/outdoor (with A Tent Over) -10℃~70℃	Drive Motor:	DC24V Brush Motor
Pass Speed:	40 Persons/min (open), 25-30 Persons/min (closed)
Highlight:	90cm wide swing turnstile gate , biometric access control gate , swing barrier gate with biometric

90CM Large Width Access Control Turnstile

OEM/ODM manual remote control turnstile designed for disabled persons and front desk applications with 90cm wide access lane.

Key Specifications

Attribute	Value
Sliding Speed	0.6 second
Power Supply	AC 100-240V
Lane Width	90cm (customizable 90-120cm)
Certification	CE Approved
Flow Rate	35-40 persons/minute
Dimensions	1000 × 300 × 1000mm
Material	304/316 Stainless Steel
Wing Material	Acrylic (not glass)
Communication	TCP/IP, RS485
Type	Biometric Time Recording

Product Features

900mm wide access for comfortable pedestrian passage
Self-examination and alarm function for easy maintenance
Programmable running status via main board keyboard
Anti-pinch safety mechanism
Light and sound alarm for unauthorized access
Automatic locking until opening signal received
Adjustable door synchronization
Automatic reset function with adjustable timing
Optional LCD information display
Audible sound prompts

Technical Specifications

Product Model	GAT-615
Path Width	900mm (for one pair)
Direction	Single or bi-directional (optional)
Opening/Closing Time	0.6 second
Pass Speed	40 persons/min (open), 25-30 persons/min (closed)
Reset Time	10 seconds after breakdown
Operating Life	3 million cycles
Environment	Indoor/outdoor (with cover) -10℃ to 70℃
Drive Motor	DC24V brush motor

Applications

Ideal for various security and access control applications including:

Public spaces: airports, stations, libraries, museums
Commercial buildings: offices, hotels, banks
Institutional facilities: schools, hospitals, prisons
Entertainment venues: theaters, clubs, fitness centers

Product Images

Customization Options

OEM/ODM Services Available:

Company logo printing for brand visibility
Custom dimensions and shapes to meet specific requirements
Adjustable LED indicators and LCD displays
Special LED light indicators (e.g., green for entry)

About Goldantell

Shenzhen Goldantell Technologies Co., Ltd is a leading manufacturer of intelligent turnstile and parking management systems with over 14 years of experience. Our products are exported to more than 50 countries worldwide.
