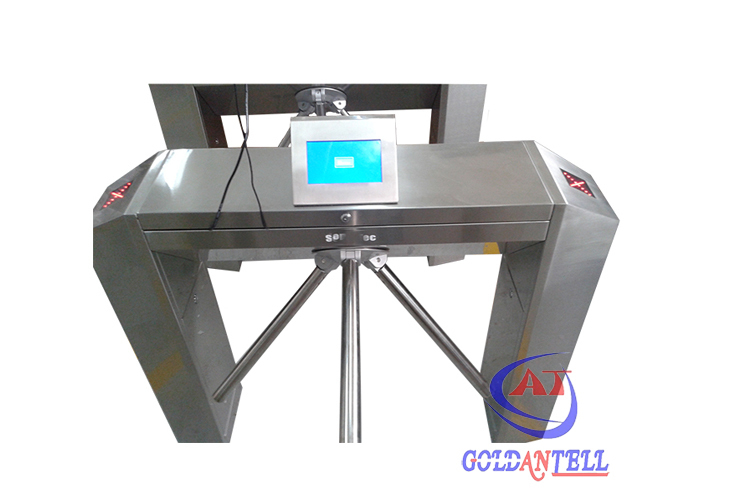

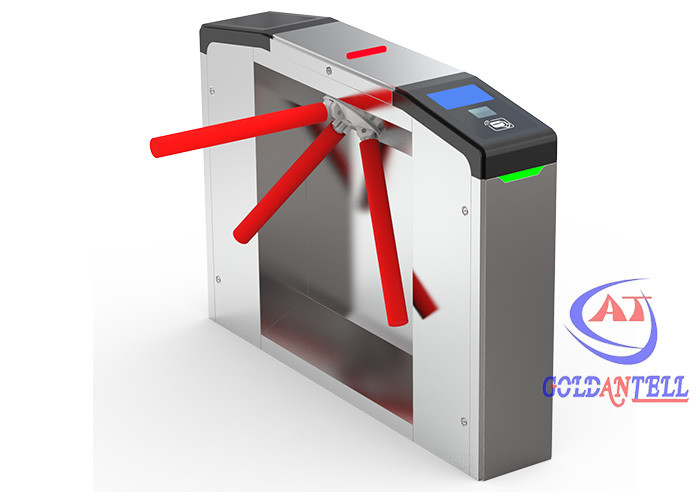

Tripod Turnstile Gate with DC Brushless Motor 600mm Passage

Large Image : Tripod Turnstile Gate with DC Brushless Motor 600mm Passage

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE certificate
Model Number:	GAT-DT301 series

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	closed wooden case
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T,western Union,LC,Paypal
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Application:	Company,hotel,airport	Power Supply:	110~240 V(AC)
Direction:	In Or Out, Or Two Ways	Warranty:	1 Year
Odm/oem:	Accepted	Passage Width:	600mm
Motor:	DC Brushless Motor
Highlight:	tripod turnstile gate with DC motor , 600mm passage turnstile gate , brushless motor tripod turnstile

Factory Direct Price Tripod Turnstile Gate OEM/ODM Service

Product Attributes

Attribute	Value
Application	Company, hotel, airport
Power supply	110~240 V(AC)
Direction	In or out, or two ways
Warranty	1 year
ODM/OEM	Accepted
Passage width	600mm
Motor	DC Brushless motor

Product Description

Tripod turnstile gate is compact and cost-effective entrance solutions.
The body is made of brushed stainless steel which is robust, rigid, anti-rust, and durable.
Tripod turnstile gate is ideal for indoor and outdoor settings.
It can be integrated with any kind of access controller system (e.g.: face recognition terminal, QR code scanner, RFID device, Push button, Fingerprint and Bio-metric device).
In case of emergency, the tripod turnstile gate will drop down automatically when power off.

Technology Parameters

Size	1200/1400mm (L) * 280mm (W) * 1000mm (H)
Working voltage	AC110/220±10%V, 50±10%HZ
Working movement	DC24V solenoid valve
Arm width	510 mm
Support force of arm	60kg
Passage width	≤600 mm
Time of opening	0.2 second
Pass speed	30 persons/min
Emergence	When power off, arms open automatically
Normal running life	3 million
LED light	Direction arrow
Direction	Single or bi-directional (optional)
Working environment	Indoor/outdoor (with a tent over) -10℃~70℃
Relative humidity	≤90% coagulation free
Communication interface	Standard RS485 interface, distance ≤1200m
Housing material	Domestic standard 304# stainless steel
Input interface	+12V level signal or pulse width>100ms 12V pulse, drive current>10mA

Features & Functions

Auto replacement function, re-position after person pass by.
Anti-tail function auto-lock once turn120° or 60°.
Arms auto drop when power off, ensure unblocked when accident.
Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work.
Diverse control mode optional, changeable due to varying, convenient for your manage.

Application Locations

Public Places: Lobby entry, Subway, Airports, Stations, Library, Bookstores, Parks, Exhibition halls, Stadium, Museums, Apartments, Residence Area, Offices, Commercial buildings.
Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall, Fitness Gym.
Business Organizations: Hotel, Factory, Bank, Prison, Hospital, School, Enterprise's Entrance and Exit Attendance.

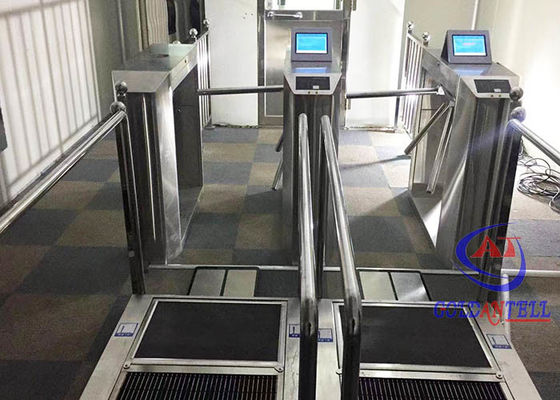

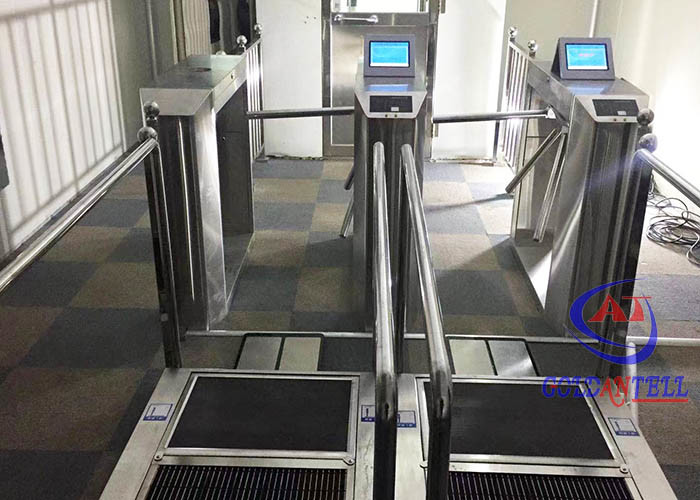

Details Photos

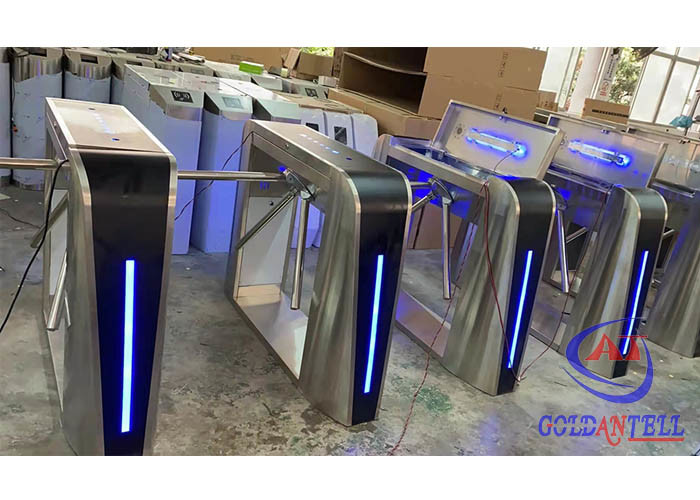

Factory Photos

Frequently Asked Questions

What types of turnstiles are available?

We offer: Tripod Turnstiles (Basic, cost-effective entry control), Full-Height Turnstiles (High security, anti-climb design), Optical Turnstiles (Flap Barriers - Touchless, fast throughput), Waist-High Turnstiles (Balanced security and accessibility).

How do turnstiles integrate with access control systems?

Turnstiles can connect to: RFID/Card Readers, Biometric Scanners (fingerprint, facial recognition), Mobile Access (Bluetooth, NFC), Ticketing Systems (for metro, stadiums, etc.).

Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

What is your sample policy?

We offer samples if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Do you test all your goods before delivery?

Yes, we have the 100% test before delivery, and will provide a testing video for your confirmation before shipment.
