| 1 |

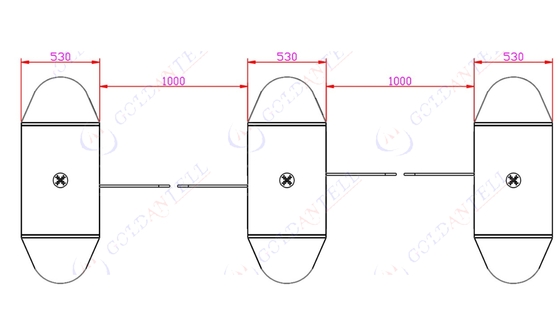

Cabinet dimension |
1400 (L) x 530 (W) x 1000 (H) mm
or customzied size
|
| 2 |
Cabinet material |
304 stainless steel (SUS316 can be custom-made) |
| 3 |
Lane length |
normally 600 mm
(can be custom-made up to the 900mm )
|
| 4 |
Opening/closing time |
0.6s |
| 5 |
Passing Direction |
single in/out or Bidirectional |
| 6 |
Drive Motor |
standard DC 24 V brush motor ( or brushless motor or Servo motor ) |
| 7 |
Access Readers |
rfid cards , fingerprint, Barcode ,ticket scanners |
| 8 |
LED light |
optional |
| 9 |
More Optional function |
coin controller, counter , sound alarm, speakers |
| 10 |
Normal running times |
3 million |
| 11 |
Reset time after break down |
default 5s,can be changed to fit different demands |
| 12 |
IR sensors |
standard 6 pairs, 8 pairs, 10 pairs, etc.
customized 12 pairs,14 pairs.
|

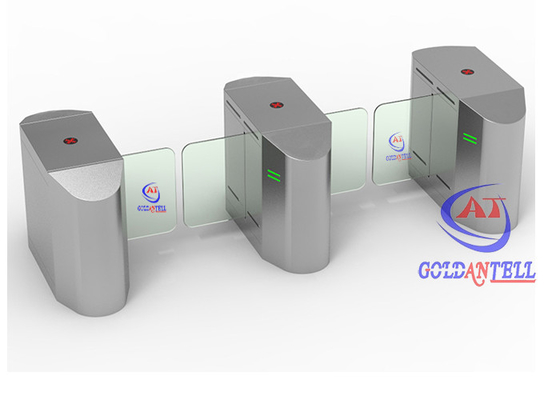

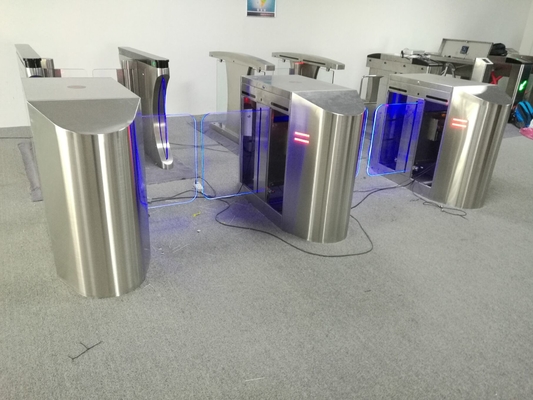

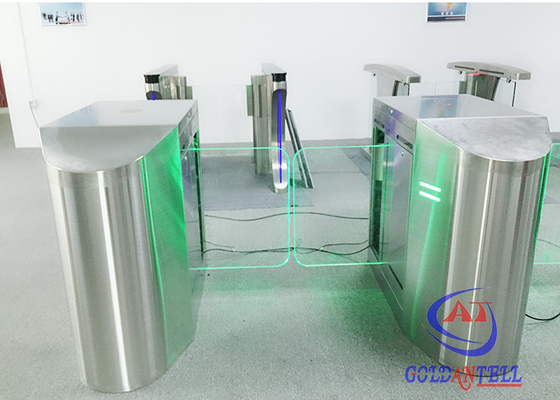

Decriptions of Automatic Systems Speed Gates
1) Automatic Systems Speed Gates can be compatible with face thermal detection, NFC/RFID card, QR code/ ticket scanner, ESD tester,
fingerprint reader access control device used for staff, provide civilized , orderly access methods.
2) LCD screen: optional, supply more options for system requirement.
3) Higher flow rate and better anti-tailgate functions.
4) Single core (movement) structure or dual core (double movement) structure is equipped for different installation requirements.
5) Single wing or double wings structure is equipped for different requirements regarding Lane width.
6) Double protections of Mechanical and infrared anti-pinch function, providing more reliable and safer passing.
Projects of Automatic Systems Speed Gates
- subway station,
- office building ,
- university
- clubs,
- intelligent community ,
- airports,
- railway stations ,
- docks,
- factories,
- scenic spots,
- parks,
- student dormitories,
- pedestrian passages,
- labs
1. Rapid identification technique, available to identify accurately and efficiently thefacial recognition system,
magnetic card, bar code card, ID card and IC card.
2. DC Brushless Motor, Maintenance Free
3. Auto-lift-arm function: the arm can lift automatically with alert when the power is on again.
4. Auto-drop-arm function: the arm can drop down automatically (default) (or free passing) when the power is off.
5. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you)
Advantages of of Automatic Systems Speed Gates
1-We have professional designer,we can do OEM and ODM.
2-CE approved, very successful experiences with European government projects.
3-24 months quality guaranttee!
Packing of of Automatic Systems Speed Gates
1. Inside with a carton package.Then outside,there are 2 kinds of packages under your choice:
2. crate package and closed wooden package optional.
3. if <10pc, ship in 7 working days ; > 50, ship in 10-15 working days; For customized product, need 2-3 longer working days.
Service of of Automatic Systems Speed Gates
1. Security solution provider, can help you save time and costs.
2 .Good quality with competitive price, offer OEM and ODM service.
3. Professional technical supports and great after-sales service.
4. Custom design shape and logo,for large amount, custom logo available for free.
5. Fastest delivery and safe shipping way.
6. Warranty: One year Warranty, from the date of delivery, a lifetime technical support.
7. Feedback quickly: 24 hours online service and reply your inquiry within 8 hours.We could provide Online supports for you when need supports on testing.
FAQ of of Automatic Systems Speed Gates
Q1. What is your terms of packing of automatic systems speed gates?
A: Firstly, we will pack our goods by protective film. Then we will put it in a neutral cartons. Third,we will pack it in standard export wooden case to protect the goods perfectly.
Q2. What is your terms of payment?
A: TT,Western union or L/C.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF,DDU,DDP,etc.
Q4. How about your delivery time?
A: Generally, for small quantity it will take about 7-9 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can do OEM or ODM.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
