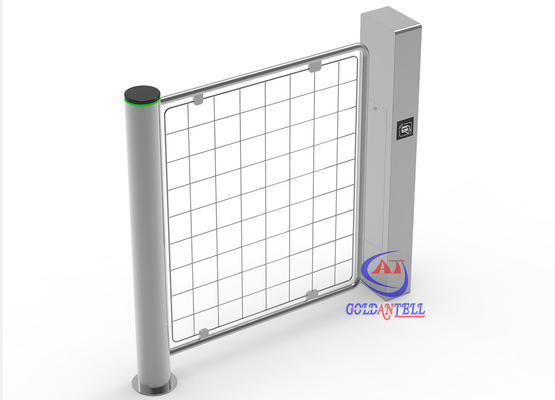

Intelligent Swing Barrier Gate with Face and Temperature Recognition for Supermarket
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-612 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Identification Speed | Face Detection And Tracking 20 Ms | Identification Height | 1.2-2.2 M |
|---|---|---|---|
| Wiegand Format | 26/34 | Size Of Product | 1628*168 |
| Passage Width | 900 To 1200mm For Option | Application | Health Projects,hotel,canteens, Hospitals, Office Buildings, Customs, Agencies, Tourist Attractions, Factories |
| Highlight | Temperature Recognition Swing Barrier Gate,Supermarket Swing Barrier Gate,Intelligent Swing Barrier Gate |
||
Product Description
Intelligent Swing Barrier Gate with Face and Temperature Recognition for Supermarket
Specifications of Intelligent Swing Barrier Gate
| Technical parameters of Face recognition terminal | |
| Size | 253*139*26.5 MM (length*width*height) |
| Appearance Material | Aluminum alloy case, tempered glass panel |
| Display monitor | 8 inches LCD screen |
| Identification distance | |
| Technical parameters of Intelligent Swing Barrier Gate | |
| Size of housing: | 1200mm (H) * 168mm (Diameter) * 900-1200mm (W) |
| Pass through width | widely 60 /90cm ,or (120cm and custom-made) for a pair |
| Pass speed: | 40 persons/min (open), 25-30 persons/min (closed) |
| Drive motor: | standard DC 24 V brush motor ( or custom brushless) |
| Normal running life: | 3 million |
| Time of opening/closing: | 0.6 second |
| Time to work after power on: | 3 seconds |
| Reset time after break down: | 10 seconds |
| Direction: | single or bi-directional (optional) |
| Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: | standard RS 485 interface, distance ≤1200m |
| Input interface: | +12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
| Relative humidity: | ≤90% coagulation free |
| Housing material: | domestic standard 304 # stainless steel |
| Working voltage: | AC220±10%V 50±10%HZ |
Size of Intelligent Swing Barrier Gate
Description of Intelligent Swing Barrier Gate
◊ Face and temperature recognition device is one of the world's top thermal imaging thermometer modules, The equipment uses thermal imaging to detect the overall temperature distribution of the face for temperature calculation, Has greatly increased the human body temperature fast accurate contactless screening.
◊ At the same time using near infrared in vivo detection and visible light face recognition technology cross application, In vivo detection efficiency and face recognition accuracy are greatly improved.
◊ System Integration, this equipment is subtly integrated with machine, electronics, micro- processor control and ID identification, provides convenience for the use of card reader identification equipment, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipment and adopting fair, reliable security protection, alarming equipment and direction indicating equipment.
Access control system of Intelligent Swing Barrier Gate
1. multiple access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2. support special function: counter, coin- operation.
3. ESD tester system and function.
Function& features of Intelligent Swing Barrier Gate
1. Support face recognition field photo preservation;
2. Support serial port, Wigan output, output content support configuration;
3. Supports offline LAN equipment deployment and online HTTP transmission cloud deployment;
4. All-black environment ir face detection after complementary recognition;
Project Example of Intelligent Swing Barrier Gate
a. Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall,Fitness Gym.
b. Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendan
1. Friendly and professional customer service people help you in 16 hours.
2. More than 17 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
