Customized OEM Security Turnstile Gate Single Gate 304 Standard Stainless Steel

  • Customized OEM Security Turnstile Gate Single Gate 304 Standard Stainless Steel
  • Customized OEM Security Turnstile Gate Single Gate 304 Standard Stainless Steel
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-620 custom series
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CE Approved Communication RS485 TCP/IP
Dimension Pole Diameter 168mm, Height 1050mm Power Supply AC220V/110V
Panel Material Acrylic, Glass Or Steel Pass Speed 30 Persons/min
Highlight

OEM Security Turnstile Gate

,

304 SS Security Turnstile Gate
Leave a Message
Product Description
Customized OEM Security Turnstile Gate Single Gate 304 Standard Stainless Steel
304 Standard Stainless Steel Customized OEM High Security security pass gate single gate for people
Description Of Security Turnstiles
  • Bi-directional or single-way optional
  • Silk printing logo: Available
  • Built-in mechanical lock to prevent forced opening of arms
  • Panel swing Material: Stainless steel /Acrylic plate / tempered glass are optional
  • Widely used in Commercial Buildings, Airports, Metro Stations, Libraries, Factories, Exhibition Centers, Gyms, and Government Institutions
  • This turnstile with swing panels is designed in a modern and elegant style and provides an ideal contactless solution for access control at sites with high aesthetic and comfort requirements
Specification Of Security Turnstiles
1 Cabinet dimension diameter of pillar is 168mm, the height is 1050mm
2 Cabinet material 304 stainless steel (316 ss can be custom-made)
3 Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
4 opening/closing time 0.2s
5 Arm material thickness 10mm Acrylic, or tempered glass or steel
6 Access mode single in/out or Bidirectional
7 Passthrough Width 550 mm - 1800 mm for a pair or 60-90mm for a pc
8 Swing arm angle 180 degree
9 Communication interface RS485, TCP/IP
10 Time of opening/closing 1 second
11 Optimal flow rate 40 persons/min (open), 35 persons/min (closed)
12 Reset time after break down default 10s can be changed to fit different demands
13 MCBF 5,000,000 Cycles
14 Working humidity 30%~95%
Features Of Security Turnstiles
  • Fast opening and closing time
  • Problem-self-checking function
  • Long service life with low operational cost
  • Anti-Tail gaiting feature built in to prevent unauthorized entry
  • When the power off, arm open automatically and power on again, the arm will be held automatically
  • Work with RFID/NFC card access control, or can be open by button, remote controller, etc
Projects Of Security Turnstiles
Exhibition halls, Commercial buildings, Parks, Offices, Public Places, Stadium, Library, Museums

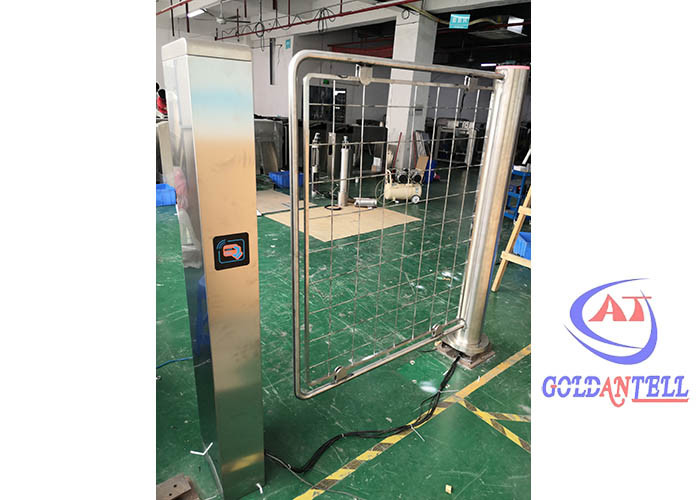

Photos Of Security Turnstiles
Customized OEM Security Turnstile Gate Single Gate 304 Standard Stainless Steel 0
Drawing Of Security Turnstiles
Ref to this design, we can customize the Height & Width of passageway.
Customized OEM Security Turnstile Gate Single Gate 304 Standard Stainless Steel 1
Our Advantages Of Security Turnstiles
  1. We Focus on Turnstile for more than 13 years
  2. We do customize Service. OEM, OEM is available
  3. We Optimize For Lower Cost, remove unnecessary features/use mould design, save your money!
  4. We Timely Response every customer! Response to customers whoever did business with us in 3mins, and assist with project solutions later
FAQ Of Security Turnstiles
Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
How does your factory control the quality?
Vivian: Quality control from the beginning to the ending.
Can your machines be used outside?
Vivian: With waterproof function, could be used outside.
How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
Custom Options Of Security Turnstiles
  • The dimension of swing panels could be custom-made
  • Can add visible-color LED lighting for glass panels, like green, blue, red, etc
  • The material of swing panels can be steel / acrylic / tempered glass. So you can charge our standard swing panels if they have a special requirement
Installation Ways Of Security Turnstiles
1. Use independently, as shown below. Also, the swing panels can be replaced with steel material, also the size can be custom-made.
2. Use together with another access column which can be integrated with different recognition terminal, such as RFID card reader/ barcode scanner/ fingerprint reader/ face recognition, etc.
i). QR code, 1&2D barcode or ticket scanner;
ii). RFID cards, wristband,token, button, etc.
iii). Fingerprint.
iv) facial recognition.
