Hotel Face Recognition Swing Barrier Gate Bidirectional Bar Code Entry Door
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-206 |
| Document | Different ESD Tester turnst...ll.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size Of Product | 1200*280*1000mm | Package Size | 1280*370*1070mm |
|---|---|---|---|
| Application | Indoor&outdoor | Net Weight | 65KG |
| Gross Weight | 70KG | Communication Port | RS485 ,TCP/IP |
| Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Material | 304 Stainless Steel/316 Stainless Steel |
| Highlight | Bidirectional Swing Barrier Gate,Face Recognition Swing Barrier Gate |
||
Product Description
Hotel Face Recognition Swing Barrier Gate Bidirectional Bar Code Entry Door
Hot sales Hotel Bidirectional bar code entry door Access Control System Face Recognize Swing Barrier Gate
Description
- Flap barrier gate can be integrated with ESD tester system or other access control systems like facial recognition for staff, providing civilized orderly access methods.
- ESD equipment can be quickly tested, with three independent devices (Left Shoes, Right Shoes, Wrist Strap) completely ESD tested at one time.
- LCD screen: optional, providing more options for system requirements.
- Single core (movement) structure or dual core (double movement) structure available for different installation requirements.
- Higher flow rate and enhanced anti-tailgate functions.
- Double protections of mechanical and infrared anti-pinch function, ensuring more reliable and safer passage.
Specifications
| Item | Details |
|---|---|
| Name | Bridge type flap turnstile |
| Size | 1200mm (L) * 280mm (W) * 1000mm (H) |
| Retractable arm length | 260 mm |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width | ≤600mm |
| Normal running life | 3 million |
| Time of opening/closing | 0.6 second |
| Time to work after power on | 3 seconds |
| Reset time after break down | 10 seconds |
| Direction | Single or bi-directional (optional) |
| Drive motor | DC 24 V brush motor |
| Working environment | Indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface | Standard RS 485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
| Relative humidity | ≤90% coagulation free |
| Housing material | Domestic standard 304 # stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
Function & Features
- Infrared reset function (Optional:4 pairs or 6 pairs Infrared). Infrared induction clamp function.
- The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
- Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance.
- Selectable normally open or close mode to effectively divert passenger flow.
- Humanized setting function for reset of overtime passing.
- Direct management and remote control of turnstile via computer.
- Flashing light prompt function for easy problem identification by administrative staff.
Special Function
- LED counting function
- Box house can lengthen, swing arm lengthen
- Infrared logical judgment function (optional 8 pairs or 10 pairs Infrared) with Voice Prompt Function
- Adjustable normally open or closed modes to meet different location requirements
- Sound and light alarm prompt functions
- Stroboscopic lamp prompt function for quick problem identification

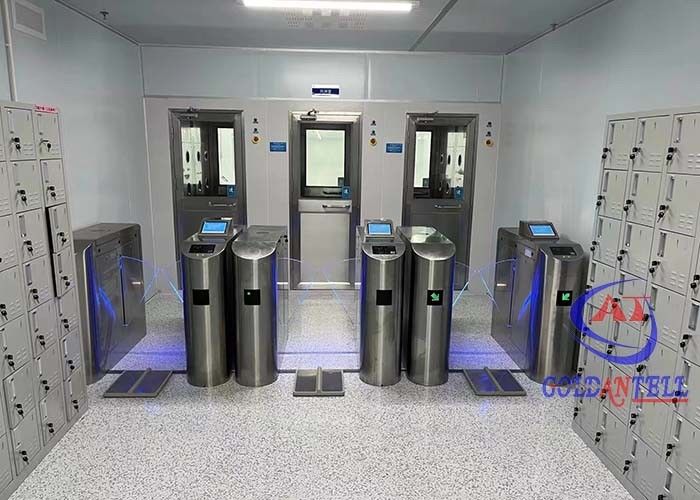

Product Photos
Project Example
- Movie theaters
- Fitness halls
- Country clubs
- Fairground
- Clubs
- Swimming Hall
- Fitness Gym
- Hotel
- Factory
- Bank
- Hospital
- School
FAQ
How about your package?
Seaworthy wooden case + Foam.
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment.
How about the lead time?
Regular products need 5-8 working days. The customized products need 9-13 working days.
Competitive Advantage
- Friendly and professional customer service available 16 hours daily.
- Over 10 years of ODM/OEM experience with custom product design, logo, and packaging capabilities.
- Complete solution provider including product and system software management to save time and cost.
- Special repair service: No product return needed - video diagnosis with free spare parts replacement within 1 year.
Access Control Ways
- Multiple access control systems available: fingerprint/face recognition/card reader/QR code/barcode ticket system.
- Special functions supported: counter, coin-operation.
- ESD tester system and function integration.
