Outdoor Event FCC Swing Gate Turnstile Full Automatic 316 Stainless Steel

  • Outdoor Event FCC Swing Gate Turnstile Full Automatic 316 Stainless Steel
  • Outdoor Event FCC Swing Gate Turnstile Full Automatic 316 Stainless Steel
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-689
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Of Product 1200*200*1000mm Package Size 1280*370*1070mm
Application Indoor&outdoor Net Weight 65KG
Gross Weight 70KG Communication Port RS485 ,TCP/IP
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Material 304 Stainless Steel/316 Stainless Steel
Highlight

fcc swing gate turnstile

,

316 stainless steel swing gate turnstile
Leave a Message
Product Description
Outdoor Event FCC Swing Gate Turnstile Full Automatic 316 Stainless Steel
Outdoor event full automatic swing turnstile with QR gate functionality, supporting ticket barcode scanning with single barrier design.
Description of Pedestrian Swing Gate
  • Integrated with access control systems including facial recognition for staff management
  • ESD equipment testing capability for three independent devices simultaneously
  • Optional LCD screen for enhanced system functionality
  • Available in single core (movement) or dual core (double movement) structures
  • High flow rate with advanced anti-tailgate functions
  • Dual protection with mechanical and infrared anti-pinch safety features
Specifications of Pedestrian Swing Gate
Item Details
Model Single motor or double motors
Name Bridge type flap turnstile
Size 1200mm (L) * 200mm (W) * 1000mm (H)
Retractable arm length 260 mm
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after break down 10 seconds
Direction Single or bi-directional (optional)
Drive motor DC 24 V brush motor
Working environment Indoor/outdoor (with tent), -10℃～70℃
Communication interface Standard RS 485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA
Relative humidity ≤90% (non-condensing)
Housing material 304 # stainless steel
Working voltage AC220±10%V 50±10%HZ
Functions & Features of Pedestrian Swing Gate
  • Optional infrared reset function (4 or 6 pairs infrared sensors)
  • Bi-directional operation capability
  • Real-time self-diagnosis and alarm indication
  • Configurable normally open/close modes for passenger flow control
  • Adjustable timeout reset function
  • Remote management capability via computer
  • Flashing light prompt for maintenance identification

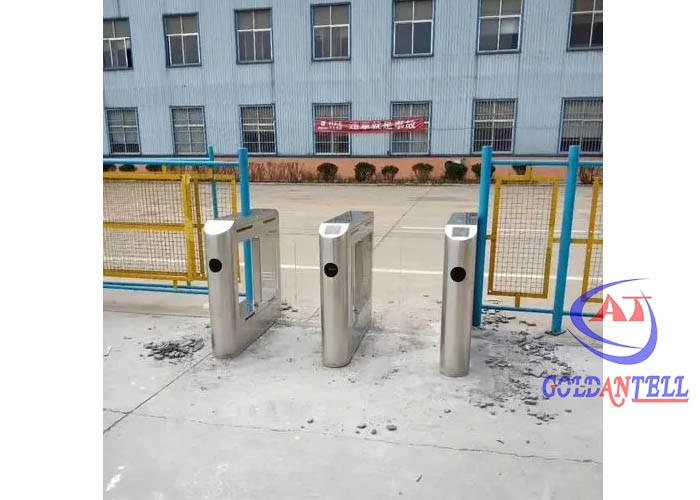

Product Photos of Pedestrian Swing Gate
Outdoor Event FCC Swing Gate Turnstile Full Automatic 316 Stainless Steel 0
Project Applications
Movie theaters
Fitness halls
Country clubs
Fairgrounds
Clubs
Swimming halls
Fitness gyms
Hotels
Factories
Banks
Hospitals
Schools
Frequently Asked Questions
How about your package?
Seaworthy wooden case with protective foam.
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment.
How about the lead time?
Regular products: 5-8 working days. Customized products: 9-13 working days.
Service Commitment
  • 16-hour professional customer service response
  • 10+ years ODM/OEM experience with custom design capabilities
  • Complete system software management solutions
  • Remote troubleshooting support with spare parts replacement
Product Advantages
  • Comprehensive security solutions provider
  • Competitive pricing with OEM/ODM services
  • Professional technical support and after-sales service
  • Custom design options available for bulk orders
  • Fast delivery with multiple shipping options
  • 1-year warranty with lifetime technical support
  • 24-hour online support with quick response times
Access Control Options
  • Multiple access control systems: fingerprint, face recognition, card reader, QR code, barcode ticket
  • Special functions: counter operation, coin operation
  • ESD tester system integration
