Pedestrian Swing Gate Barrier Portable Face Recognition Optical Access Control Turnstile

  • Pedestrian Swing Gate Barrier Portable Face Recognition Optical Access Control Turnstile
  • Pedestrian Swing Gate Barrier Portable Face Recognition Optical Access Control Turnstile
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-689
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Of Product 1200*200*1000mm Package Size 1280*370*1070mm
Application Indoor&outdoor Net Weight 65KG
Gross Weight 70KG Communication Port RS485 ,TCP/IP
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Material 304 Stainless Steel/316 Stainless Steel
Highlight

Pedestrian Swing Barrier Gate

,

Face Recognition Access Control Turnstile

,

Optical Access Control Turnstile
Leave a Message
Product Description
Pedestrian Swing Gate Barrier Portable Face Recognition Optical Access Control Turnstile
Pedestrian Swing Gate Portable Elegant Mechanism Face Recognition Pedestrian Optical Access Control Barrier
Description Of Pedestrian Swing Gate
  • Flap barrier gate can be integrated with access control system like facial recognition for staff, providing civilized orderly access methods
  • ESD equipment can be quickly tested, with three independent devices (Left Shoes, Right Shoes, Wrist Strap) completely ESD tested at one time
  • LCD screen: optional, provides more options for system requirements
  • Single core (movement) structure or dual core (double movement) structure available for different installation requirements
  • Higher flow rate and enhanced anti-tailgate functions
  • Double protections of mechanical and infrared anti-pinch function for more reliable and safer passage
Specifications Of Pedestrian Swing Gate
Item Details
Name Bridge type flap turnstile
Size 1200mm (L) * 200mm (W) * 1000mm (H)
Retractable arm length 260 mm
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after break down 10 seconds
Direction Single or bi-directional (optional)
Drive motor DC 24 V brush motor
Working environment Indoor/outdoor (with a tent over) -10℃～70℃
Communication interface Standard RS 485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA
Relative humidity ≤90% coagulation free
Housing material Domestic standard 304 # stainless steel
Working voltage AC220±10%V 50±10%HZ
Function & Features Of Pedestrian Swing Gate
  • Infrared reset function (Optional:4 pairs or 6 pairs Infrared) with infrared induction clamp function
  • Bidirectional operation (pedestrian can enter and exit from one pair of turnstiles)
  • Real time trouble self-detect and alarm indication for system safety and maintenance
  • Selectable normally open or close mode for effective passenger flow diversion
  • Humanized setting function for reset of overtime passing
  • Remote management and control capability via computer
  • Flashing light prompt function for easy problem identification by staff

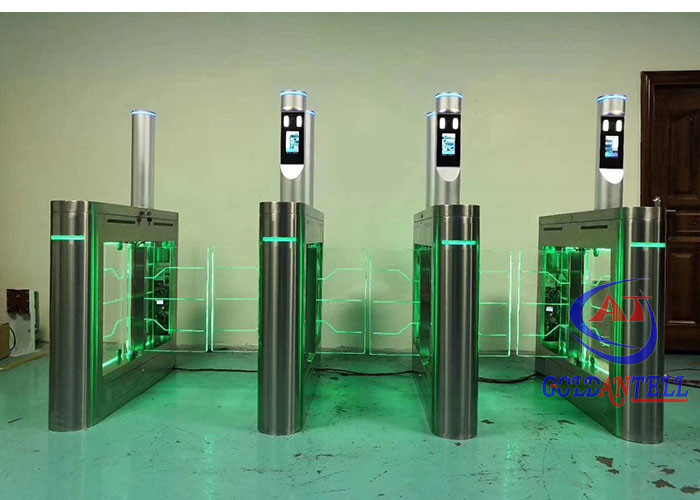

Product Photos Of Pedestrian Swing Gate
Pedestrian Swing Gate Barrier Portable Face Recognition Optical Access Control Turnstile 0
Project Applications Of Pedestrian Swing Gate
Movie theaters Fitness halls Country clubs Fairground Clubs Swimming Hall Fitness Gym Hotel Factory Bank Hospital School
FAQ Of Pedestrian Swing Gate
How about your package?
Seaworthy wooden case + Foam
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment
How about the lead time?
Regular products need 5-8 working days. The customized products need 9-13 working days
Service Of Pedestrian Swing Gate
  • Friendly and professional customer service available within 16 hours
  • Over 10 years of ODM/OEM capability including product shape design, custom logo, and custom packaging
  • Comprehensive solutions including both product and system software management to save time and costs
  • Special repair service: No product return needed - just provide a video and our engineers will guide you. Damaged spare parts within 1 year will be shipped at no cost to you
Advantage Of Pedestrian Swing Gate
  • Security solution provider helping save time and costs
  • High quality with competitive pricing, offering OEM and ODM services
  • Professional technical support and excellent after-sales service
  • Custom design shape and logo options, with free custom logo for large orders
  • Fast delivery and safe shipping methods
  • One year warranty from delivery date with lifetime technical support
  • Quick response: 24 hour online service with replies within 8 hours and online testing support available
Access Control Ways Of Pedestrian Swing Gate
  • Multiple access control systems available: fingerprint/face recognition/card reader/QR code/barcode ticket system
  • Special functions supported: counter, coin-operation
  • ESD tester system and function available
