Heavy Duty Entrance Turnstile Security Doors Stainless Steel Bidirectional Robust Barrier
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-601 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size Of Product | 1200*280*1000mm | Package Size | 1280*370*1070mm |
|---|---|---|---|
| Application | Indoor&outdoor | Net Weight | 65KG |
| Gross Weight | 70KG | Communication Port | RS485 ,TCP/IP |
| Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Material | 304 Stainless Steel/316 Stainless Steel |
| Highlight | Bidirectional Swing Barrier Turnstile,Robust Swing Barrier Turnstile,Stainless Steel Swing Barrier Turnstile |
||
Product Description
Heavy Duty Entrance Turnstile Security Doors Stainless Steel Bidirectional Robust Barrier
Product Description
Heavy Duty Entrance Turnstile Security Doors with CE Certification, featuring stainless steel bidirectional robust barrier mechanism.
Key Features
- Integration with access control systems including facial recognition for staff management
- ESD equipment testing capability for three independent devices simultaneously
- Optional LCD screen for enhanced system requirements
- Available in single core (movement) or dual core (double movement) structures
- High flow rate with advanced anti-tailgate functions
- Double protection with mechanical and infrared anti-pinch safety features
Technical Specifications
| Item | Specification |
|---|---|
| Name | Bridge type flap turnstile |
| Size | 1200mm (L) * 280mm (W) * 1000mm (H) |
| Retractable arm length | 260 mm |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width | ≤600mm |
| Normal running life | 3 million cycles |
| Time of opening/closing | 0.6 second |
| Time to work after power on | 3 seconds |
| Reset time after break down | 10 seconds |
| Direction | Single or bi-directional (optional) |
| Drive motor | DC 24 V brush motor |
| Working environment | Indoor/outdoor (with tent), -10℃～70℃ |
| Communication interface | Standard RS 485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA |
| Relative humidity | ≤90% (non-condensing) |
| Housing material | 304 # stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
Advanced Functions
- Infrared reset function with optional 4 or 6 pairs of infrared sensors
- Bidirectional operation allowing entry and exit through single turnstile
- Real-time self-diagnosis and alarm indication for system safety
- Configurable normally open/close modes for passenger flow control
- Humanized timeout reset setting function
- Remote management capability via computer
- Flashing light prompt for easy problem identification

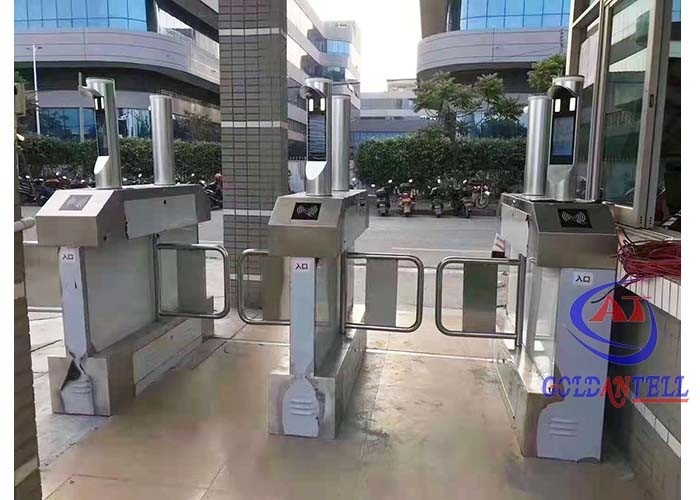

Product Image
Typical Applications
- Movie theaters
- Fitness halls and gyms
- Country clubs
- Fairgrounds
- Night clubs
- Swimming pools
- Hotels
- Factories
- Banks
- Hospitals
- Schools
Frequently Asked Questions
How about your package?
Seaworthy wooden case with foam protection.
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment.
How about the lead time?
Regular products: 5-8 working days. Customized products: 9-13 working days.
Our Services
- 16-hour professional customer support
- 10+ years ODM/OEM experience with custom design capabilities
- Complete system software management solutions
- Remote troubleshooting with video support and free spare parts replacement within warranty
Competitive Advantages
- Comprehensive security solutions saving time and costs
- High quality products with competitive pricing
- Professional technical support and excellent after-sales service
- Custom design and logo options available
- Fast delivery with safe shipping methods
- 1-year warranty with lifetime technical support
- 24-hour online service with quick response
Access Control Options
- Multiple access control systems: fingerprint, face recognition, card reader, QR code, barcode ticket
- Special functions: counter operation, coin operation
- ESD tester system integration
