Anti Clip Automatic Security Barrier Gate RS485 Brushless Drive
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-658 SERIES |
| Minimum Order Quantity | 1pcs |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7-9 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Passing Speed | 35-40 Person/min | Face Bank | 20~30 Thousands Pcs |
|---|---|---|---|
| Size | L1400*W200*H1000mm | Material | 304 Stainless Steel |
| Power Supply | AC100V-240V | Operating Temperature | -45°C-60°C |
| Type | Fully Automatic | ||
| Highlight | Anti Clip Security Barrier Gate,Brushless Drive Automatic Barrier Gate,0.6s Security Barrier Gate |
||
Product Description
Anti Clip Automatic Security Barrier Gate RS485 Brushless Drive
Product Overview
Automatic security barrier gate with RS485 brushless drive featuring infrared anti-clip function for reliable access control.
Key Features
- Suitable for both outdoor and indoor installation
- LED indicator lights (green/red) display passage status
- Horizontal sliding glass panel provides unobstructed passage
- Automatic gate opening during power failure for fire safety compliance
- Customizable high visibility glass panels to prevent climbing
- Standardized electrical interface for easy system integration
Technical Specifications
| Cabinet dimension | 1400 (L) x 200 (W) x 1000 (H) mm |
|---|---|
| Cabinet material | 304 stainless steel (316 ss available as custom option) |
| Power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Flap operation time | 0.6s |
| Flap extension length | 285 mm |
| Access mode | Single in/out or bidirectional |
| Flow rate | 40 persons/min (open), 25-30 persons/min (closed) |
| System reset time | Default 10s (configurable) |
Advanced Functions
- Adjustable passing time settings
- Anti-tailgating alarm system
- Bicycle delay function for safety
- Multiple control modes including scheduled open periods
- Flexible operation modes (one-way, two-way, free passage)
- Supports various control methods (remote, button, barcode, IC/ID cards)
System Capabilities
- Compatible with IC/ID card readers
- LED directional indicators (green arrow/red cross)
- Expandable to access control, attendance, and fare collection systems
- Infrared sensors for unauthorized entry detection
- Standard electrical interfaces for easy integration
- Remote management capability
Applications
Commercial buildings, offices, exhibition halls, parks, stadiums, libraries, museums, and other secured facilities.
Service & Support
- Comprehensive security solutions
- Competitive pricing with OEM/ODM services
- Professional technical support and after-sales service
- Custom designs and branding options
- Fast delivery with secure shipping
Product Classification
Available in vertical, bridge (this model), and pillar/tube configurations. Options include single motor (for single/multiple passageways) and double motor (for multiple passageways).

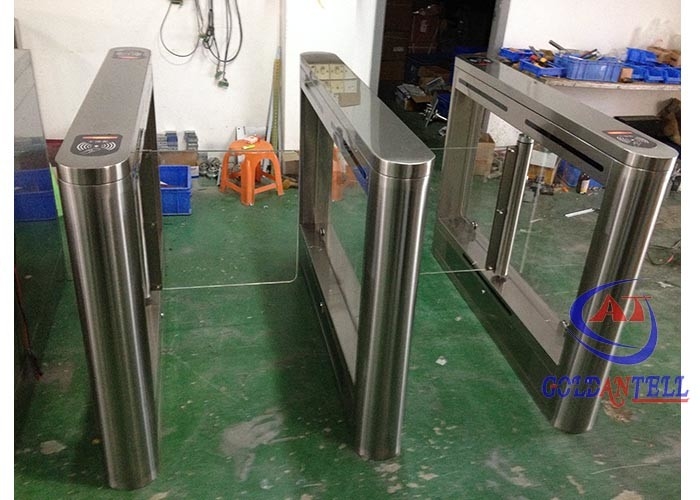

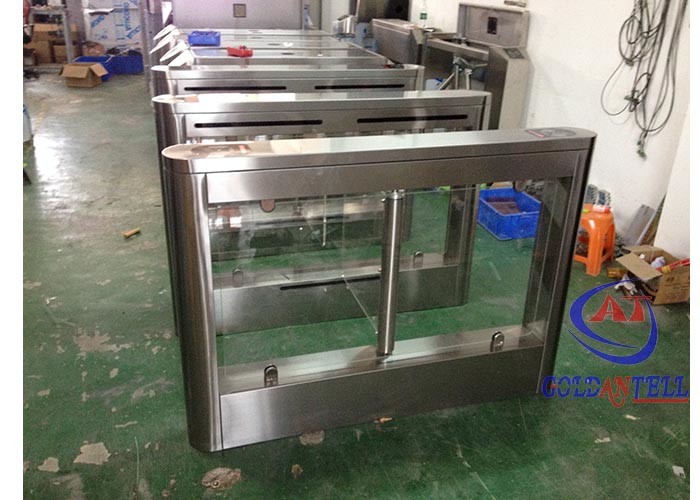

Product Images
