Stainless Steel Automated Gate System Fingerprint RS485 Communication Interface
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-611 SERIES |
| Minimum Order Quantity | 1pcs |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pole Material | Stainless Steel 304 | Product Name | Single Pole Swing Barrier Gate |
|---|---|---|---|
| Mechanism | Brushless Motor/Servo Motor | Lane Width | 450mm-900mm(single Side) |
| Dimension | 168mm Diameter, 1050mm High | Application | Office\School\Airport\Outdoor,Apartment Door |
| Power Supply | AC100V-240V | Passing Speed | 30-35 Persons/min |
| Highlight | SS304 Automated Gate System,RS485 Automated Gate System,Fingerprint automatic gate barrier |
||
Product Description

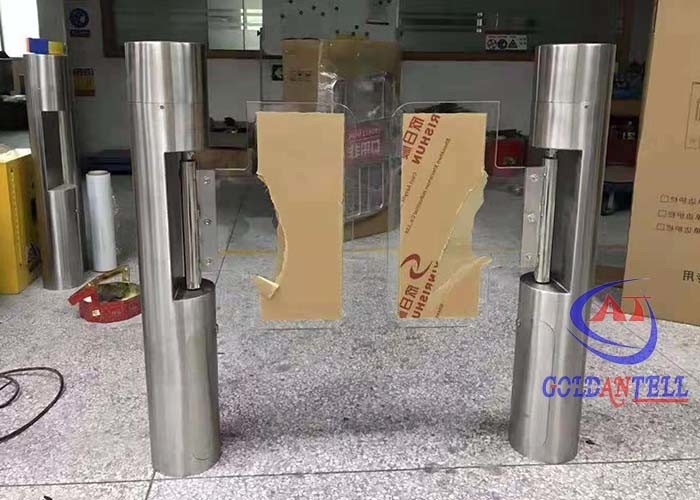

Security Access Control Fingerprint RS485 Communication Interface Stainless Steel automated gate systems
Description Of Automated Gate System
1. Silk printing logo: Available
2. This turnstile with swing panels is designed in a modern and elegant style and provides an ideal contactless solution for access control at sites with high aesthetic and comfort requirements.
3. Panel swing Material: Stainless steel /Acrylic plate / tempered glass are optional.
4. Built-in mechanical lock to prevent forced opening of arms.
5. Widely used in Commercial Buildings, Airports, Metro Stations, Libraries, Factories, Exhibition Centers, Gyms, and Government Institutions.
6. Bi-directional or single way optional.
Specification Of Automated Gate System
| 1 | Cabinet dimension | diameter of pillar is 168mm, the height is 1050mm |
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | opening/closing time | 0.2s |
| 5 | Arm material | thickness 10mm Acrylic, or tempered glass or steel (custom) |
| 6 | Access mode | single in/out or Bidirectional |
| 7 | Passthrough Width | 550 mm - 1800 mm for a pair, or 60-90mm for a pc |
| 8 | Swing arm angle | 180 degree |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Time of opening/closing | 1 second |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after break down | default 10s can be changed to fit different demands |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
Features Of Automated Gate System
1. Problem-self-checking function.
2. When the power off, arm open automatically and power on again, the arm will be held automatically.
3. Anti-Tail gaiting feature built in to prevent unauthorized entry.
4. Fast opening and closing time.
5. Safety function(anti-pinching). By default sliding wing will auto- reverse if IR sensor detected obstacle within the sliding wing area. This avoid sliding wing to accidentally hit onto to user. Can adding green/red/blue light lining effect along the edge of the sliding wing to ensure sliding wing is easily visible
6. Long service life with low operational cost.
Application Of Automated Gate System
1. Entertainment Places
Movie theaters,
Fitness halls,
Country clubs,
Fairground
Swimming Hall,
Fitness Gym.
2. Public Places
Stadium,
Library,
Museums
Parks,
Offices,
Exhibition halls,
Commercial buildings.
Our Advantages Of Automated Gate System
1. We Focus on Turnstile for more than 13 years.
2. We do customize Service. OEM, OEM is available.
3. We Optimize For Lower Cost, remove unnecessary features/use mould design, save your money!
4. We Timely Response every customer! Response to customers whoever did business with us in 3mins, and assist with project solutions later.
FAQ Of Automated Gate System
1. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
2. How does your factory control the quality?
Vivian: Quality controlling from the beginning to the ending.
3. Can your machines be used outside?
Vivian: With waterproof function, could be used outside.
4. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
5. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
