High Glass Baffle Optical Turnstile Dual Channel Controller Swing Barrier Gate For Exit

  • High Glass Baffle Optical Turnstile Dual Channel Controller Swing Barrier Gate For Exit
  • High Glass Baffle Optical Turnstile Dual Channel Controller Swing Barrier Gate For Exit
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-new
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Of Product 1200*200*1000mm Package Size 1280*370*1070mm
Application Indoor&outdoor Net Weight 65KG
Gross Weight 70KG Communication Port RS485 ,TCP/IP
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Material 304 Stainless Steel/316 Stainless Steel
Highlight

High Baffle optical turnstile

,

Glass Baffle optical turnstile

,

optical Swing Barrier Gate
Leave a Message
Product Description
High Glass Baffle Optical Turnstile Dual Channel Controller Swing Barrier Gate For Exit
High glass baffle Optical pedestrian access pass door dual channel controller automatic swing gates for exit
Description Of Automatic Swing Gates
  • Flap barrier gate can be integrated with access control system like facial recognition for staff, providing civilized orderly access methods.
  • ESD equipment can be quickly tested, with three independent devices (Left Shoes, Right Shoes, Wrist Strap) completely ESD tested at one time.
  • LCD screen: optional, provides more options for system requirements.
  • Single core (movement) structure or dual core (double movement) structure available for different installation requirements.
  • Higher flow rate and enhanced anti-tailgate functions.
  • Double protections of mechanical and infrared anti-pinch function, ensuring more reliable and safer passage.
Specifications Of Automatic Swing Gates
Item Details
Name Bridge type flap turnstile
Size 1200mm (L) * 200mm (W) * 1000mm (H)
Retractable arm length 260 mm
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm
Normal running life 3 million
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after break down 10 seconds
Direction Single or bi-directional (optional)
Drive motor DC 24 V brush motor
Working environment Indoor/outdoor (with a tent over) -10℃～70℃
Communication interface Standard RS 485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA
Relative humidity ≤90% coagulation free
Housing material Domestic standard 304 # stainless steel
Working voltage AC220±10%V 50±10%HZ
Function & Features Of Automatic Swing Gates
  • Infrared reset function (Optional:4 pairs or 6 pairs Infrared). Infrared induction clamp function.
  • The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
  • Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance.
  • Selectable normally open or close mode to effectively divert passenger flow.
  • Humanized setting function for reset of overtime passing.
  • Remote management and control capability via computer.
  • Flashing light prompt function for easy problem identification by administrative staff.

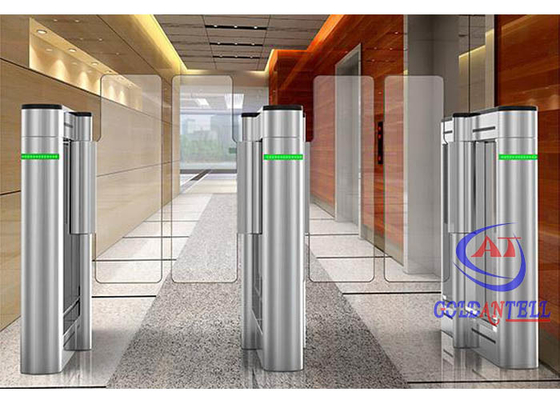

Product Photos Of Automatic Swing Gates
High Glass Baffle Optical Turnstile Dual Channel Controller Swing Barrier Gate For Exit 0
Project Applications Of Automatic Swing Gates
  • Movie theaters
  • Fitness halls
  • Country clubs
  • Fairground
  • Clubs
  • Swimming Hall
  • Fitness Gym
  • Hotel
  • Factory
  • Bank
  • Hospital
  • School
FAQ Of Automatic Swing Gates
How about your package?
Seaworthy wooden case + Foam.
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment.
How about the lead time?
Regular products need 5-8 working days. The customized products need 9-13 working days.
Service Of Automatic Swing Gates
  • Friendly and professional customer service available within 16 hours.
  • Over 10 years of ODM/OEM capability including product shape design, custom logo, and custom packaging.
  • Comprehensive solutions including product and system software management to save time and costs.
  • Special repair service: No product return needed - video diagnosis with spare parts shipped free if damaged within 1 year.
Advantage Of Automatic Swing Gates
  • Security solution provider helping save time and costs.
  • High quality with competitive pricing, offering OEM and ODM services.
  • Professional technical support and excellent after-sales service.
  • Custom design shape and logo available (free for large quantities).
  • Fast delivery and safe shipping methods.
  • Warranty: One year from delivery date with lifetime technical support.
  • Quick response: 24-hour online service with inquiries answered within 8 hours.
Access Control Ways Of Automatic Swing Gates
  • Compatible with various access control systems: fingerprint, face recognition, card reader, QR code, barcode ticket system.
  • Supports special functions: counter, coin-operation.
  • ESD tester system and function available.
