Electric Flap Barrier Gate Mechanism RFID Stainless Steel Access Control Turnstile Gate

  • Electric Flap Barrier Gate Mechanism RFID Stainless Steel Access Control Turnstile Gate
  • Electric Flap Barrier Gate Mechanism RFID Stainless Steel Access Control Turnstile Gate
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-new
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Of Product 1200*280*1000mm Package Size 1280*370*1070mm
Application Indoor&outdoor Net Weight 65KG
Gross Weight 70KG Communication Port RS485 ,TCP/IP
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Material 304 Stainless Steel/316 Stainless Steel
Highlight

TCP IP Flap barrier gate

,

Mechanism Flap barrier gate

,

Bridge type Access Control Turnstile gate
Leave a Message
Product Description
Electric Flap Barrier Gate Mechanism RFID Stainless Steel Access Control Turnstile Gate
Auto Turnstile Access Control Electric Swing Entrance Control Mechanism RFID Door Opener Stainless Steel
Description Of Auto Turnstile
  • Flap barrier gate can be integrated with access control systems including facial recognition for staff management
  • ESD equipment allows rapid testing of three independent devices simultaneously
  • Optional LCD screen provides additional system configuration options
  • Available in single core (movement) or dual core (double movement) structures for different installation requirements
  • High flow rate with advanced anti-tailgate functionality
  • Dual protection with mechanical and infrared anti-pinch features for safer operation
Specifications Of Auto Turnstile
Item Details
Name Bridge type flap turnstile
Size 1200mm (L) * 280mm (W) * 1000mm (H)
Retractable arm length 260mm
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after break down 10 seconds
Direction Single or bi-directional (optional)
Drive motor DC 24V brush motor
Working environment Indoor/outdoor (with tent), -10℃ to 70℃
Communication interface Standard RS485 interface, distance ≤1200m
Input interface +12V level signal or pulse width >100ms, 12V pulse, drive current >10mA
Relative humidity ≤90% (non-condensing)
Housing material 304 stainless steel
Working voltage AC220±10%V 50±10%HZ
Function & Features Of Auto Turnstile
  • Infrared reset function (4 or 6 pairs optional) with induction clamp protection
  • Bi-directional operation allowing entry/exit through single unit
  • Real-time self-diagnosis with alarm indication for maintenance
  • Configurable open/close modes for passenger flow management
  • Adjustable timeout settings for passage reset
  • Remote management capability via computer interface
  • Visual status indicators for easy troubleshooting

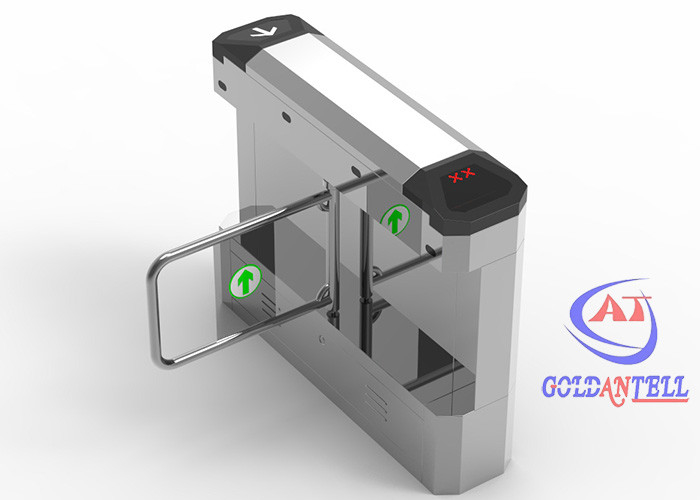

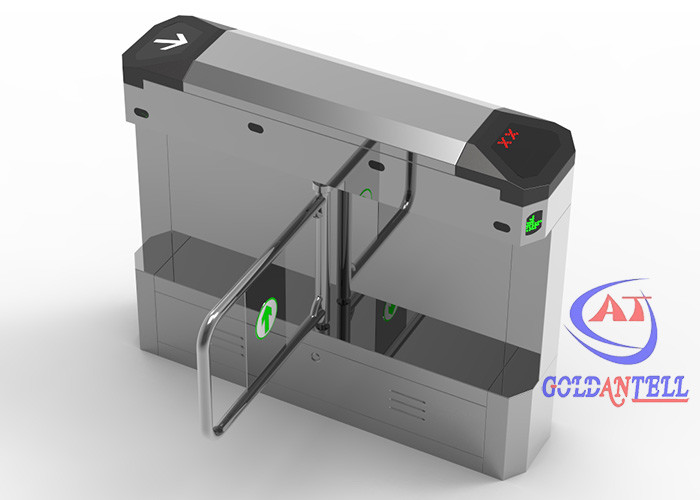

Product Photos Of Auto Turnstile
Electric Flap Barrier Gate Mechanism RFID Stainless Steel Access Control Turnstile Gate 0
Project Applications Of Auto Turnstile
  • Movie theaters
  • Fitness halls
  • Country clubs
  • Fairgrounds
  • Clubs
  • Swimming pools
  • Fitness gyms
  • Hotels
  • Factories
  • Banks
  • Hospitals
  • Schools
FAQ Of Auto Turnstile
How about your package?
Seaworthy wooden case with protective foam
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment
How about the lead time?
Regular products: 5-8 working days. Customized products: 9-13 working days
Service Of Auto Turnstile
  • 16-hour professional customer support
  • 10+ years ODM/OEM experience with custom design capabilities
  • Complete system solutions including software management
  • Remote troubleshooting with video support and free replacement parts
Advantage Of Auto Turnstile
  • Comprehensive security solutions saving time and costs
  • Competitive pricing with OEM/ODM services
  • Professional technical support and after-sales service
  • Custom design options including free logo for bulk orders
  • Fast delivery with secure shipping methods
  • 1-year warranty with lifetime technical support
  • 24/7 online service with 8-hour response guarantee
Access Control Ways Of Auto Turnstile
  • Multiple access options: fingerprint, face recognition, card reader, QR code, barcode ticket system
  • Special functions: counter operation, coin-operated systems
  • ESD tester system integration
