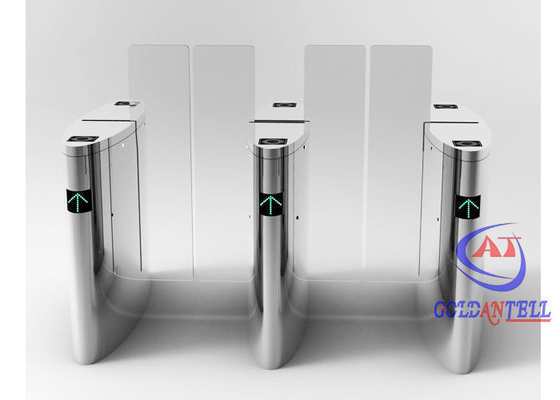

Mechanism DC Brushless Motor Speed Turnstile Gate Automatic 1.8meter Height Glass Barrier
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-623 |
| Minimum Order Quantity | 1pcs |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Office\School\Airport\Subway\Outdoor | Dimension | 1400 * 300 * 1000mm |
|---|---|---|---|
| Power Supply | AC100V-240V | Passing Speed | 45persons/min |
| Driving Motor | 24V Brushless DC Motor | Usage | Subway Station Mall |
| Material | Stainless Steel 304/316 | Lane Width | 60,90,110cm Or Others |
| Highlight | Brushless Motor Speed turnstile gate,1.8meter Height Speed turnstile gate,Glass Barrier Speed Gate Turnstile |
||
Product Description
Mechanism DC Brushless Motor Speed Turnstile Gate Automatic 1.8meter Height Glass Barrier
High Quality Mechanism DC Brushless Motor High Speed Gate Automatic Gym 1.8meter Height Glass Barrier
High Speed Gate Features
- Goldantell intelligent Series turnstile gates feature excellent design and performance, utilizing innovative technology and high-quality materials for security, commercial, and industrial applications.
- Electric control with DC motor ensures stable, reliable operation with low failure rate. Ultra-bright LED directional indicators provide clear guidance.
- System integration compatible with Face, thermal, RFID, fingerprint, QR/barcode, and ESD access control systems.
- Custom OEM/ODM services available for size, shape, and other specifications.
- Constructed with 304 stainless steel (IP54 waterproof rating), elegant anti-rust design for durability.
Technical Specifications
| 1 | Cabinet dimension | 1400 (L) x 300 (W) x 1000 (H) mm |
|---|---|---|
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | Opening/closing time | 0.2s |
| 5 | Arm material | Thickness 10mm Acrylic, or tempered glass or steel (custom) |
| 6 | Access mode | Single in/out or Bidirectional |
| 7 | Passthrough Width | 900mm (or custom) |
| 8 | Mechanism | DC Brushed motor+Clutch (or Servo motor) |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Infrared sensor | 6~10 pairs |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after break down | Default 10s (adjustable) |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
Security Features
- Multiple IR sensor pairs for enhanced detection
- Fast 0.2s opening/closing time
- Bi-directional or single way operation options
- Anti-Tail gaiting feature prevents unauthorized entry
- Built-in mechanical lock prevents forced opening
- Auto-open function during power failure for fire safety
- Multi-alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
- Wings automatically open during power interruption (optional recovery mode)
Applications
Banks, Fitness Gyms, Factories, Hotels, Movie Theaters, Office Buildings
Product Advantages
- 13+ years specialized in turnstile manufacturing
- Custom OEM/ODM services available
- Cost-optimized designs through feature optimization and mold design
- 3-minute response time for customer inquiries and project solutions
Product Display
Frequently Asked Questions
Can I have a system that only supports ESD test without software?
Yes, we offer multiple options. Our catalog can help you make the right choice.
What language versions are available for the software system and machine display?
English and Chinese versions are supported.
Can I get software manuals or installation instructions?
Yes, English version manuals are available.
Is customization available?
Yes, we specialize in OEM/ODM services with extensive experience serving government and commercial clients.
What are your payment terms?
100% payment before shipment. We provide product and package photos/videos before final payment.
What are your delivery terms?
EXW, FOB, CFR, CIF, DDU available.
Our Services
- 16-hour friendly and professional customer support
- 10+ years ODM/OEM experience for custom designs, logos, and packaging
- Complete solutions including product and system software management
- Special repair service: Video-based troubleshooting with free spare parts replacement within 1 year
Packaging Options
Export: Wooden case with pearl wool and plastic wrap (export inspection exempt)
Domestic: Bubble wrap with carton or pearl wool with wooden packaging
Professional, environmentally friendly packaging ensures product safety during transit.
