automatic turnstiles glass door swing barrier high secure turnstile gate prison two passage
Product Brief
1) Flap barrier gate can be integrated with ESD tester system or other access control system for staff, provide civilized orderly access methods.
2) ESD equipment can be quickly tested, and three independent devices (Left Shoes, Right Shoes, Wrist Strap) be completely ESD tested at one time.
3) LCD screen: optional, supply more options for system requirement.
4) Single core (movement) structure or dual core (double movement) structure is equipped for different installation requirements.
5) Higher flow rate and better anti-tailgate functions.
6) Double protections of Mechanical and infrared anti-pinch function, providing more reliable and safer passing.
Technical specification
| Size: |
1200mm (L) * 300mm (W) * 1000mm (H) |
| Retractable arm length: |
285 mm ( can be custom-made) |
| Pass speed: |
40 persons/min (open), 30-35 persons/min (closed) |
| Passage width: |
≤600mm ( or <900mm width, custom-made) |
| Normal running life: |
3 million |
| Time of opening/closing: |
0.6 second |
| Time to work after power on: |
3 seconds |
| Reset time after break down: |
10 seconds |
| Direction: |
single or bi-directional (optional) |
| Drive motor: |
brushless motor ( or servo motor) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA |
| Relative humidity: |
≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel |
| Working voltage: |
AC220±10%V 50±10%HZ |
Security Features
1. Through TCP/IP communication technology, you can connect 255 human body comprehensive testing equipment (255 sets of Flap Turnstile / Tripod Turnstiles or other types). To monitor employees' compliance with anti-static requirements in real time.
2. Just install SQL Server2000/2008 and run the access control management software system on any computer in your company.
3. Emergency evacuation.During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.
4. Can set for single direction or two directions to go through the machine.
5. Support the Employee mode and guest mode. Employee mode need to use EM card and it can show Name, Card No.,Date&Time.

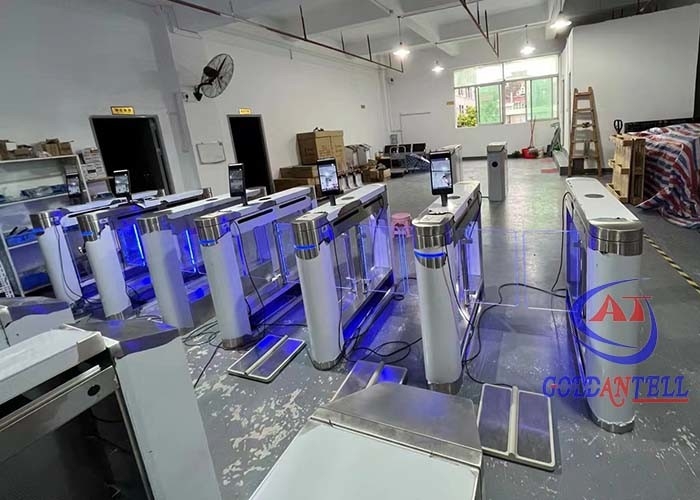

Product Show
Project Application
- factories,
- office building ,
- clubs,
- intelligent community ,
- airports,
- railway stations ,
- docks,
- scenic spots,
- parks,
- student dormitories,
- pedestrian passages
FAQ
1. Can I have a system that only supports esd test without software?
Vivian: sure, there are more options. our catalog can provide to help you make a choice.
2. What is the language version available for the software system and displayed on the machine?
Vivian: English / Chinese.
3. Can I have a software manual or installation instructions?
Vivian: sure, no problem, manual in the English version is available as well.
4. Can I customize it?
Vivian: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM experience for government, etc.
5. What are your terms of payment?
Vivian: 100% paid before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
6. What are your terms of delivery?
Vivian: EXW, FOB, CFR, CIF, DDU.
Package Info
1. Inside with a carton package.Then outside,there are 2 kinds of packages under your choice:
2. crate package and closed wooden package optional.
3. if <10pc, ship in 7 working days ; > 50, ship in 10-15 working days; For customized product, need 2-3 longer working days.
