Product Details:
Payment & Shipping Terms:
|
| Identification Speed: | Face Detection And Tracking 20 Ms | Identification Height: | 1.2m-2.2m |
|---|---|---|---|
| Wiegand Format: | 26/34 | Size Of Product: | 1400*200*1000mm |
| Application: | Health Projects,hotel,canteens, Hospitals, Office Buildings, Customs, Agencies, Tourist Attractions, Factories | Working Environment: | Indoor / Outdoor ( Shelter) |
| High Light: | brush motor face recognition turnstile,DC24V face recognition turnstile,ESD Access Control swing barrier gate |
||

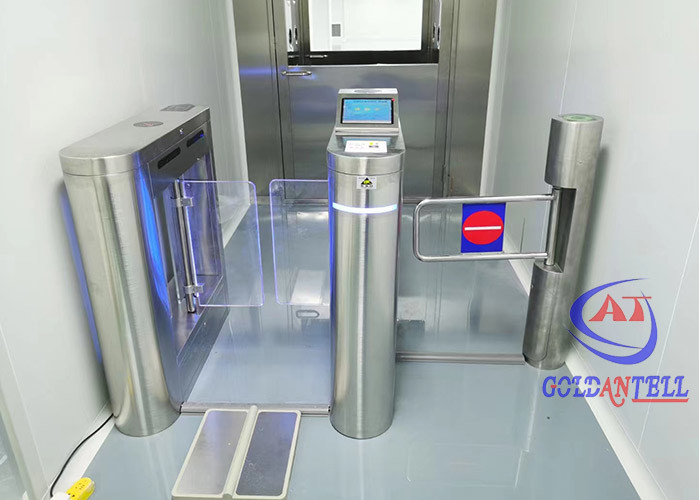

Entrance Acrylic LED Indicator Light glass arm face scan turnstile swing barrier gate with esd access control system
Quick Description
◊ It can carry out intelligent control and management to the passageway through choosing various identification equipment and adopting fair, reliable security protection, alarming equipment and direction indicating equipment.
◊ Pass direction: one way or two ways to set for you.
◊ It has a visible high glass panel that prevents a user from climbing over the gate to gain unauthorized access. Glass panel slides open horizontally to provide an unobstructed passageway.
◊ Higher flow rate and better anti-tailgate functions.
Specifications List
| Technical parameters of turnstile gate | |
| Size of housing: | 1400mm (L) * 200mm (W) * 1000mm (H) |
| Pass through width | widely 60 /90cm ,or (120cm and custom-made) for a pair |
| Pass speed: | 40 persons/min (open), 25-30 persons/min (closed) |
| Drive motor: | standard DC 24 V brush motor ( or brushless motor) |
| Normal running life: | 3 million |
| Time of opening/closing: | 0.6 second |
| Time to work after power on: | 3 seconds |
| Reset time after break down: | 10 seconds |
| Direction: | single or bi-directional (optional) |
| Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: | standard RS 485 interface, distance ≤1200m |
| Input interface: | +12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
| Relative humidity: | ≤90% coagulation free |
| Housing material: | domestic standard 304 # stainless steel |
| Working voltage: | AC100-240V, 50±10%HZ |
ESD Detection Device Descriptions
1. Item model: GAT-ESD303
2. It can stand and work alone, or be built into different styles of Channel turnstile gates like a Flap barrier or tripod.
3. Has has a 4.3-inch LCD screen, voice prompts, intuitively display the test results, no software.
Functions & Features
1.With function of self-examine and alarm, it is convenient for maintain and use
2. being able to program operation state by the small keyboard in the main board.
3. Swing arm stops moving when it is blocked, which prevents pedestrians from being nipped and from hurt
4. Arms are automatically locked until an opening signal is received
5. Arms synchronization (adjustable)
6. Light and sound alarm is generated when the illegal invasion and the tail followed.
7. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening.
Project Application
a. Movie theaters, fitness halls, Country clubs, Fairground, Clubs, Swimming Hall, Gym.
b. Hotel, Factory, Bank, Prison, Hospital, School, Enterprise’s Entrance and Exit Attendance
Our Service
1. Friendly and professional customer service people help you in 16 hours.
2. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
