Electric Automatic Vertical Tripod Turnstile Gate With Card Reader ESD Foot Checker
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE certificated |
| Model Number | GAT-ESD303 |
| Document | Different ESD Tester turnst...ll.pdf |
| Minimum Order Quantity | 1pc |
| Price | Negotiable |
| Packaging Details | carton +crate, or closed wooden case |
| Delivery Time | 4-9 working days after received your payment |
| Payment Terms | T/T,Western Union,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Net Weight | 45kg | Swipe Card | Optional |
|---|---|---|---|
| Housing Material | 304 Stainless Steel Vertical Turnstile | Working Temperature | -15~+75 °C |
| Communication Interface | RS485 | Power Supply | AC220V/110V,50/60Hz |
| Highlight | ESD turnstile gate with card reader,Automatic Rotate tripod turnstile gate,RS485 tripod turnstile gate |
||
Product Description

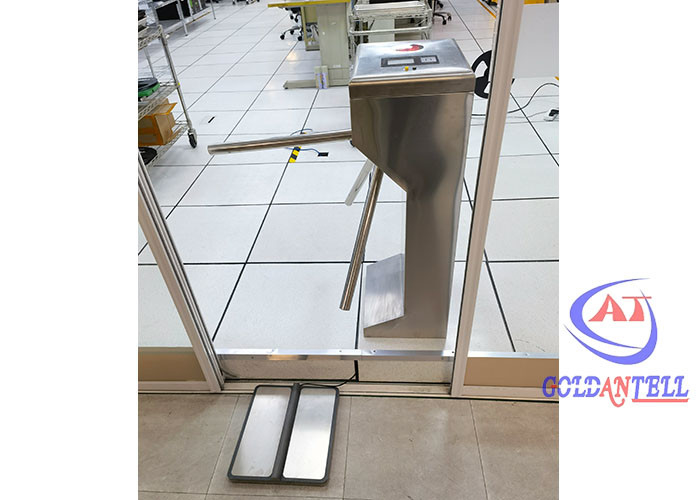

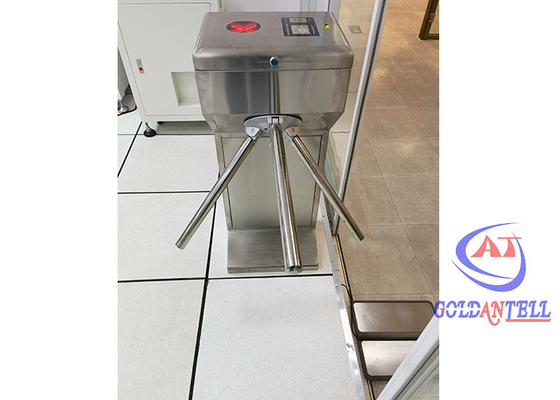

Electric Automatic Vertical Tripod Turnstile Gate With Card Reader ESD Foot Checker
Electric ESD foot checker automatic card reader portable vertical tripod turnstile gate made of stainless steel.
Product Profile
- ESD equipment performs rapid testing with three independent devices (Left Shoes, Right Shoes, Wrist Strap) for comprehensive ESD testing in one operation
- Simple installation requiring only SQL Server 2000/2008 and access control management software on any company computer
- TCP/IP communication technology supports connection of up to 255 human body testing devices (Flap Turnstiles/Tripod Turnstiles) for real-time monitoring of anti-static compliance
Features & Functions
- Left shoe setting: 0.01-1000MΩ, Accuracy ±5%
- Right shoe setting: 0.01-1000MΩ, Accuracy ±5%
- Wrist-strap setting: 0.1-35MΩ, Accuracy ±5%
- Adjustable test range meets international standards with customizable upper/lower limits
- Automatic storage of records and ESD test data (100,000+ capacity in non-client mode)
Specifications of Tripod Turnstile Gate
| Item Number | GAT-306 |
|---|---|
| Housing material | Standard 304# stainless steel |
| Size | 430*330*1090mm |
| Working voltage | AC220/110±10%V; 50±10%HZ |
| Passage width | ≤600 mm |
| Pass speed | 30 persons/min |
| Normal running life | 3 million |
| LED light | Direction arrow |
| Direction | Single or bi-directional (optional) |
| Emergence | Arm opens when power is off |
Sales Service
- Pre-sale service: Comprehensive communication to understand requirements with detailed product information
- On-purchase service: Regular production updates with clear photos and testing videos before shipment
- After-sale service: Complete instructions, manuals, and installation videos for quick setup and operation
Dimension Design
