Electric Flap Barrier Turnstile Speed ESD Facial Scan Screen Control Software
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-206 |
| Document | Different ESD Tester turnst...ll.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size Of Product | 1200*280*1000mm | Package Size | 1280*370*1070mm |
|---|---|---|---|
| Application | Indoor&outdoor | Net Weight | 65KG |
| Gross Weight | 70KG | Communication Port | RS485 ,TCP/IP |
| Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Material | 304 Stainless Steel/316 Stainless Steel |
| Highlight | ESD Software flap barrier Turnstile,TCP IP flap barrier Turnstile,TCP IP speed Turnstile Gate |
||
Product Description
Electric Flap Barrier Turnstile Speed ESD Facial Scan Screen Control Software
Product Description
Electric flap barrier double-motor turnstile with ESD facial scan screen control software provides secure and efficient access control solutions.
- Integrated with ESD tester system or facial recognition access control for orderly staff management
- Quick ESD testing capability for three independent devices simultaneously (Left Shoes, Right Shoes, Wrist Strap)
- Optional LCD screen for flexible system requirements
- Available in single core or dual core structures for different installation needs
- High flow rate with advanced anti-tailgate functionality
- Double protection with mechanical and infrared anti-pinch features for safe passage
Specifications
| Item | Details |
|---|---|
| Name | Bridge type flap turnstile |
| Size | 1200mm (L) * 280mm (W) * 1000mm (H) |
| Retractable arm length | 260 mm |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width | ≤600mm |
| Normal running life | 3 million cycles |
| Time of opening/closing | 0.6 second |
| Time to work after power on | 3 seconds |
| Reset time after break down | 10 seconds |
| Direction | Single or bi-directional (optional) |
| Drive motor | DC 24 V brush motor |
| Working environment | Indoor/outdoor (with tent), -10℃～70℃ |
| Communication interface | Standard RS 485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA |
| Relative humidity | ≤90% (non-condensing) |
| Housing material | 304 stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
Functions & Features
- Infrared reset function (4 or 6 pairs optional) with induction clamp
- Bi-directional operation (entry and exit through same turnstile)
- Real-time self-diagnosis with alarm indication for system safety
- Configurable normally open/closed modes for passenger flow control
- Adjustable timeout reset for humanized operation
- Remote management capability via computer
- Flashing light prompt for easy problem identification
Special Functions
- LED counting display
- Customizable box house and swing arm lengths
- Advanced infrared logic (8 or 10 pairs optional) with voice prompt
- Adjustable open/closed modes for different locations
- Sound and light alarm functions
- Stroboscopic lamp for quick problem identification

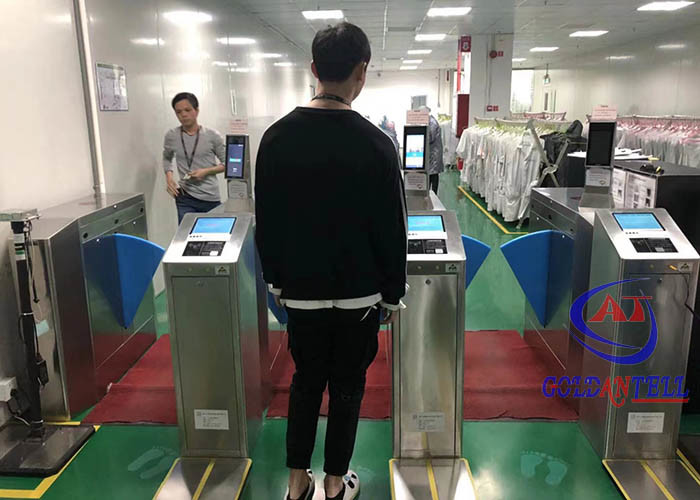

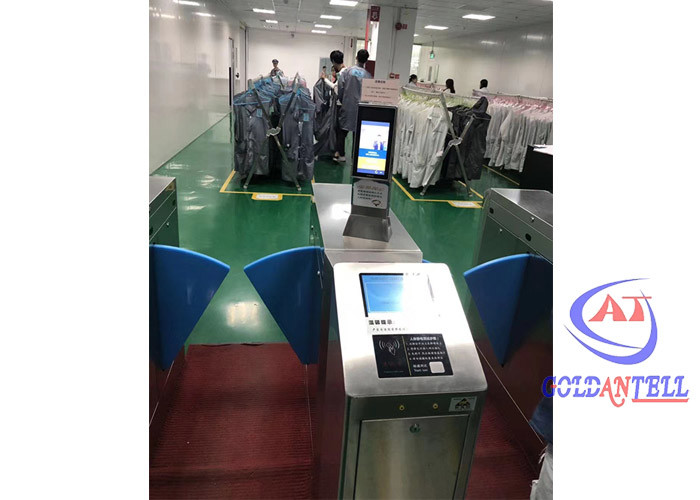

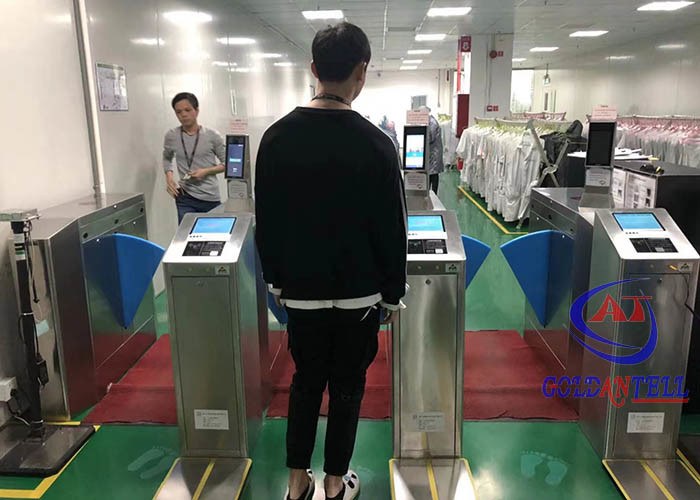

Product Photos
Project Applications
- Movie theaters
- Fitness halls
- Country clubs
- Fairgrounds
- Clubs
- Swimming pools
- Fitness gyms
- Hotels
- Factories
- Banks
- Hospitals
- Schools
Frequently Asked Questions
How about your package?
Seaworthy wooden case with protective foam.
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment.
How about the lead time?
Regular products: 5-8 working days. Customized products: 9-13 working days.
Competitive Advantages
- 16-hour professional customer service support
- 10+ years ODM/OEM experience with custom design, logo, and packaging
- Complete system software management solutions to save time and cost
- Special repair service: video diagnosis with free spare parts within 1 year
Access Control Options
- Multiple access methods: fingerprint, face recognition, card reader, QR code, barcode ticket
- Special functions: counter and coin-operation systems
- Integrated ESD tester system functionality
