Automatic Body Detection Turnstile Flap Barrier 304 SS Face Recognition RFID Reader

  • Automatic Body Detection Turnstile Flap Barrier 304 SS Face Recognition RFID Reader
  • Automatic Body Detection Turnstile Flap Barrier 304 SS Face Recognition RFID Reader
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-205
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 5-7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wing Panel Red / Blue / Transparent / Black Color Power Supply 100-240V(AC)
Throughput Rate 35~40 Persons Per Min Working Environment Indoor / Outdoor ( Shelter),-15-75℃
Body Size 1200*280*1000mm Communication Port RS485 ,TCP/IP
Application Indoor, Outdoor Material 304 Stainless Steel/316 Stainless Steel
Highlight

240V Turnstile Flap Barrier

,

304 SS Turnstile Flap Barrier

,

RFID Reader Flap Turnstile Gate
Leave a Message
Product Description
Automatic Body Detection Turnstile Flap Barrier 304 SS Face Recognition RFID Reader
Non-contact Automatic Body Detection 304 Stainless Steel Face Recognition RFID Reader Turnstile Flap Barrier
Quick Description
  • Luxury Intelligent flap barrier gate available in single motor or dual-motor configurations for multiple passageways
  • Features infrared reset function (optional 4 or 6 pairs), infrared anti-pinch, and anti-tailgate functions
  • LED indicator lights (green/red) display passing status
  • Quiet operation with long service life
  • Suitable for both indoor and outdoor installation
  • Ensures rapid, efficient, and secure access control
Technical Parameters
Item Specification
Name Bridge type sharp flap turnstile
Size 1200/1400mm (L) * 300mm (W) * 1000mm (H)
Retractable arm length 285 mm (customizable)
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm (or <900mm width, customizable)
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after breakdown 10 seconds
Direction Single or bi-directional (optional)
Drive motor DC 24V brush motor
Working environment Indoor/outdoor (with tent), -10℃～70℃
Communication interface Standard RS485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA
Relative humidity ≤90% (non-condensing)
Housing material 304 stainless steel
Working voltage AC220±10%V 50±10%HZ
Function & Features
  • Advanced rapid identification technology supporting face temperature detection, barcode/ticket, NFC, ID/IC cards
  • Real-time self-diagnosis with alarm indication for safe operation and easy maintenance
  • Direction indicators guide proper entry/exit flow
  • Automatic reset function (1-60s adjustable) meets fire safety requirements
  • Optional infrared reset function (4 or 6 pairs)
  • Emergency/special condition processing modes
  • Compatible with access control, biometric, ESD, and consumption systems
  • Bi-directional operation (single unit handles both entry and exit)
  • Remote management capability via computer
  • Flashing light prompt for easy troubleshooting

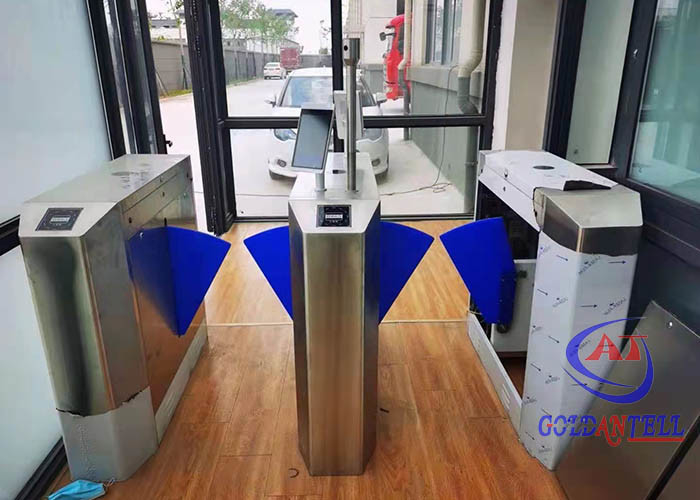

Flap Turnstile Real Photos
Automatic Body Detection Turnstile Flap Barrier 304 SS Face Recognition RFID Reader 0
Projects Application
Entertainment Places Public Places Business Organizations
Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall, Fitness Gym Subway, Airports, Stations, Library, Bookstores, Parks, Exhibition halls, Stadiums, Museums, Apartments, Residence Area, Offices Hotel, Factory, Bank, Prison, Hospital, School, Enterprise's Entrance and Exit Attendance
Our Service
  • 5-minute email response, 1-hour inquiry reply, 1-day solution delivery
  • Professional R&D team offering OEM & ODM services
  • High quality, modern design, competitive pricing, and fast lead times
  • 1-year warranty with lifetime technical support via email, video, phone
FAQ
How long is your warranty period?
One-year guarantee & Lifetime technology support.
How about the payment method?
For orders ≤$5000: 100% T/T in advance. For orders >$5000: 50% T/T in advance, 50% before shipment (negotiable).
Which payment terms do you accept?
T/T, Western Union, LC, PayPal, etc.
Can we visit your factory?
Yes, visitors are welcome at any time.
