Facial Racognition OEM ODM Security Turnstile Gate Flap With ESD Counter System
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-230 |
| Document | GAT-230 flap barrier gate d...os.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size Of Product | 1200*280*1000mm | Package Size | 1280*370*1070mm |
|---|---|---|---|
| Application | Indoor&outdoor | Net Weight | 65KG |
| Gross Weight | 70KG | Communication Port | RS485 ,TCP/IP |
| Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Material | 304 Stainless Steel/316 Stainless Steel |
| Highlight | OEM Security Turnstile Gate,ESD Counter System Security Turnstile Gate,ODM Flap Turnstile Gate |
||
Product Description

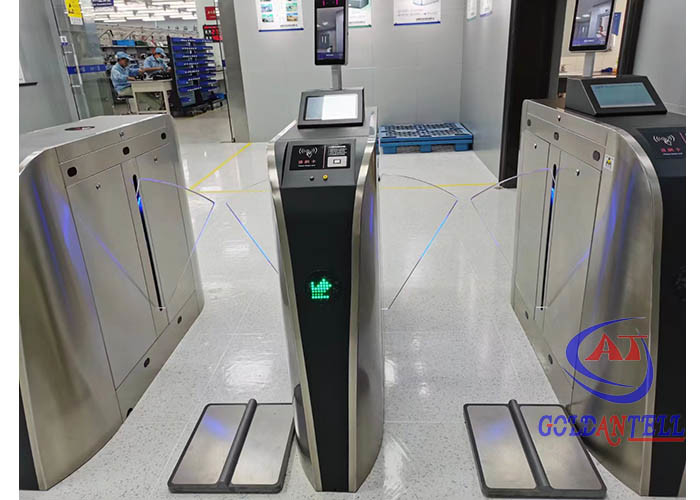

Facial Recognition OEM ODM Security Turnstile Gate Flap With ESD Counter System
Product Description
New manufacture facial recognition OEM ODM security turnstile gate flap with ESD counter system designed for secure and efficient access control.
- Integrates with ESD tester systems and access control systems like facial recognition for staff management
- Comprehensive ESD testing capability for left shoes, right shoes, and wrist strap simultaneously
- Optional LCD screen for enhanced system functionality
- Available in single core (movement) or dual core (double movement) structures for different installation needs
- High flow rate with advanced anti-tailgate functions
- Double protection with mechanical and infrared anti-pinch features for safer operation
Specifications
| Item | Details |
|---|---|
| Name | Bridge type flap turnstile |
| Size | 1200mm (L) * 280mm (W) * 1000mm (H) |
| Retractable arm length | 260 mm |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width | ≤600mm |
| Normal running life | 3 million cycles |
| Time of opening/closing | 0.6 second |
| Time to work after power on | 3 seconds |
| Reset time after break down | 10 seconds |
| Direction | Single or bi-directional (optional) |
| Drive motor | DC 24 V brush motor |
| Working environment | Indoor/outdoor (with tent) -10℃～70℃ |
| Communication interface | Standard RS 485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA |
| Relative humidity | ≤90% (non-condensing) |
| Housing material | Domestic standard 304 # stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
Functions & Features
- Infrared reset function (Optional: 4 pairs or 6 pairs Infrared) with induction clamp function
- Bi-directional operation (pedestrians can enter and exit from one pair of turnstiles)
- Real-time trouble self-detection and alarm indication for system safety
- Selectable normally open or closed modes for effective passenger flow management
- Humanized setting function for reset of overtime passing
- Remote management capability via computer
- Flashing light prompt function for easy problem identification
Special Functions
- LED counting function
- Customizable box house and swing arm length
- Advanced infrared logical judgment function (8 pairs or 10 pairs Infrared optional)
- Voice prompt function
- Adjustable normally open/closed modes for different locations
- Sound and light alarm prompt functions
- Stroboscopic lamp prompt for quick problem identification
Product Photos
Project Examples
- Movie theaters
- Fitness halls
- Country clubs
- Fairgrounds
- Clubs
- Swimming halls
- Fitness gyms
- Hotels
- Factories
- Banks
- Hospitals
- Schools
FAQ
How about your package?
Seaworthy wooden case + foam.
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment.
How about the lead time?
Regular products need 5-8 working days. Customized products need 9-13 working days.
Competitive Advantages
- Friendly and professional customer service available 16 hours/day
- 10+ years of ODM/OEM experience with custom design, logo, and packaging capabilities
- Complete solution including product and system software management
- Special repair service: video-based technical support with free spare parts replacement within 1 year
Access Control Options
- Multiple access control systems: fingerprint, face recognition, card reader, QR code, barcode ticket system
- Special functions: counter, coin-operation
- ESD tester system integration
