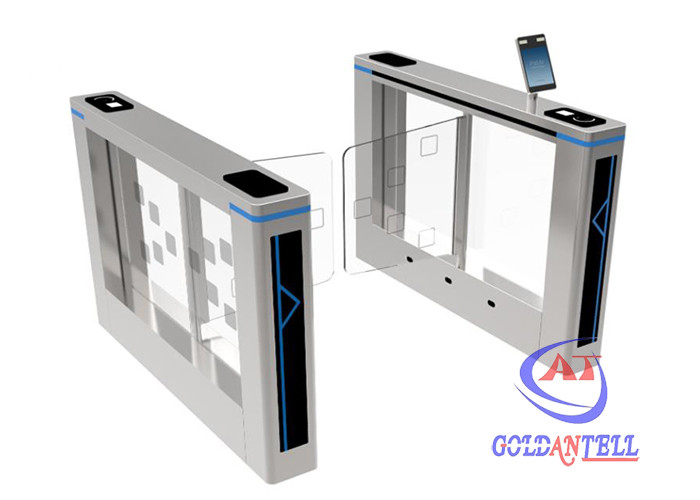

High Quality Full Automatic Swing Turnstile Gate with Face Recognition Access Control System
Application of Swing Turnstile Gate :
Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
Specifications of swing turnstile gate:
| Item |
GAT-626 single motor ) |
| Name |
Swing Turnstile Gate |
| Technical parameters |
| Size: |
1200/1400mm (L) * 280mm (W) * 1000mm (H) |
| Passage width |
600-1000 mm |
| Pass speed: |
40 persons/min (open), 25-30 persons/min (closed) |
| Passage width: |
≤600mm |
| Normal running life: |
3 million |
| Time of opening/closing: |
0.6 second |
| Time to work after power on: |
3 seconds |
| Reset time after break down: |
10 seconds |
| Direction: |
single or bi-directional (optional) |
| Drive motor: |
DC 24 V brush motor |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA |
| Relative humidity: |
≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel |
| Working voltage: |
AC220±10%V 50±10%HZ |
FAQ
Q1. What is your terms of packing?
A: Firstly, we will pack our goods by protective film. Then we will put it in a neutral cartons. Third,we will pack it in standard export wooden case to protect the goods perfectly.
Q2. What is your terms of payment?
A: 100% be made before shipment; T/T 50% as deposit, and 50% before delivery.
We'll show you the photos or video of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally, it will take about 7-9 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you do OEM design?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Company Introduction
Shenzhen Goldantell Technology Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile gate,access control system and parking management products including:car parking lock,car wheel clamp,parking booth house, road blocker,etc.starting from 2007.We also provide the customized products and OEM service.Various new collections and design are coming out each year.
