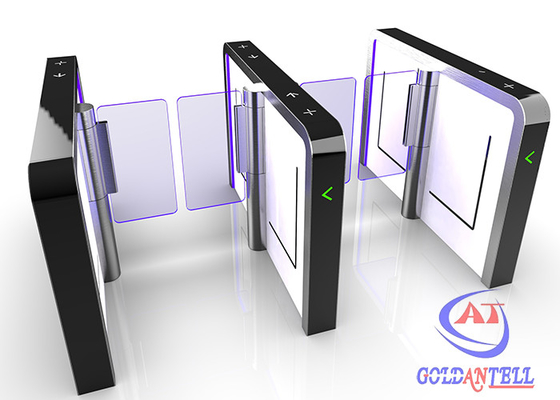

40 Person / Minute Low Noise Automatic Swing Barrier Gate With Access Control For Office Building Museum Library
Brief introduction
- Directional LED Optical Signals: Green Arrow or RED Cross signage.
- With fault self-check function and Alarm function, convenience for maintains.
- Mechanism is specially processed ,more durable.
- Always open or close modes, When Fire alarm on, The acrylics will retract automatically.
- Ensures rapid, efficient & safe access control.
- Individual installation interface, easy to integrated with Magnetic card, Barcode card, ID card, IC card etc.
- Photo Electric Beams installed standard for all models.
Specifications List
| Technical parameters of Automatic Swing Barrier Gate |
| Size of housing: |
1400mm (L) * 200mm (W) * 1000mm (H) |
| Pass through width |
widely 60 /90cm ,or (120cm and custom-made) for a pair |
| Pass speed: |
40 persons/min (open), 25-30 persons/min (closed) |
| Drive motor: |
standard DC 24 V brush motor ( or brushless motor) |
| Normal running life: |
3 million |
| Time of opening/closing: |
0.6 second |
| Time to work after power on: |
3 seconds |
| Reset time after break down: |
10 seconds |
| Direction: |
single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA |
| Relative humidity: |
≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel |
| Working voltage: |
AC100-240V, 50±10%HZ |
Application
1) Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,
Apartments,Residence Area, Offices.
2) Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
3) Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
Standard Packing
1. standard inner packed with carton box.
2. outside pack with closed wooden case.
Our Pre-sale & after-sale service
1. pre-sale service: good communication to better understanding of your demand,advance provide product full info.
2. on-purchase service: keep updating the production process to you,send clear photos and testing video before shipment.
3. after-sale service: offer you the instruction, manual or detailed video to guide you quickly install and use the product.
4. OEM/ODM service: More than 10 years powerful ODM/OEM ability, customize logo, product size, color, etc
5. professional service: 16 hours online or off-line prompt response to your inquiry.
