Product Details:
Payment & Shipping Terms:
|
Transit Speed: | 40 Persons/min (normal Open) | Front LED Screen: | Can Be Customized |
---|---|---|---|
Working Environment: | Indoor / Outdoor ( Shelter),-10-50℃ | Application: | Office\School\Airport\Subway\Outdoor |
Size Of Product: | 1400*280/200*1000mm | Material: | 304 Stainless Steel |
Net Weight: | 55KG | Communication: | RS485 Or TCP/IP |
High Light: | Digital Speed Gate Turnstile,Access Control Speed Gate Turnstile,Narrow Lobby Speed Gate Turnstile |

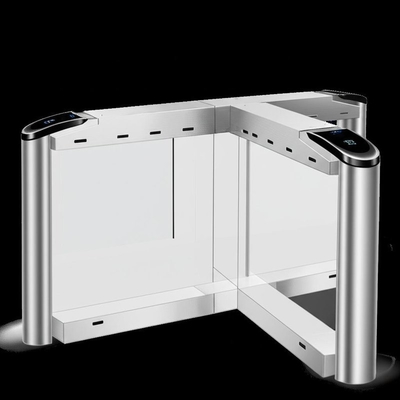

Narrow Lobby dual motors Access Control System Speed Gate Swing Barrier digital turnstile
Specification
Product Model
|
GAT-new |
Product Size
|
1400 *280 or 200*1000mm |
Path width
|
in 650,900mm (for one pair), or more |
Direction
|
single or bi-directional (optional) |
Time of opening/closing
|
0.2 second |
Pass speed
|
40 persons/min (open), 25-30 persons/min (closed) |
Reset time after break down | 5 seconds |
Normal running life | 3 million |
Working environment | indoor/outdoor (with a tent over) -10℃~70℃ |
Drive motor | DC24V brush motor |
Product Display

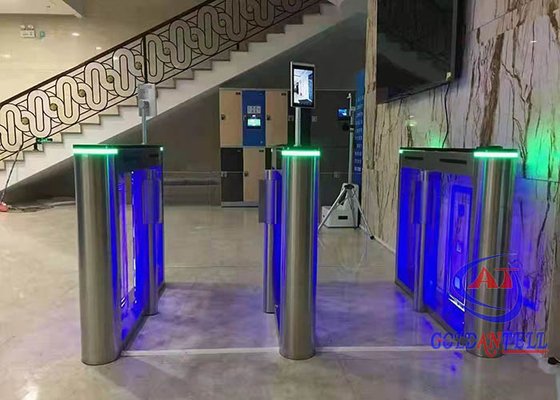

a. Single lane (channel)
b. Multiple lanes ( 2, 3, 4 or more channels, passageway required) can be made according to your requirement.
Function Description
1. Real time failure self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation.
2. With direction indication, guiding passenger to entry and exit.
3. Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000. (Optional)
4. Sound/light (Light is optional) alarm indication function, preventing illegal entry or irregular passing.
5. After the system power is cut off, the plate barrier starts the standby power to withdraw the barrier, so that the passage is ensured to be smooth and to divert the flow of passenger timely.
6. The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.
Standard Packing
1. standard inner packed with carton box.
2. outside pack with closed wooden case.
Application
1) Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices.
2) Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
3) Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
