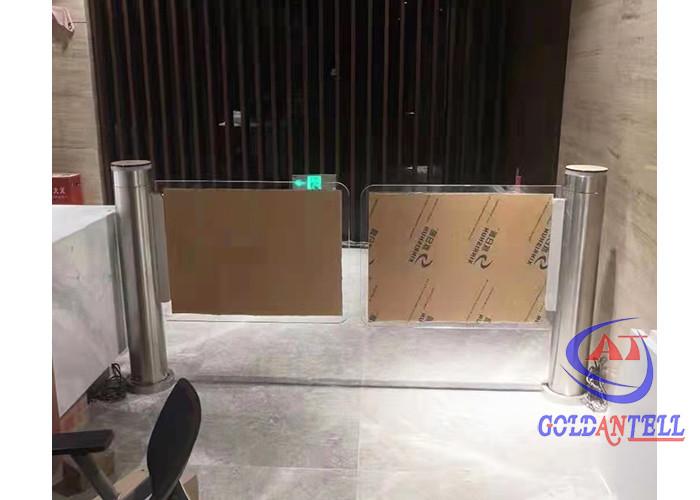

Two Way Access Control Turnstile Gate 1.1meter Support Handicapped Wheelchair
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-620 SERIES |
| Minimum Order Quantity | 1pcs |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pole Material | Stainless Steel 304 | Product Name | Single Pole Swing Barrier Gate |
|---|---|---|---|
| Mechanism | Brushless Motor/Servo Motor | Lane Width | 450mm-900mm(single Side) |
| Dimension | 168mm Diameter, 1050mm High | Application | Office\School\Airport\Outdoor,Apartment Door |
| Power Supply | AC100V-240V | Passing Speed | 30-35 Persons/min |
| Highlight | Handicapped Access Control turnstile gate,1.1meter Access Control turnstile gate,SS304 access control speed gates |
||
Product Description
Two Way Access Control Turnstile Gate 1.1meter Support Handicapped Wheelchair
Two-way auto sensor open 1.1meter handicapped wheelchair access turnstile gate for Fitness Center
Product Features
- Silk printing logo: Available
- Modern and elegant design with swing panels, providing contactless access control solution
- Panel swing material options: Stainless steel, Acrylic plate, or tempered glass
- Built-in mechanical lock to prevent forced opening
- Bi-directional or single-way operation options
- Ideal for Commercial Buildings, Airports, Metro Stations, Libraries, Factories, Exhibition Centers, Gyms, and Government Institutions
Technical Specifications
| No. | Parameter | Specification |
|---|---|---|
| 1 | Cabinet dimension | Diameter of pillar is 168mm, height is 1050mm |
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | Opening/closing time | 0.2s |
| 5 | Arm material | Thickness 10mm Acrylic, or tempered glass or steel (custom) |
| 6 | Access mode | Single in/out or Bidirectional |
| 7 | Passthrough Width | 550 mm - 1800 mm for a pair or 60-90mm for a pc |
| 8 | Swing arm angle | 180 degree |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Time of opening/closing | 1 second |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after break down | Default 10s (adjustable) |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
Security Features
- Problem-self-checking function
- Automatic arm opening during power failure with auto-hold when power returns
- Anti-Tail gaiting feature to prevent unauthorized entry
- Fast opening and closing time
- Safety function (anti-pinching) with auto-reverse when obstacle detected
- Optional LED lighting for enhanced visibility
- Long service life with low operational cost
Operation Applications
- Movie theaters
- Fitness halls
- Country clubs
- Fairgrounds
- Swimming Halls
- Fitness Gyms
- Stadiums
- Libraries
- Museums
- Parks
- Offices
- Exhibition halls
- Commercial buildings
Our Advantages
- 13+ years of turnstile manufacturing experience
- Customization service available (OEM/ODM)
- Cost-optimized designs without unnecessary features
- Quick response time (3 minutes average)
- Project solution assistance
Frequently Asked Questions
How long is your warranty period?
One-year guarantee & Lifetime technology support.
How does your factory control the quality?
Quality control from the beginning to the ending.
Can your machines be used outside?
With waterproof function, could be used outside.
How about the payment method?
If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (negotiable).
Which payment terms are you accept?
T/T, Western Union, LC, PayPal, etc.
