Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
|
Product Details:
Payment & Shipping Terms:
|
| Passing Width: | 60~180cm | Type: | Fully Automatic |
|---|---|---|---|
| Material: | 304 Stainless Steel | Communication: | RS485 Or TCP/IP |
| Size: | 1200*280*1000mm | Application: | Office\School\Airport\Subway\Outdoor,Apartment Door |
| Power Supply: | AC100V-240V | Working Environment: | Indoor / Outdoor ( Shelter) |
| High Light: | Durable Automatic Turnstile gate,Anti Rust Automatic Turnstile gate,Auto Reset electronic turnstile gates |
||
New Design Durable Full Automatic Turnstile Mechanism Outdoor Anti-Rust auto reset turnstile bridge gate
Product Application
1. The complete stainless steel construction is suited for interior or exterior application.
2. It is optimized affordable solution for Airport, Lobby, commercial office building, factory, bus station, game park, colleges and banks.
3. Our pedestrian barrier Gates can provide a level of security to meet any challenging requirements, including anti-pinch, time attendance, or passing management, etc.
4. Our Turnstile can combine with different kinds of access readers,like: RFID Reader&Fingerprint Reader &Coin Machine&QR code/Bar code System&ESD Tester Access Control(If you have access control system,you can only purchase our turnstiles,if not, our side will install the access control system for you),except access control system,also can use remote to control.
5. IP54
6. MOQ: 1 unit.
Technical data list
|
SPECIFICATIONS FOR MACHINE
|
|||
|
1
|
Cabinet dimension
|
1200 (L) x 280 (W) x 1000 (H) mm
|
|
|
2
|
Cabinet material
|
304 stainless steel (SUS316 can be custom-made)
|
|
|
3
|
Lane length
|
normally 600~900 mm, can lengthen
|
|
|
4
|
Opening/closing time
|
0.6s
|
|
|
5
|
Access mode
|
single in/out or Bidirectional
|
|
|
6
|
Access Readers
|
rfid cards , fingerprint, Barcode ,ticket scanners
|
|
|
7
|
More Optional function
|
coin controller, counter , sound alarm, speakers
|
|
Feature & Function
1. Flap barrier is with 485 interface for long-distrance control concern.
2. Anti-rush function: If there is no open single, arm will be holding tightly.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
7. Problem-self-checking function.
8. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
9. Stable running with little noise.

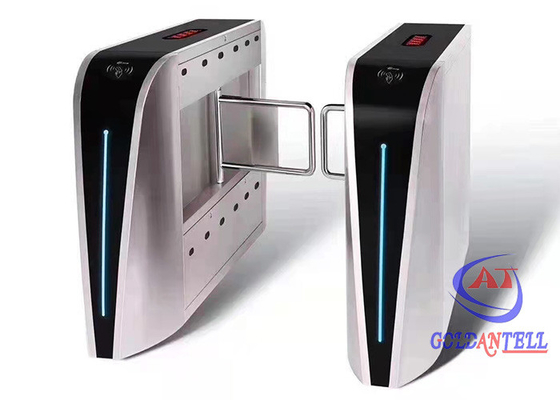

Product Photo
a. Single-core type b. Double-core type
FAQ
Q1. What is your terms of packing?
A: First, we will pack our goods in a protective film. Then we will put it in neutral cartons. Third, we will pack it in a standard export wooden case to protect the goods perfectly.
Q2. What are your terms of payment?
A: 100% paid before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Application Project
