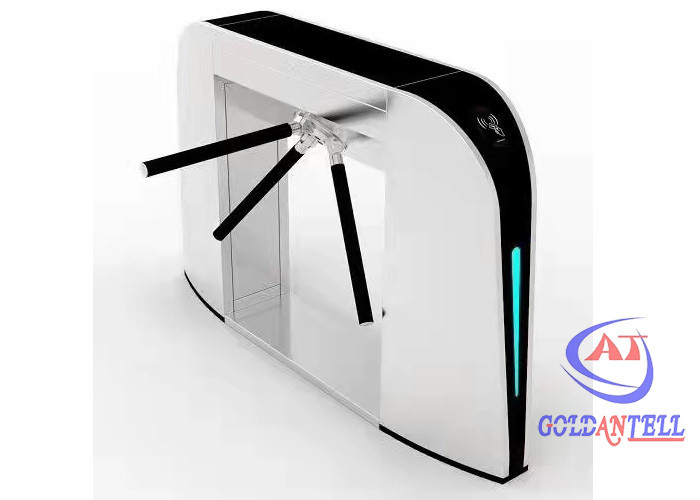

Half Height Security Tripod Turnstile Gate Access Control QR Code RFID Card Reader

Large Image : Half Height Security Tripod Turnstile Gate Access Control QR Code RFID Card Reader

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE certificated
Model Number:	GAT-330 new

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	carton +crate, or closed wooden case
Delivery Time:	5-7 working days after received your payment
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1,000pcs per month

Contact Now

Detailed Product Description

Size:	1200LW280H1000mm	Working Environment:	-10-70 Degree
Pass:	Bi-directional Pass	Control Type:	Manual, Semi-auto, Or Full Automatic
Material:	304 Stainless Steel,thickness Is No Less Than 1.3mm	Warranty:	1 Year
Arm Length:	510mm	Power Supply:	110~240 V(AC)
Highlight:	Security Tripod Turnstile Gate , Half Height Tripod Turnstile Gate , SS304 Half Height Turnstiles

Half Height Tourniquet Security Access Control QR Code Ticket RFID Card reader Automatic Tripod Turnstile Gate

Product Introduction

1. Tripod turnstile is simple, economical and compact equipment for entrance or exit solutions.

2. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).

3. Type: single-motor (only suit for single passage), double-motor ( suit for two passages at same time).

4. Portable, used at a wide variety of settings, including factories, stadiums, power plants, amusement parks, ski resorts etc.

5. In case of emergency, the turnstile horizontal arm will drop down to allow free passage when power off.

Specifications of tripod turnstile
Item Number	GAT-330
Item Type	Full automatic, semi-auto, or manual operation
Housing material	standard 304# stainless steel
Size	12002801000mm
Working voltage	AC220/110±10%V; 50±10%HZ
Power Consumption	20W
Passage width	≤600 mm
Pass speed	30 persons/min
Normal running life	3 million
LED light	optional, direction arrow
Direction	single or bi-directional (optional)
Emergence	When powering off, arm open
Mechanism	Solenoid lock
Working environment	indoor/ ourdoor avaiable
Communication interface	RS485, TCP/IP

Features & Functions

1. Auto replacement function, re-position after person pass by.
2 Anti -tail function auto-lock once turn120° or 60°.
3. Arms auto drop when power off, ensure unblocked when accident.
4. Railing will be off when power off
5. Counting function, if read the card for N times, N persons can pass before the railing close, N<=8(optional function)
6. Voice prompt and display screen available (optional)
7. External counter can be connected to count number of passed people (optional)
8. RS485communication, PC command through serial port is allowed (optional)
9. Alarming output for pushing the railing without permission(optional).

10. Single direction or double direction optional

Packing & shipping

Package details	Inner package - bubble bags Outer package -a whole crate package is advised; or wooden case package.
Shipment terms	if <10pc, ship in 7 working days > 50, ship in 10-15 working days For customized product, with ship in 7-12 working days according to the detailed customized requirements

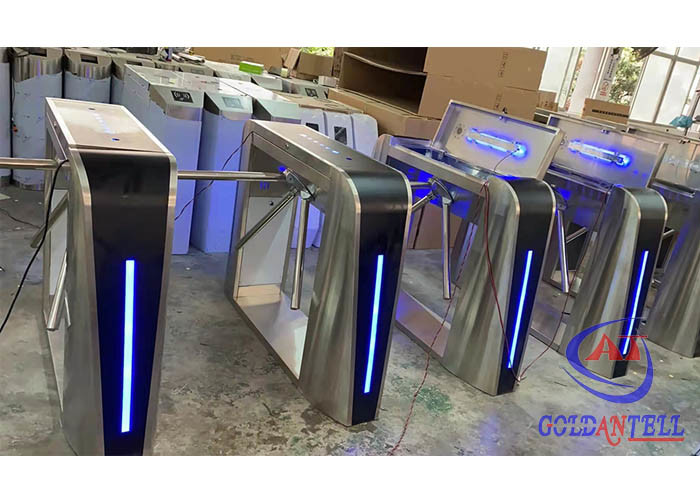

Product Photo

Half Height Security Tripod Turnstile Gate Access Control QR Code RFID Card Reader 0

FAQ

Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q. What is your sample policy?
A: We offer samples if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q. Do you test all your goods before delivery?
A: Yes, we have the 100% test before delivery, and will provide a testing video for your confirmation before shipment.

Application Projects

Office buildings

Hotel,

Factory,

Bank,

Prison,

Hospital,

School
