168mm Slim Cylindrical Swing Barrier Gate Acrylic Arm Bar Code Speed Turnstile Gate
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-620 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,Western Union,L/C |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| OEM | OEM Arm Length,custom Logo,custom Size | Pole Size | Diameter 168mm ; Height 1050mm |
|---|---|---|---|
| Passage Width | 530mm-830mm | Power Supply | AC100V-240V |
| Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Type | Automatic Intelligent Swing Barrier Gate |
| Communication Port | RS485 ,TCP/IP | Material | 304 Stainless Steel/316 Stainless Steel |
| Highlight | 168mm Swing Barrier Gate,Cylindrical Swing Barrier Gate,acrylic arm Speed Turnstile Gate |
||
Product Description

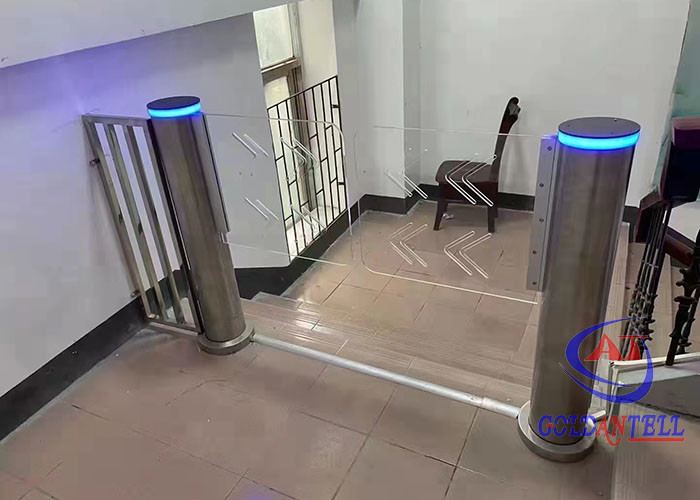

168mm Slim Cylindrical Swing Barrier Gate with Acrylic Arm and Bar Code Reader
Premium stainless steel speed gate turnstile featuring RFID card reader compatibility, designed for high-traffic access control in commercial and institutional environments.
Key Features
- Constructed with 304/316 grade stainless steel for superior anti-rust and durability
- Elegant rectangular box design with brake lever for controlled passage management
- Integrated with machine, electronics, and microprocessor control systems
- Compatible with multiple identification methods: IC card, ID card, bar code, and fingerprint
- Ideal for high-security areas including neighborhoods, hotels, subways, and corporate buildings
Technical Specifications
| Working Voltage | AC220±10%V 50±10%HZ |
|---|---|
| Dimensions | 168mm diameter pillar, 1050mm height |
| Passage Width | 550mm - 1800mm |
| Swing Arm Rotation | 180 degrees |
| Operation Direction | Single or bi-directional (configurable) |
| Opening/Closing Speed | 1 second |
| Control Methods | Push button, RFID card, fingerprint recognition |
| Throughput Capacity | 40 persons/min (open), 25-30 persons/min (closed) |
| Operational Lifespan | 3 million cycles |
| Environmental Rating | Indoor/outdoor (with cover), -10℃～70℃ |
| Drive Mechanism | DC 24V brush motor |
Standard Security Functions
- Intrusion Alarm: Triggers when arms are forced illegally and locks mechanism
- Automatic Locking: Secures gate when receiving no open signal
- Collision Protection: Arms open automatically upon impact to protect internal mechanisms
- Timed Reset: Cancels access authority after 10 seconds (adjustable 1-60s)
- Anti-Pinch System: Mechanical and infrared protection against entrapment
- System Integration: Compatible with access control, biometric, and ESD systems
- Status Indicators: Flashing light alerts for maintenance identification
Optional Enhancements
- Advanced infrared logical judgment (8-10 pairs)
- Voice prompt and sound/light alarm systems
- LED people counting display
- Extended box housing and swing arm lengths
- Adjustable normally open/closed operation modes
Application Environments
| Entertainment Venues | Movie theaters, clubs, gyms, swimming pools, fairgrounds |
|---|---|
| Public Facilities | Subways, airports, libraries, museums, stadiums, parks |
| Commercial Spaces | Hotels, offices, banks, hospitals, schools, residential complexes |
Packaging Options
- With access control system: Sealed wooden case
- Without access control: Choice of crate or closed wooden box
- Pair packaging: Two packages required
Customization Options
- Cabinet appearance tailored to client specifications
- Stainless steel thickness: 1.2mm-2.0mm
- Material grades: 304 or 316 stainless steel
- Surface finishes: Satin, polished, anti-fingerprint, frosted, electroplated, or baked
Competitive Advantages
24-month quality guarantee
Custom designs and logos available
Fast production and delivery
Engineering support team
Distributor discounts
Export-standard packaging
CE and ROSH certified
