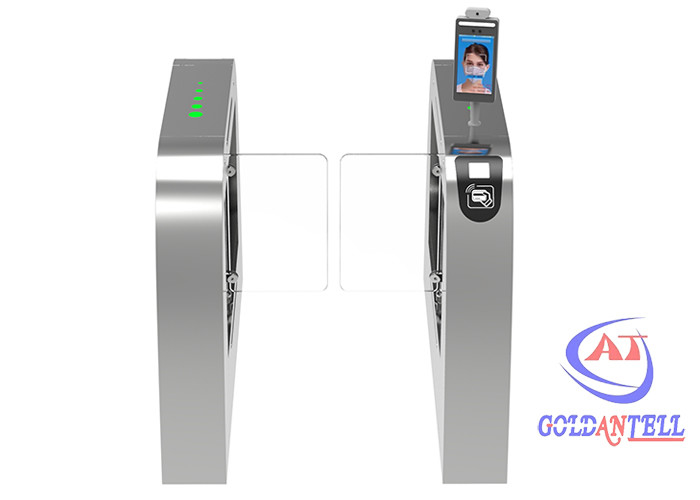

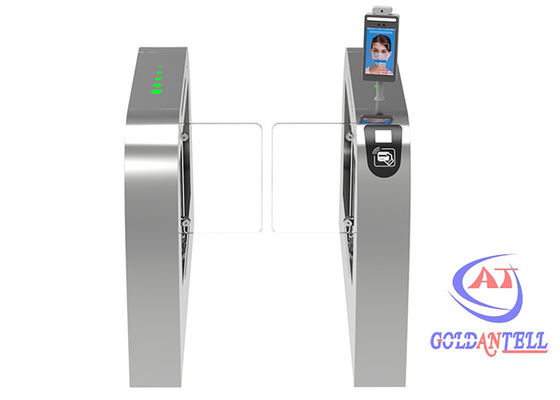

High Security Half Height Turnstiles Anti Tail With Face Recognition Camera Finger Print
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-639 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7-9 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Size | 1200*280*1000mm | Communication Port | RS485 ,TCP/IP |
|---|---|---|---|
| Application | Movie Or Fitness Certer Or Hotel Or Restaurant Entrance | Product Name | Width 900mm Double Wing Turnstile |
| Passway Width | In 900mm (can Be Custom According To Your Requirement) | N.W | 65kg |
| G.W | 70kg | Material | 304stainless Steel |
| Highlight | High Security Half Height Turnstiles,Anti Tail Half Height Turnstiles,Finger Print High Security Turnstile |
||
Product Description
High Security Half Height Turnstiles with Anti-Tailgating, Face Recognition & Fingerprint
Waist-high Security Turnstile with Face Recognition & Time Attendance Control
Product Introduction
- Installation & Applications: Subways, airports, stations, libraries, movie theaters, fitness centers, clubs, swimming pools, gyms
- Control Systems: Compatible with RFID cards, fingerprint systems, facial recognition, and other access control systems
- Special Feature: Double-wing design allows for 900mm passage width
Technical Parameters
| Parameter | Specification |
|---|---|
| Working Voltage | AC220±10%V, 50±10%HZ |
| Pass Width | 600mm standard or 900mm (custom) |
| Pass Speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Normal Running Life | 3 million cycles |
| Opening/Closing Time | 0.6 seconds |
| Startup Time | 3 seconds after power on |
| Reset Time After Failure | 10 seconds |
| Working Environment | Indoor/outdoor (with cover) -10℃～70℃ |
| Communication Interface | Standard RS485 interface, distance ≤1200m |
| Input Interface | +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA |
| Relative Humidity | ≤90% (non-condensing) |
Face Recognition Device Specifications
- Standard face database capacity: 10,000 people
- Optional ID card reader, IC card reader and access control Wiegand signal output
- Built-in MIC with audio output interface
- 10.1-inch high-resolution LVDS LCD screen
- High-accuracy face recognition algorithm with offline capability (response time as fast as 0.2S)
Advanced Functionality
- Collision Avoidance: Arms automatically open when encountering resistance to protect internal mechanisms
- Automatic Reset: Cancels access authority if not used within adjustable time (1-60s)
- Infrared Options: 4 or 6 pairs of infrared sensors available
- System Integration: Compatible with access control, biometric, ESD, and consumption systems
- Bidirectional Operation: Supports entry and exit through same turnstile
- Anti-pinch Protection: Mechanical and infrared safety features prevent injury
- Security Enforcement: Automatically locks against unauthorized entry attempts
Competitive Advantages
- Custom Solutions: ODM/OEM services including custom designs, logos, packaging, and sizes
- Complete Systems: Full range of turnstiles and access control solutions
- Support: 16-hour professional customer service
- Warranty Service: Remote troubleshooting with free replacement parts within 1 year
