Coin Collector Smart Card Tripod Turnstile Gate Face Recognition Barcode Scanning System

Pubilc gym park coin collector turnstile smart card face recognition barcode scanning system for management

Quick Description

1. This Tripod Turnstile Item is more suitable for areas with high traffic, such as airport/railway/metro/bus/park entrance or exit. Sure, it is used in a wide variety of settings, including factories, stadiums, power plants, amusement parks, ski resorts etc.

2. Machine body is made of brushed 304 stainless steel which is robust, rigid, anti-rust, and durable.
3. Motorized arm rotation provides a very comfortable passage experience for patrons.

4. Type: full automatic ( arms auto on work status when power on); Semi-automatic; manual.
5. Tripod turnstile gate is economical ideal for indoor and outdoor settings, compact and cost-effective entrance solutions. Top reliability and ease of installation.
6. Compatible with various access control systems (such as face recognition terminal, QR code scanner, RFID device, Fingerprint and Bio-metric device), counter, coin acceptor, ESD tester, metal detection door, and so on.


Technology Parameters

Size	1400mm (L) * 280mm (W) * 1000mm (H)
Working voltage	AC110/220±10%V, 50±10%HZ
Working movement	Servo Motor ( custom for heavy traffic)
Arm width:	510 mm
Support force of arm:	60kg
Passage width:	≤600 mm
Time of opening:	0.2 second
Pass speed:	35-40 persons/min
Emergence:	When power off, arms open automatically
Normal running life:	3 million
LED light:	direction arrow
Direction:	single or bi-directional (optional)
Working environment:	indoor/outdoor (with a tent over) -10℃~70℃
Relative humidity:	≤90% coagulation free
Communication interface:	standard RS485 interface, distance ≤1200m
Housing material	domestic standard 304# stainless steel
Input interface:	+12V level signal or pulse width>100ms 12V pulse, drive current>10mA



Feature & Function

1. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work.

2. It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board.

3. Red and green light to show pass or stop, leisure to exit and entrance.

4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work.

5. Arms auto be lifted and fall when electricity is cut-off.
6. All the system runs stable with little noise and no mechanical impact.

7  Anti-tail function auto-lock once turn120° or 60°.


Application Location

♦ Exhibition halls

♦ Stadium

♦ Museums, Apartments

♦ Residence Area

♦ Movie theaters

♦ Fitness Gym.

♦ Factory

♦ Hospital

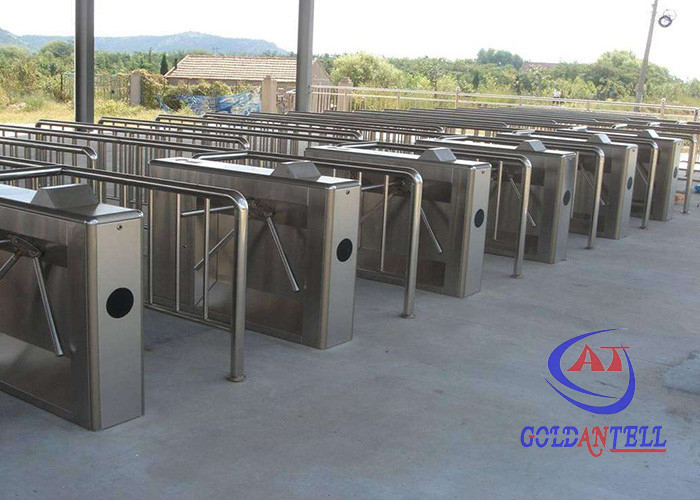

Detailed Photos



FAQ

Q: Can your product work under our standard power supply 120volt?

A: of course, no problem! Our items run stable between 110~240volts.



Q. Can you produce according to the sample?
A: Yes, we can produce with reference to your samples or technical drawings. We can build the molds and fixtures.



Q. What is your sample policy?
A: We offer samples if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q. Do you test all your goods before delivery?
A: Yes, we have the 100% test before delivery, and will provide a testing video for your confirmation before shipment.
