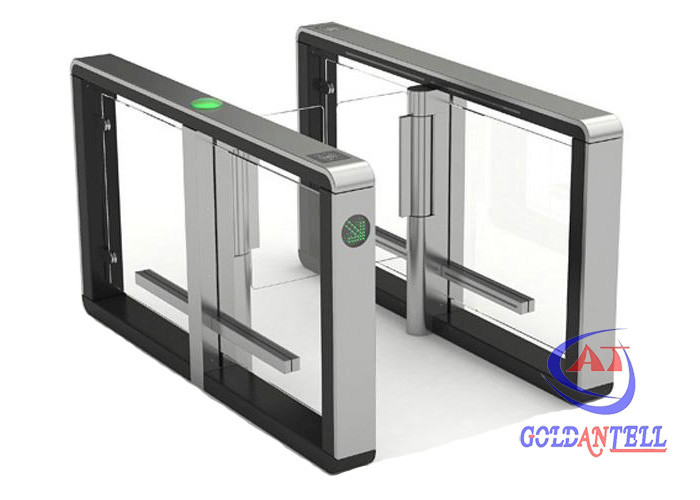

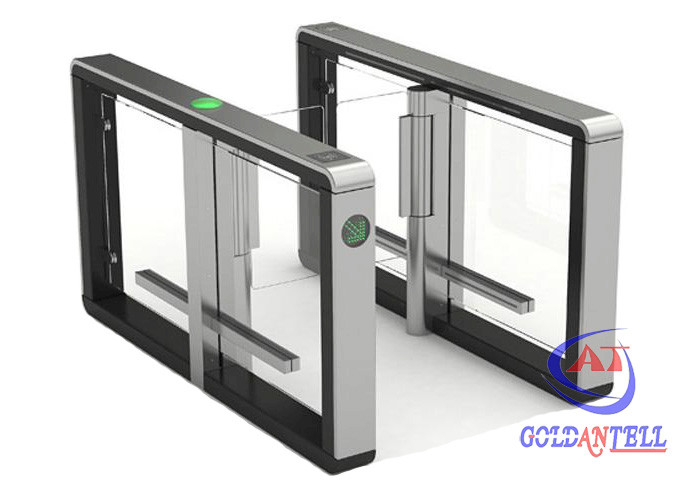

Glass door automatic full height flap turnstile With Fingerprint, Card, QR Access Control wing Barrier
Brief Description
1. Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
2. Its sleek design and smaller footprint make it compatible with any upscale business or institutional environment.
3. Prevent illegal in and out. Arms off in emergency case.
4. The turnstile combines slim line styling with one of the industry's widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation.
5. It has a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that rapid down rod control may be realized in an emergency.
Technical specification
| Size |
1500mm (L) * 120mm (W) * 1000mm (H) |
| Working voltage |
AC110/220±10%V , 50±10%HZ |
| Working environment |
Indoor / Outdoor (Shelter) |
| Operation Temperature |
-10 °C – 70 °C |
| Passage width |
650 mm (or customized 900mm) |
| Time of opening |
0.2 second |
| Pass speed |
35 persons/min |
| Emergence |
When power off, arms open automatically |
| LED light |
direction arrow |
| Direction |
single or bi-directional (optional) |
| Relative humidity |
≤90% coagulation free |
| Communication interface |
standard RS485 interface, distance ≤1200m |
| Housing material |
domestic standard 304# stainless steel |
| Input interface |
+12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Security Features
1. The whole system runs smoothly, long-life performance, high operation dependability and fast response.
2. Alarm function, in case of illegal intrusion and reverse intrusion.
3. Infrared sensor to prevent pinch pedestrians.
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
Service & Shipping
1. Any email will be checked in 5 minutes, any inquiry will be replied to within 1 hour, and any solution will be supplied in 1 day.
2. Professional R&D team and manufacturer, supply OEM & ODM.
3. Best quality, Fashion design, reasonable & competitive price, fast lead time.
4. After-Sale Service: standard one-year warranty and whole-life technical support.
Operation Application
♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
Why Choose Goldantell?
1. We Focus on Turnstile for more than 13 years.
2. We do customize Service. OEM, OEM is available.
3. We Optimize For Lower Cost, remove unnecessary features/use mould design, save your money!
4. We Timely Response every customer! Response to customers whoever did business with us in 3mins, and assist with project solutions later.
FAQ
Q: Are you a factory or trading company?
A: We are a factory located in Shenzhen, Guangdong province.
