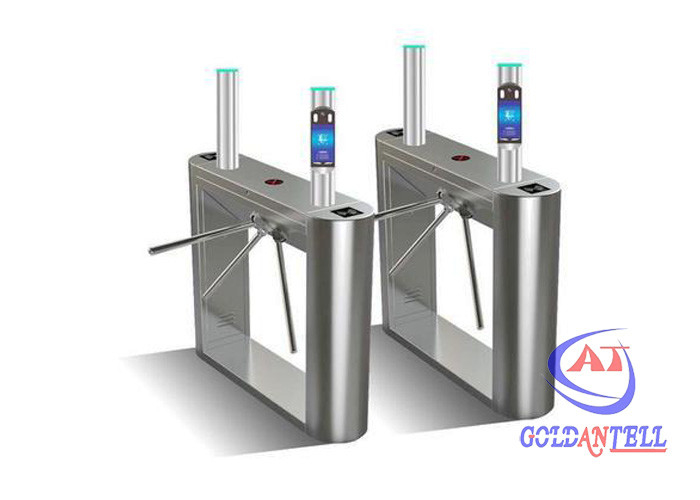

Double Direction Facial Recognition Turnstile Barrier System 1200mm Long

Large Image : Double Direction Facial Recognition Turnstile Barrier System 1200mm Long

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE certificate
Model Number:	GAT-302

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	carton +crate, or closed wooden case
Delivery Time:	5-7 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Certificate:	CE	Power Supply:	AC 100~240 Volts, 50/60HZ
Material:	304 Stainless Steel, (or Custom 316)	Dimension:	L1200xW280xH1000mm
Passage Width:	600mm	Working Environment:	Indoor / Outdoor ( Shelter),indoor
Warranty:	12 Months	Direction:	One-way,bi-direction Adjustable
Highlight:	Double Direction Facial Recognition Turnstile , Flap turnstile with face recognition , 1200mm Facial Recognition Turnstile

Double Direction Facial Recognition Turnstile Barrier System 1200mm Long

Simple Instroduction

1. This is simple, economical and compact equipment.

2. It can be integrated with any kind of Face Recognition access control system or others like RFID device, Push button, Fingerprint and Biometric device.

3. using 7 inches high-resolution top LVDS LCD screen;

4. two-way, bi-directional passing.

5. Shape Type: single-core type bridge style.

6. The body is made of 304 stainless steel which is robust, rigid, anti-rust, and durable.

Technology parameter

1) Specifications of facial recognition system terminal
size specifications	155mm105mm660mm (length * width * height)
memory	2GBDDR + 8GB EMMC
Screen	7 inches LCD screen
Wired Network	1 x RJ45 Ethernet socket
Wiegand / RS23	Wiegand format 26/34, RS232
relay control module	3 input, 2 output
Card reader	optional ( IC card reader/ID card reader)
2) Specifications of Tripod turnstile
Item Number	GAT-302
Housing material	standard 304# stainless steel
Size	12002801000mm
Working voltage	AC220/110±10%V; 50±10%HZ
Power Consumption	20W
Passage width	≤600 mm
Pass speed	30 persons/min
Normal running life	3 million (Continuous Opening and Closing Operation)
LED light	optional, direction arrow
Direction	single or bi-directional (optional)
Emergence	When powering off, arm open

Features & Functions

1, using high-accuracy face recognition algorithm, can work offline, the fastest 0.2S to determine whether it is, voice prompts, multiple recognition modes to meet the needs of different scenarios;
2, A PC can control multiple face recognition devices;
3, using 200W high-performance high-definition wide dynamic camera module;
4. The single-chip microcomputer is used to control the light-sensing module to solve the problem of the bounce of the critical point of light.

5. Easy integration. Reader holder bracket is available for installing RFID wristband / token / cards reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket as well.

6. With function of self-examine and alarm, it is convenient for maintenance and use.

7. Emergency evacuation.During power failure, three rods will automatically lift down to be free for passing.

8. Being able to program running status by the small keyboard in the main board.

FAQ

Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q. What is your sample policy?
A: We offer samples if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q. Do you test all your goods before delivery?
A: Yes, we have the 100% test before delivery, and will provide a testing video for your confirmation before shipment.

Product Application

♦ Public Places: Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area.

♦ Entertainment Places: Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.

♦ Business Organizations: Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
