RFID Ticket Counting Tripod Turnstile Barrier Gate Fingerprint Reader 3 Roller Gate System

Newly designed RFID ticket counting tripod turnstile fingerprint reader automatic 3 roller gate system

Quick Description Of Tripod Turnstile

1. The portable turnstile is the perfect waist high portable turnstile for a variety of applications ranging from athletic facilities, cafeterias, and schools, to amusement parks, stadiums, and office buildings.

2. It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board.

3. Three rods can be lifted and fall when electricity is cut-off

4. CE certificated. Type:

5. The body is made of brushed stainless steel which is robust, rigid, anti-rust, and durable.

6. Type: Semi-automatic; manual, and full automatic ( arms auto on work status when power on);

Technology Parameters of Tripod Turnstile

Size	1200mm (L) * 280mm (W) * 1000mm (H)
Working voltage	AC110/220±10%V, 50±10%HZ
Working movement	DC24V solenoid valve
Arm width:	510 mm
Support force of arm:	60kg
Passage width:	≤600 mm
Time of opening:	0.2 second
Pass speed:	30 persons/min
Emergence:	When power off, arms open automatically
Normal running life:	3 million
LED light:	direction arrow
Direction:	single or bi-directional (optional)
Working environment:	indoor/outdoor (with a tent over) -10℃~70℃
Relative humidity:	≤90% coagulation free
Communication interface:	standard RS485 interface, distance ≤1200m
Housing material	domestic standard 304# stainless steel
Input interface:	+12V level signal or pulse width>100ms 12V pulse, drive current>10mA



Feature & Function Of Tripod Turnstile

1. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work.

2. Open signal with memory or with out set function.

3. Use anti-passback movement, when people turn the three arms up to around 60 degrees then arms can no longer turn back.

4. Use hydraulic shock absorb, can effectively control the speed of the turntable, and no sound when rotation. reduce the vibration as well.
5. Diverse control mode optional, changeable due to varying, convenient for your manage.

6. Auto replacement function, re-position after person pass by.



Application Location

♦ Exhibition halls

♦ Stadium

♦ Museums, Apartments

♦ Residence Area

♦ Movie theaters

♦ Fitness Gym.

♦ Factory

♦ Hospital

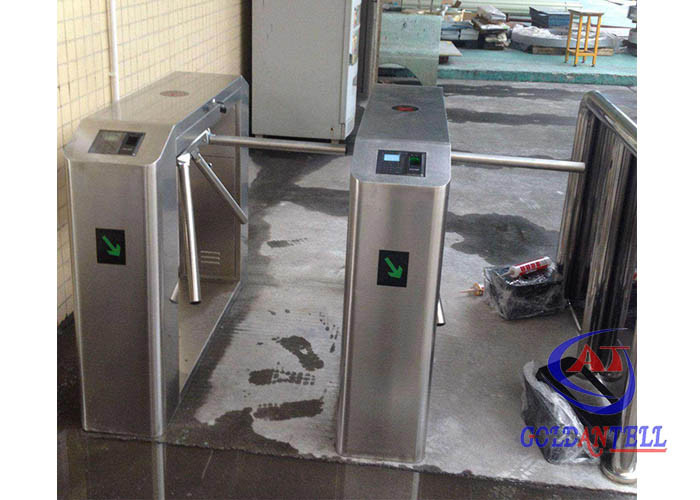

Product Photos Of Tripod Turnstile



FAQ

1) How about your package?

Vivian: Seaworthy wooden case + Foam.

2) Can your machines be used outside?

Vivian:With waterproof function, could be used outside

3) How about the lead time?

Vivian: Regular products need 5-8 working days. The customized products need 9-13 working days.

4) What is your MOQ?

Vivian: Any quantity is acceptable.

5) How about the payment method?

Vivian: Standard products: 50% deposit, 50% balance payment before shipment.
