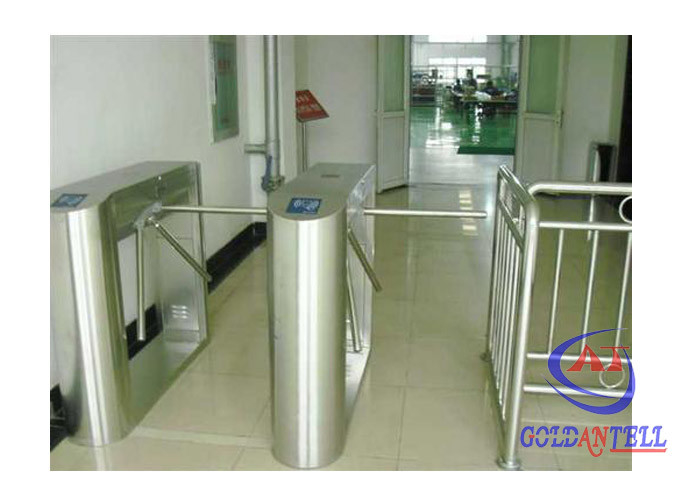

Integrated Tripod Turnstile Gate DC Brushless Card Swipe Entrance Machine

DC Brushless card swipe entrance machine tripod turnstile gate with Automatic passenger counter

Quick Description Of Tripod Turnstile

1. This rugged, multi-purpose electric turnstile provides bi-directional pedestrian access control or counts attendance.
2. Use hydraulic shock absorb, can effectively control the speed of the turntable, and no sound when rotation. reduce the vibration as well.

3. Wherever portable control of pedestrian traffic is necessary, these waist high turnstiles will perform flawlessly.

4. It can be integrated with any kind of access controller system (covering: face recognition terminal, QR code scanner, RFID device, Push button, Fingerprint and Bio-metric device).

5. Optional Counter: has a LCD screen, can be mounted on turnstile surface, can count the numbers of people who go in / out the gate.

Technology Parameters Of Tripod Turnstile

Size	1200mm (L) * 280mm (W) * 1000mm (H)
Working voltage	AC110/220±10%V, 50±10%HZ
Working movement	DC24V solenoid valve
Arm width:	510 mm
Support force of arm:	60kg
Passage width:	≤600 mm
Time of opening:	0.2 second
Pass speed:	30 persons/min
Emergence:	When power off, arms open automatically
Normal running life:	3 million
LED light:	direction arrow
Direction:	single or bi-directional (optional)
Working environment:	indoor/outdoor (with a tent over) -10℃~70℃
Relative humidity:	≤90% coagulation free
Communication interface:	standard RS485 interface, distance ≤1200m
Housing material	domestic standard 304# stainless steel
Input interface:	+12V level signal or pulse width>100ms 12V pulse, drive current>10mA



Feature & Function

1. Safety protection function: the tripod turnstile gate will drop down automatically when power off in case of emergency
2  Anti -tail function auto-lock once turn120° or 60°.

3. Red and green light to show pass or stop, leisure to exit and entrance
4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work.
5. Diverse control mode optional, changeable due to varying, convenient for your manage.

6. Auto replacement function, re-position after person pass by.



Product Design



Application Location

♦ Exhibition halls

♦ Stadium

♦ Museums, Apartments

♦ Residence Area

♦ Movie theaters

♦ Fitness Gym.

♦ Factory

♦ Hospital

Our Advantages
1. We Focus on Turnstile for more than 13 years.
2. We do customize Service. OEM, OEM is available.
3. We Optimize For Lower Cost, remove unnecessary features/use mould design, save your money!
4. We Timely Response every customer! Response to customers whoever did business with us in 3mins, and assist with project solutions later.



FAQ
1. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
2. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
3. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
4. Can we visit your factory?
Vivian: Yes. Any time will be welcome.
5. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
