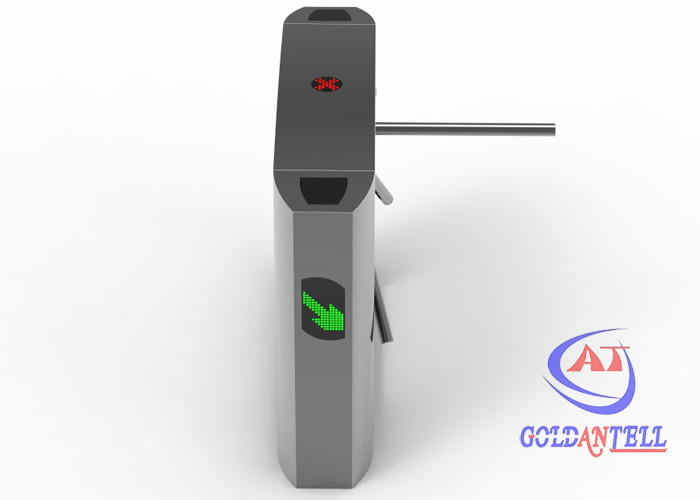

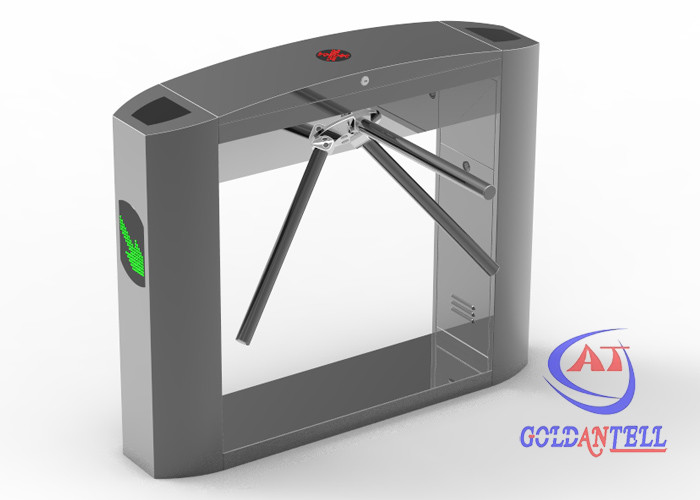

Tailgating Alarm Tripod Security Gates Semi Automatic CE Approved

Tailgating Alarm Tripod Security Gates Semi Automatic CE Approved

Fast delivery Tailgating Alarm Semi Automatic 3 pod turnstile CE approved electrical mechanism

Quick Description

1. It can be integrated with any kind of access controller system (covering: face recognition terminal, QR code scanner, RFID device, Push button, Fingerprint and Bio-metric device).

2. Use anti-passback movement, when people turn the three arms up to around 60 degrees then arms can no longer turn back.

3. Use hydraulic shock absorb, can effectively control the speed of the turntable, and no sound when rotation. reduce the vibration as well.

4. Type: full automatic ( arms auto on work status when power on); Semi-automatic; manual.

5. The body is made of brushed stainless steel which is robust, rigid, anti-rust, and durable.

6. Can equip higher configuration for areas with high traffic, such as airport/railway/metro/bus/park entrance or exit.

Technology Parameters

Size	1200mm (L) * 280mm (W) * 1000mm (H)
Working voltage	AC110/220±10%V, 50±10%HZ
Working movement	DC24V solenoid valve
Arm width:	510 mm
Support force of arm:	60kg
Passage width:	≤600 mm
Time of opening:	0.2 second
Pass speed:	30 persons/min
Emergence:	When power off, arms open automatically
Normal running life:	3 million
LED light:	direction arrow
Direction:	single or bi-directional (optional)
Working environment:	indoor/outdoor (with a tent over) -10℃~70℃
Relative humidity:	≤90% coagulation free
Communication interface:	standard RS485 interface, distance ≤1200m
Housing material	domestic standard 304# stainless steel
Input interface:	+12V level signal or pulse width>100ms 12V pulse, drive current>10mA



Feature & Function

1. Safety protection function: the tripod turnstile gate will drop down automatically when power off in case of emergency
2  Anti -tail function auto-lock once turn120° or 60°.

3. Red and green light to show pass or stop, leisure to exit and entrance
4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work.
5. Diverse control mode optional, changeable due to varying, convenient for your manage.

6. Auto replacement function, re-position after person pass by.



Product Design



FAQ

Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q. What is your sample policy?
A: We offer samples if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q. Do you test all your goods before delivery?
A: Yes, we have the 100% test before delivery, and will provide a testing video for your confirmation before shipment.



Application Location

♦ Exhibition halls

♦ Stadium

♦ Museums, Apartments

♦ Residence Area

♦ Movie theaters

♦ Fitness Gym.

♦ Factory

♦ Hospital
