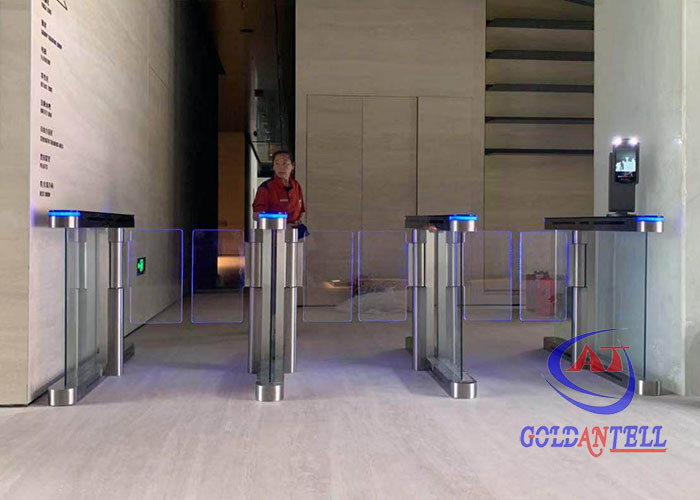

Optical Face Scanner Swing Barrier Gate RFID Bi Directional Pass Barrier System

  • Optical Face Scanner Swing Barrier Gate RFID Bi Directional Pass Barrier System
  • Optical Face Scanner Swing Barrier Gate RFID Bi Directional Pass Barrier System
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-custom
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Office\School\Airport\Subway\Outdoor Dimension 1400 * 120 * 1000mm
Power Supply AC100V-240V Passing Speed 45persons/min
Driving Motor 24V Brushless DC Motor Usage Subway Station Mall
Material Stainless Steel 304/316 Lane Width 60,90,110cm Or Others
Highlight

RFID Swing Barrier Gate

,

Bi Directional Swing Barrier Gate

,

316ss Swing Barrier Gate
Leave a Message
Product Description
Optical Face Scanner Swing Barrier Gate RFID Bi Directional Pass Barrier System
High-Security Optical Face scanner hotel turnstile RFID bi-directional pass barrier system
Key Features
  • Integrated RFID card reader, face recognition and QR code scanner for enhanced user experience
  • High flow rate with advanced anti-tailgate functionality
  • Real-time indicator and LED light display improves passage rate and maintenance
  • Auto-reset feature with adjustable time (1-60s, default 10s)
  • Multiple alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
  • Bi-directional or single way operation options
  • Gate automatically opens during power failure to meet fire safety requirements
Technical Specifications
No. Parameter Specification
1 Cabinet dimension 1400 (L) x 120 (W) x 1000 (H) mm
2 Cabinet material 304 stainless steel (316 ss can be custom-made)
3 Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
4 Opening/closing time 0.2s
5 Arm material Thickness 10mm Acrylic, or tempered glass or steel (custom)
6 Access mode Single in/out or Bidirectional
7 Passthrough Width 900mm (or custom)
8 Mechanism DC Brushed motor+Clutch (or Servo motor)
9 Communication interface RS485, TCP/IP
10 Infrared sensor 6~10 pairs
11 Optimal flow rate 40 persons/min (open), 35 persons/min (closed)
12 Reset time after break down Default 10s (adjustable)
13 MCBF 5,000,000 Cycles
14 Working humidity 30%~95%
Security Features
  • Anti-Tailgating feature prevents unauthorized entry
  • Automatic wing opening during power interruption with N/C mode recovery (optional)
  • Fast opening and closing time
  • Built-in mechanical lock prevents forced opening of swing flaps
  • Fail-safe design retracts swing flaps during power failure
  • Active infra-red beams detect personnel/objects to prevent injury or damage
  • Long service life with low operational cost
Operation Applications
Bank
Fitness Gym
Factory
Hotel
Movie theaters
Office buildings
Optical Face Scanner Swing Barrier Gate RFID Bi Directional Pass Barrier System 0
Packing Details
  • Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
  • Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging
  • Professional, environmentally friendly, convenient and efficient packaging services provided
Frequently Asked Questions
How long is your warranty period?
One-year guarantee & Lifetime technology support.
How about the payment method?
If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
Which payment terms are you accept?
T/T, Western Union, LC, PayPal, etc.
Can we visit your factory?
Yes. Any time will be welcome.
What is your MOQ?
Any quantity is acceptable.
