Auto Recognition 0.2s Swing Barrier Gate Access Column Swing Turnstile

  • Auto Recognition 0.2s Swing Barrier Gate Access Column Swing Turnstile
  • Auto Recognition 0.2s Swing Barrier Gate Access Column Swing Turnstile
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-611 SERIES
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pole Material Stainless Steel 304 Product Name Single Pole Swing Barrier Gate
Mechanism Brushless Motor/Servo Motor Lane Width 450mm-900mm(single Side)
Dimension 168mm Diameter, 1050mm High Application Office\School\Airport\Outdoor,Apartment Door
Power Supply AC100V-240V Passing Speed 30-35 Persons/min
Highlight

0.2s Swing Barrier Gate

,

0.2S swing turnstile

,

304SS Swing Barrier Gate
Leave a Message
Product Description

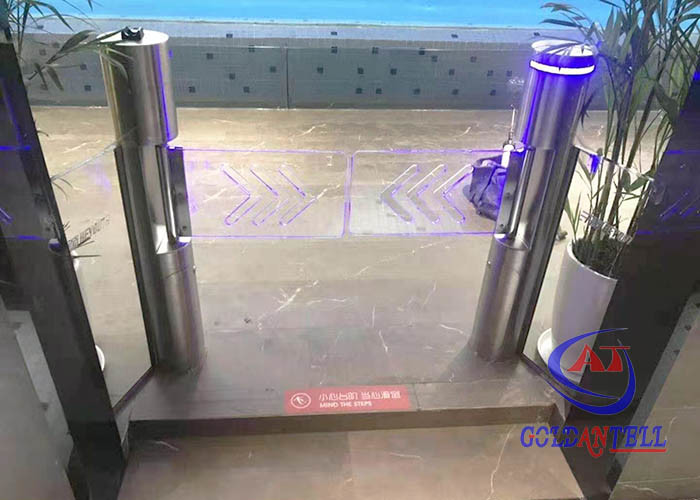

Auto Recognition 0.2s Swing Barrier Gate Access Column Swing Turnstile
Hot-sale automatic recognition access column swing turnstile panels type single channel manual pole price
Brief Description
  • Silk printing logo: Available
  • Modern and elegant design provides an ideal contactless solution for access control at sites with high aesthetic and comfort requirements
  • Panel swing Material: Stainless steel / Acrylic plate / Tempered glass (optional)
  • Built-in mechanical lock to prevent forced opening of arms
  • Widely used in Commercial Buildings, Airports, Metro Stations, Libraries, Factories, Exhibition Centers, Gyms, and Government Institutions
  • Bi-directional or single way operation (optional)
Technical Specifications
1 Cabinet dimension Diameter of pillar is 168mm, height is 1050mm
2 Cabinet material 304 stainless steel (316 ss can be custom-made)
3 Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
4 Opening/closing time 0.2s
5 Arm material Thickness 10mm Acrylic, or tempered glass or steel (custom)
6 Access mode Single in/out or Bidirectional
7 Passthrough Width 550 mm - 1800 mm for a pair, or 60-90mm for a pc
8 Swing arm angle 180 degree
9 Communication interface RS485, TCP/IP
10 Time of opening/closing 1 second
11 Optimal flow rate 40 persons/min (open), 35 persons/min (closed)
12 Reset time after break down Default 10s (can be customized)
13 MCBF 5,000,000 Cycles
14 Working humidity 30%~95%
Security Features
  • Problem-self-checking function
  • Automatic arm opening when power fails, with automatic holding when power returns
  • Anti-Tail gaiting feature to prevent unauthorized entry
  • Fast opening and closing time
  • Safety function (anti-pinching) with auto-reverse when obstacle detected
  • Optional green/red/blue light lining effect for enhanced visibility
  • Long service life with low operational cost
Operation Applications
  • Movie theaters
  • Fitness halls
  • Country clubs
  • Fairgrounds
  • Swimming Halls
  • Fitness Gyms
  • Stadiums
  • Libraries
  • Museums
  • Parks
  • Offices
  • Exhibition halls
  • Commercial buildings
Auto Recognition 0.2s Swing Barrier Gate Access Column Swing Turnstile 0
Our Advantages
  1. 13+ years of turnstile manufacturing experience
  2. Customization service available (OEM, ODM)
  3. Cost-optimized designs with unnecessary features removed
  4. Quick response time (3 minutes) with project solutions
FAQ
How long is your warranty period?
One-year guarantee & Lifetime technology support.
How does your factory control the quality?
Quality controlling from the beginning to the ending.
Can your machines be used outside?
With waterproof function, could be used outside.
How about the payment method?
If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated).
Which payment terms are you accept?
T/T, Western Union, LC, PayPal, etc.
