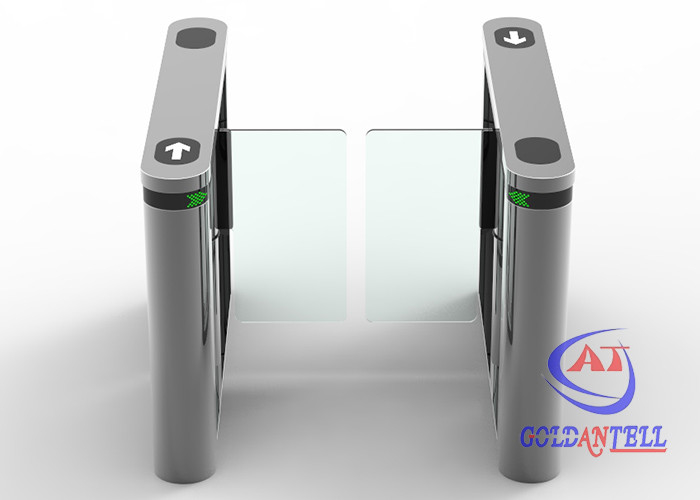

Facial detection SUS304 servo motor 1-year warranty Slim turnstile swing for check out counter
Brief Description
1. This turnstile with swing panels is designed in a modern and elegant style and provides an ideal contactless solution for access control at sites with high aesthetic and comfort requirements.
2. Widely used in Commercial Buildings, Airports, Metro Stations, Libraries, Factories, Exhibition Centers, Gyms, and Government Institutions.
3. Anti-Tail gaiting feature built in to prevent unauthorized entry.
4. Fast opening and closing time.
5. Built-in mechanical lock to prevent forced opening of swing flaps.
6. Higher flow rate and better anti-tailgate functions.
7. Bi-directional or single way optional.
Technical specification
| 1 |
Cabinet dimension |
1400 (L) x 168 (W) x 1000 (H) mm |
| 2 |
Cabinet material |
304 stainless steel (316 ss can be custom-made) |
| 3 |
Switching power supply |
AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 |
opening/closing time |
0.2s |
| 5 |
Arm material |
thickness 10mm Acrylic, or tempered glass or steel (custom) |
| 6 |
Access mode |
single in/out or Bidirectional |
| 7 |
Passthrough Width |
900mm (or custom) |
| 8 |
Mechanism |
DC Brushed motor+Clutch (or Servo motor) |
| 9 |
Communication interface |
RS485, TCP/IP |
| 10 |
Infrared sensor |
6~10 pairs |
| 11 |
Optimal flow rate |
40 persons/min (open), 35 persons/min (closed) |
| 12 |
Reset time after break down |
default 10s can be changed to fit different demands |
| 13 |
MCBF |
5,000,000 Cycles |
| 14 |
Working humidity |
30%~95% |
Security Features
1. Problem-self-checking function.
2. When the power off, arm open automatically and power on again, the arm will be held automatically.
3. Anti-Tail gaiting feature built in to prevent unauthorized entry.
4. Fast opening and closing time.
5. Safety function(anti-pinching). By default sliding wing will auto- reverse if IR sensor detected obstacle within the sliding wing area. This avoid sliding wing to accidentally hit onto to user. Can adding green/red/blue light lining effect along the edge of the sliding wing to ensure sliding wing is easily visible
6. Long service life with low operational cost.
Operation Application
1. Entertainment Places
Movie theaters,
Fitness halls,
Country clubs,
Fairground
Swimming Hall,
Fitness Gym.
2. Public Places
Subway, Stations,
Airports, Stadium,
Library, Museums
Parks, Offices,
Exhibition halls,
Commercial buildings.
Swing Speed Lane Photo
FAQ
1. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
2. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
3. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
4. Can we visit your factory?
Vivian: Yes. Any time will be welcome.
5. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
Why Choose Goldantell?
1. We Focus on Turnstile for more than 13 years.
2. We do customize Service. OEM, OEM is available.
3. We Optimize For Lower Cost, remove unnecessary features/use mould design, save your money!
4. We Timely Response every customer! Response to customers whoever did business with us in 3mins, and assist with project solutions later.
