SS304 Card Dispenser Remote Control 0.2s Swing Barrier Gate

  • SS304 Card Dispenser Remote Control 0.2s Swing Barrier Gate
  • SS304 Card Dispenser Remote Control 0.2s Swing Barrier Gate
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-custom
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Office\School\Airport\Subway\Outdoor Dimension 1400 * 120 * 1000mm
Power Supply AC100V-240V Passing Speed 45persons/min
Driving Motor 24V Brushless DC Motor Usage Subway Station Mall
Material Stainless Steel 304/316 Lane Width 60,90,110cm Or Others
Highlight

0.2s Swing Barrier Gate

,

SS304 Swing Barrier Gate

,

0.2s swing arm barrier gate
Leave a Message
Product Description

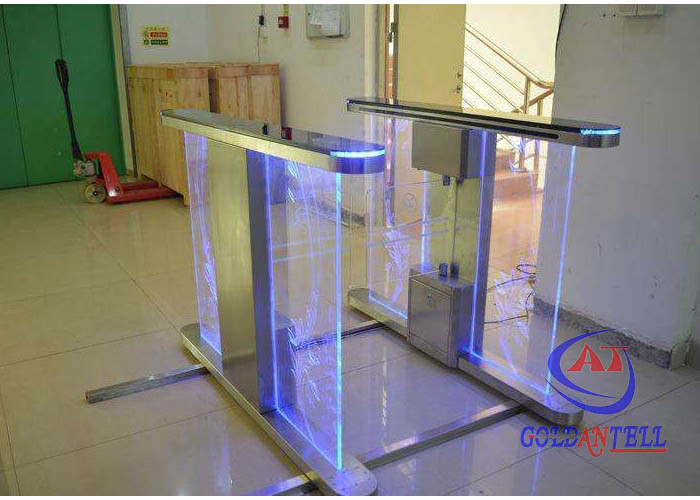

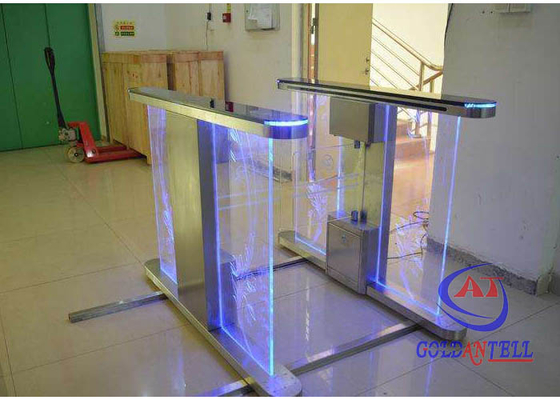

SS304 Card Dispenser Remote Control 0.2s Swing Barrier Gate
This turnstile with swing panels is designed in a modern and elegant style, providing an ideal contactless solution for access control at sites with high aesthetic and comfort requirements.
Key Features
  • Visible high glass panel prevents climbing over the gate for unauthorized access
  • Horizontal sliding glass panel provides unobstructed passageway
  • Higher flow rate with enhanced anti-tailgate functions
  • Automatic gate opening when power is off to meet fire protection requirements
  • Compatible with facial recognition, IC card, QR code, and fingerprint reading devices
  • Multiple alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
  • Bi-directional or single way operation options
Technical Specifications
1 Cabinet dimension 1400 (L) x 300 (W) x 1000 (H) mm
2 Cabinet material 304 stainless steel (316 ss can be custom-made)
3 Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
4 Opening/closing time 0.2s
5 Arm material Thickness 10mm Acrylic, or tempered glass or steel (custom)
6 Access mode Single in/out or Bidirectional
7 Passthrough Width 900mm (or custom)
8 Mechanism DC Brushed motor+Clutch (or Servo motor)
9 Communication interface RS485, TCP/IP
10 Infrared sensor 6~10 pairs
11 Optimal flow rate 40 persons/min (open), 35 persons/min (closed)
12 Reset time after break down Default 10s (can be customized)
13 MCBF 5,000,000 Cycles
14 Working humidity 30%~95%
Security Features
  • Anti-Tailgating feature to prevent unauthorized entry
  • Automatic wing opening during power interruption
  • Fast 0.2s opening and closing time
  • Built-in mechanical lock to prevent forced opening
  • Fail-safe design for unblocked access during power failure
  • Active infra-red beams for safety detection
  • Long service life with low operational cost
Operation Applications
Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairgrounds, Swimming Halls, Fitness Gyms
Public Places: Subway stations, Airports, Stadiums, Libraries, Museums, Parks, Offices, Exhibition halls, Commercial buildings
SS304 Card Dispenser Remote Control 0.2s Swing Barrier Gate 0
Why Choose Goldantell?
  • 13+ years of turnstile manufacturing expertise
  • Custom OEM services available
  • Cost-optimized designs without unnecessary features
  • Responsive customer service with 3-minute response time
Frequently Asked Questions
How long is your warranty period?
One-year guarantee & Lifetime technology support.
How about the payment method?
For orders ≤$5000: 100% T/T in advance. For orders >$5000: 50% T/T in advance and 50% before shipment (negotiable).
Which payment terms are accepted?
T/T, Western Union, LC, PayPal, etc.
Can we visit your factory?
Yes, visitors are welcome at any time.
How about your package?
Export: Wooden case with pearl wool and plastic wrap. Domestic: Bubble wrap plus carton or pearl wool with wooden packaging.
