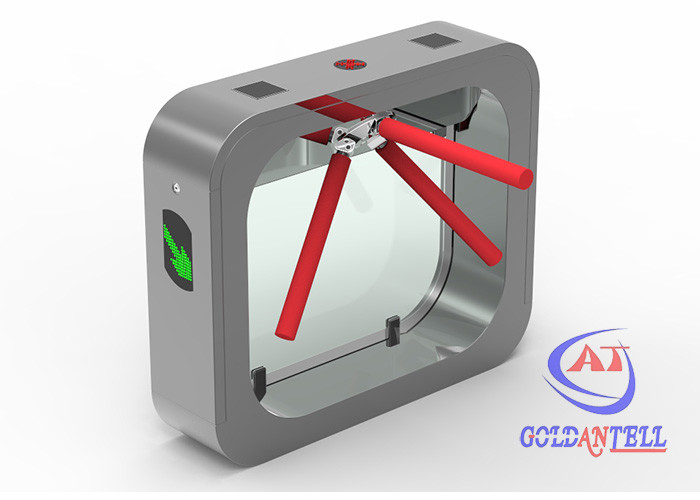

2 Channels Contactless Infrared Anti Jump Tripod Turnstile Gate

Large Image : 2 Channels Contactless Infrared Anti Jump Tripod Turnstile Gate

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE certificated
Model Number:	GAT-342

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	carton +crate, or closed wooden case
Delivery Time:	7-9 working days after received your payment
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1,000pcs per month

Contact Now

Detailed Product Description

Material:	304 Stainless Steel,thickness Is No Less Than 1.3mm	Warranty:	1 Year
Arm Length:	510mm	Power Supply:	110~240 V(AC)
Pass:	Bi-directional Pass	Control Type:	Manual, Semi-auto, Or Full Automatic
Highlight:	anti jump Tripod Turnstile Gate , Contactless Tripod Turnstile Gate , Contactless tripod barrier gate

2 Channels Contactless Infrared Anti Jump Tripod Turnstile Gate

Modern Contactless Time Attendance Infrared anti-jump tripod turnstile 2 channels

Product Profile

1. Tripod door is simple, economical and compact equipment for entrance solutions.

2. Turnstile 3 arm tripod is a double leg/bridge type tripod turnstile for locations aiming for pedestrian access control and medium level security.

3. The body is made of brushed stainless steel which is robust, rigid, anti-rust, and durable.

4. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).

5. In case of emergency, the turnstile horizontal arm will drop down to allow free passage when power off.

6. It is suitable for areas with high traffic.

Tripod Turnstile Parameters

Specifications
Item Number	GAT-342
Housing material	standard 304 stainless steel
Control Type	Full automatic, semi-auto, or manual operation
Size	12002801000mm
Working voltage	AC220/110±10%V; 50±10%HZ
Power Consumption	20W
Passage width	≤600 mm
Pass speed	30 persons/min
Mechanism	Solenoid lock
Normal running life	3 million
LED light	optional, direction arrow
Direction	single or bi-directional (optional)
Emergence	When powering off, arm open
Working environment	Indoor/ Outdoor available
Communication interface	RS485, TCP/IP

Features & Functions

1. Automatic reset function: when tripod turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically.

2. When power off, tripod turnstile arms will drop down automatically, which is complying with fire safety requirements.

3. Single direction or double direction optional
4. Railing will be off when power off
5. Counting function, if read the card for N times, N persons can pass before the railing close, N<=8(optional function)
6. Voice prompt and display screen available (optional)
7. External counter can be connected to count number of passed people (optional)
8. RS485communication, PC command through serial port is allowed (optional)
9. Alarming output for pushing the railing without permission(optional).

Special Functions

1. counter: which records the pass times.

2. Coin or Token collector;

3. Card collector.

Accessories of Tripod

2 Channels Contactless Infrared Anti Jump Tripod Turnstile Gate 0

Application Projects

♦ Exhibition halls

♦ Stadium

♦ Museums, Apartments

♦ Residence Area

♦ Movie theaters

♦ Fitness Gym.

♦ Factory

♦ Hospital

2 Channels Contactless Infrared Anti Jump Tripod Turnstile Gate 1

FAQ

1. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
2. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If the order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
3. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
4. Can we visit your factory?
Vivian: Yes. Any time will be welcome.
5. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap.

Our Advantages

1. Any email will be checked in 5 minutes, any inquiry will be replied to within 1 hour, and any solution will be supplied in 1 day.
2. Professional R&D team and manufacturer, supply OEM & ODM.
3. Best quality, Fashion design, reasonable & competitive price, fast lead time.
4. After-Sale Service: free warranty service. Also, we provide lifetime technical support online, by email, video, phone, etc.
