RS485 600mm Passage Ticket Reader Tripod Turnstile Gate

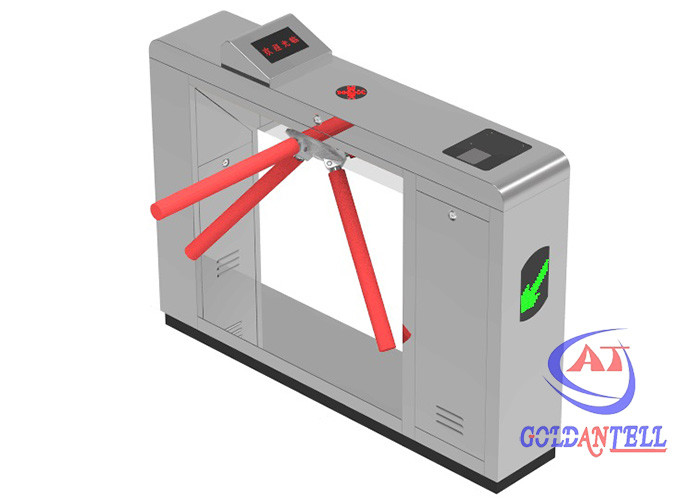

Large Image : RS485 600mm Passage Ticket Reader Tripod Turnstile Gate

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE certificate
Model Number:	GAT-DT301 series

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	closed wooden case
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Application:	Company,hotel,airport	Power Supply:	110~240 V(AC)
Direction:	In Or Out, Or Two Ways	Warranty:	1 Year
Odm/oem:	Accepted	Passage Width:	600mm
Motor:	DC Brushless Motor
Highlight:	Ticket Reader Tripod Turnstile Gate , 600mm Passage Tripod Turnstile Gate , RS485 IC Card Security Gate

High quality fast detection ticket reader tripod turnstile Optimized 12 months warranty IC card security gate

Product Description

1.Tripod turnstile gate is compact and cost-effective entrance solutions.
2.The body is made of brushed stainless steel which is robust, rigid, anti-rust, and durable.
3.Tripod turnstile gate is ideal for indoor and outdoor settings.
4.It can be integrated with any kind of access controller system (e.g.: face recognition terminal, QR code scanner, RFID device, Push button, Fingerprint and Bio-metric device).
6.In case of emergency, the tripod turnstile gate will drop down automatically when power off.

Technology Parameters

Size	1400mm (L) * 280mm (W) * 1000mm (H)
Working voltage	AC110/220±10%V, 50±10%HZ
Working movement	DC24V solenoid valve
Arm width:	510 mm
Support force of arm:	60kg
Passage width:	≤600 mm
Time of opening:	0.2 second
Pass speed:	30 persons/min
Emergence:	When power off, arms open automatically
Normal running life:	3 million
LED light:	direction arrow
Direction:	single or bi-directional (optional)
Working environment:	indoor/outdoor (with a tent over) -10℃~70℃
Relative humidity:	≤90% coagulation free
Communication interface:	standard RS485 interface, distance ≤1200m
Housing material	domestic standard 304# stainless steel
Input interface:	+12V level signal or pulse width>100ms 12V pulse, drive current>10mA

Feature & Function

1. Auto replacement function, re-position after person pass by.
2 Anti -tail function auto-lock once turn120° or 60°.
3. Arms auto drop when power off, ensure unblocked when accident.
4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work.
5. Diverse control mode optional, changeable due to varying, convenient for your manage.

Application Location

♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.

♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.

♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.

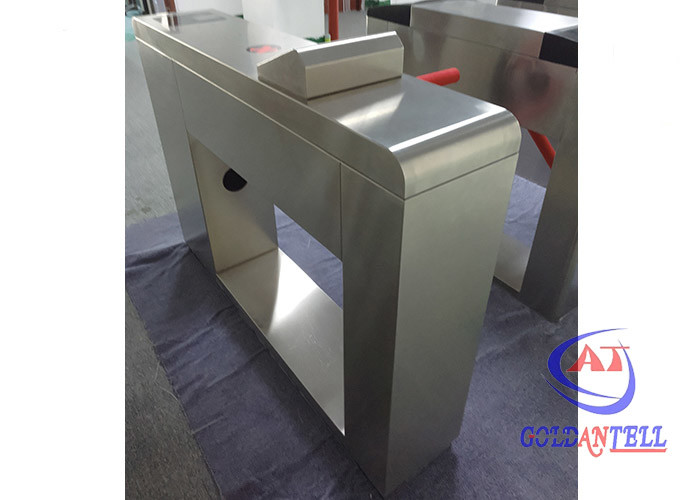

Details Photos

Factory Photos

FAQ

Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q. What is your sample policy?
A: We offer samples if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q. Do you test all your goods before delivery?
A: Yes, we have the 100% test before delivery, and will provide a testing video for your confirmation before shipment.
