Led light customizable speed lane turnstile gate biometric scanner pedestrian dual channels
Security Features
1. Low noise, no mechanical impact
2. Single directional or Bi-directional
3. High operation with quick response
4. Directional LED Optical Signals: Green Arrow or RED Cross signage.
5. With fault self-check function and Alarm function, convenience for maintains.
6. Single lane or multiple lane set-up.
Product Brief
◊ This product is a special type of face temperature rapid detection products, can replace the traditional market thermometer.
◊ Equipping with intelligent Tripod turnstile, flap turnstile, and swing barrier.It is finely processed with complete functions and high-security level, suitable for high-level neighborhoods, commercial building, and so on.
Onsite Application
1. Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
3. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
Technical specification of Swing Turnstile
| Cabinet dimension |
1500 (L) x 120 (W) x 1000 (H) mm |
| Cabinet material |
304 stainless steel (316 ss can be custom-made) |
| Switching power supply |
AC220±10%V 50Hz or AC110±10%V 60Hz |
| Opening/closing time |
0.6s |
| Lane width |
normally 600mm or 900mm, can lengthen |
| Access mode |
single in/out or Bidirectional |
| Optimal flow rate |
40 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down |
default 10s, can be changed to fit different demands |

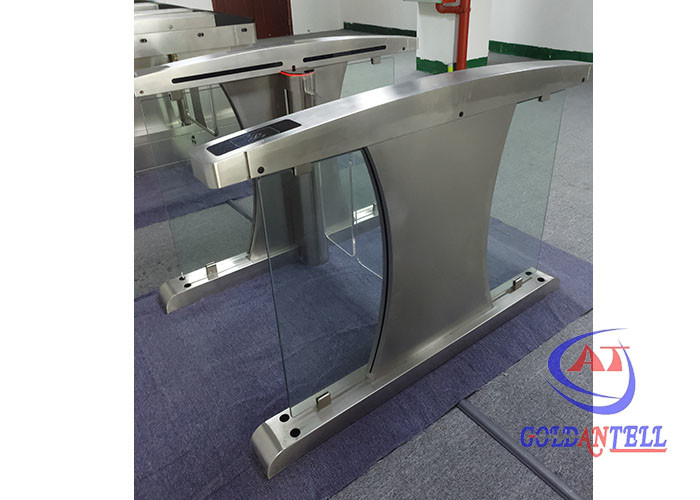

Lanes Layout & Real Photos

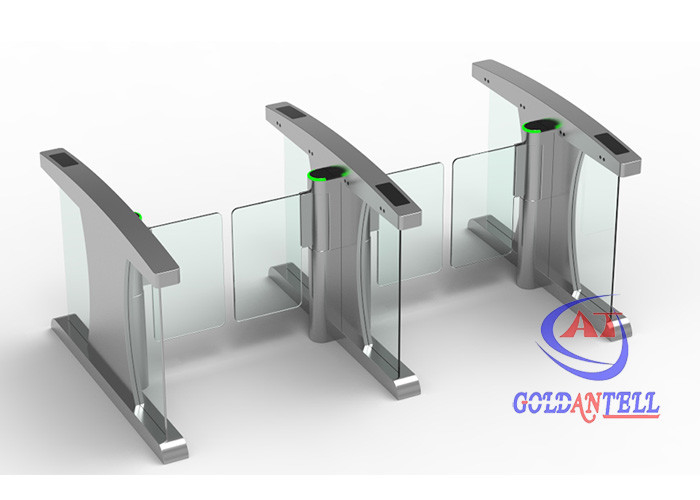

a. Multiple lanes ( 2, 3, 4 or more channels, passageway required)
For example, as shown below, 2 passageway lanes ( use two units of single- motor and one unit dual-motor machine).

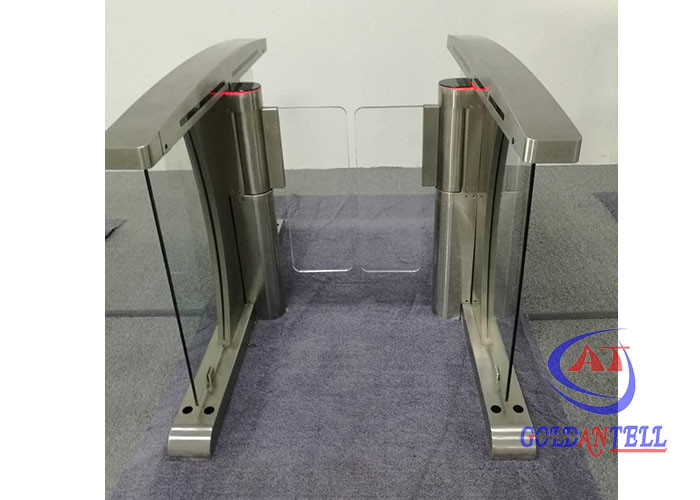

b. Single lane (channel), as shown below, use two units of a single-motor machine.
Package Info
Inside with a carton package.Then outside,there are 2 kinds of packages under your choice:
crate package and closed wooden package.
