Product Details:
Payment & Shipping Terms:
|
| Type: | Three Arm / Rail Turnstile | Size Of Product: | 420mm (L) * 330mm (W) * 1000mm (H) |
|---|---|---|---|
| Package Size: | 520mm (L) * 430mm (W) * 1080mm (H) | Compatible: | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Communication Port: | RS485 ,TCP/IP | Application: | Pulic Toilelt, Park, Office Building, Club, Etc. |
| Net Weight: | 40KG | Gross Weight: | 45KG |
| Product Name: | 304 SUS Automatic Tripiod Turnstile | Material: | 304 Stainless Steel /316 Stainless Steel |
| High Light: | tripod barrier,tripod barrier gate |
||

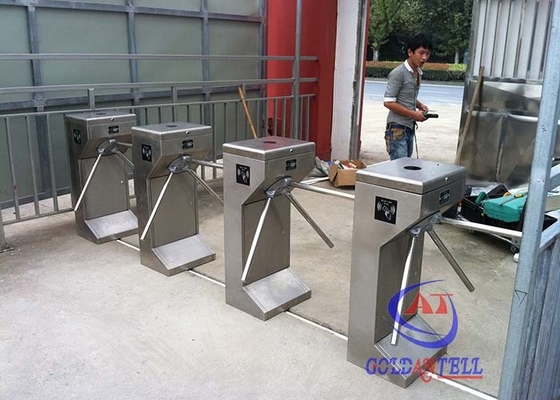

Waist high RFID Card Waterproof Outdoor vertical tripod turnstile used for movie theaters
Description
1. Classification: 1) full automatic 2) semi- automatic 3) manual, the semi- automatic is the most widely used.
2. Standard features: Made of 304 /316 stainless steel,Goldantell tripod turnstile with nice and elegant shape, anti- rust,durable, Resistant to external damage.
3. Standard Functions: Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.
4. Application place: This item is widely used in station,pier,subway,factory,office building,intelligent community, hotel, clubs, enterprise, etc.
5. System Integration: This equipment is integrated with mechanism,electric and micro- controller and various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on, to provide intelligent control and management to flow control.
Specifications:
| Size |
420mm (L) * 330mm (W) * 1000mm (H) |
| Working voltage | AC220±10%V 50±10%HZ |
| Working movement | DC24V solenoid valve |
| Arm width: | 510 mm |
| Support force of arm: | 60kg |
| Passage width: |
≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Emergence: |
When power off, arm open automatically |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: | single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: |
standard RS485 interface, distance ≤1200m |
| Housing material |
domestic standard 304 # stainless steel |
| Input interface: |
+12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Standard features
1. Surface finish of the cabinet: satin finish / polishing / anti- fingerprint/frosted finish / electroplating / baking finish.
2. Appearance: customized according to customer’s requirement.
3. Material of the cabinet: 304 / 316 grade stainless steel.
4. Stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
Comparison of three kinds of tripod turnstiles:
| Tripod turnstile function & Features |
Fully |
Semi |
Manual |
|
1. Turnstile can setting the working condition by press the button of main control board.
|
√ | √ | × |
|
2. Auto-lift-arm function: the arm can lift automatically with alert when the power is on again.
|
Auto- |
Auto- |
NO action |
|
3. Auto- drop- arm function: the arm can drop down automatically (default) (or free passing) when the power is off.
|
Auto-lift-arm |
manual- |
NO action |
|
4. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you).
|
√ | √ | × |
|
5. The turnstile can work with door access control system/ |
√ | √ | × |
|
6. Once an open signal is give, the arms will rotate |
√ | √ | × |
|
7. LED indicator light |
√ | √ | × |
| 8. When pedestrian pass the turnstile, what should they do? | Automatic-rotation |
manual |
manual |
|
9. The turnstile is bidirectional (pedestrian can enter and |
√ | √ | × |
|
10. Can manager and long-range control the |
√ | √ | × |
Access control system
1. we can offer the access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2. support special function: counter, token / coin- operation.
3. ESD tester system and function.
Application
1. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
3. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
