Full Automatic Drop Arm Turnstile Gate Double Chips Bi - Directional Three Roller

  • Full Automatic Drop Arm Turnstile Gate Double Chips Bi - Directional Three Roller
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-308
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,Western Union,L/C,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Three Arm / Rail Turnstile Size Of Product 420mm (L) * 330mm (W) * 1000mm (H)
Package Size 520mm (L) * 430mm (W) * 1080mm (H) Compatible RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Communication Port RS485 ,TCP/IP Application Pulic Toilelt, Park, Office Building, Club, Etc.
Net Weight 40KG Gross Weight 45KG
Product Name 304 SUS Automatic Tripiod Turnstile Material 304 Stainless Steel /316 Stainless Steel
Highlight

tripod barrier

,

tripod barrier gate
Leave a Message
Product Description

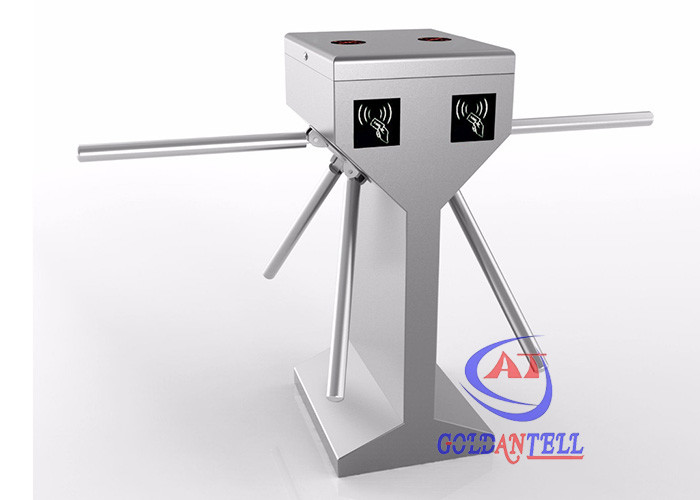

Full Automatic Drop Arm Turnstile Gate Double Chips Bi-Directional Three Roller

Double chips bi-directional Three Roller Gate Full-automatic drop arm turnstile rate / traffic barrier gate

Product Description
  • Classification: 1) Full automatic 2) Semi-automatic 3) Manual (semi-automatic is most widely used)
  • Standard features: Made of 304/316 stainless steel, elegant design, anti-rust, durable, resistant to external damage
  • Standard Functions: Rectangular box and brake lever create orderly passage, prevent unauthorized access, arms release in emergencies
  • Applications: Stations, piers, subways, factories, office buildings, intelligent communities, hotels, clubs, enterprises
  • System Integration: Combines mechanical, electrical and micro-controller technologies, compatible with IC/ID cards, barcodes, fingerprint readers for intelligent flow control
Technical Specifications
Parameter Value
Size 560mm (L) * 330mm (W) * 1000mm (H)
Working voltage AC220±10%V 50±10%HZ
Working movement DC24V solenoid valve
Arm width 510 mm
Support force of arm 60kg
Passage width ≤600 mm
Time of opening 0.2 second
Pass speed 30 persons/min
Emergency feature Arms open automatically when power fails
Normal running life 3 million cycles
LED light Direction arrow indicator
Direction Single or bi-directional (optional)
Working environment Indoor/outdoor (with cover) -10℃～70℃
Relative humidity ≤90% (non-condensing)
Communication interface Standard RS485 interface, distance ≤1200m
Housing material 304 stainless steel
Input interface +12V level signal or pulse width>100ms 12V pulse
Tripod Turnstile Comparison
Function & Features Fully Automatic Semi Automatic Manual Operation
Configurable working conditions via control board ✓ ✓ *
Auto-lift-arm function when power restored Auto-drop-arm Auto-drop-arm No action
Auto-drop-arm function when power fails Auto-lift-arm Manual-lift-arm No action
Automatic reset function (1-60s adjustable) ✓ ✓ *
Compatibility with access control systems ✓ ✓ *
Automatic arm rotation with open signal ✓ ✓ *
LED indicator light ✓ ✓ *
Pedestrian action required Automatic-rotation Manual push Manual push
Bi-directional operation ✓ ✓ *
Remote computer management ✓ ✓ *
Standard Features
  • Surface finish options: satin, polishing, anti-fingerprint, frosted, electroplating, baking
  • Customizable appearance per customer requirements
  • Cabinet material: 304/316 grade stainless steel
  • Stainless steel thickness: customizable 1.2~2.0mm
Access Control System Options
  • Fingerprint, face recognition, card reader, QR code, barcode ticket systems
  • Special functions: counter, coin-operation
  • ESD tester system integration
Applications
  • Public Places: Subways, airports, stations, libraries, parks, museums, offices
  • Entertainment: Theaters, clubs, gyms, swimming pools
  • Business: Hotels, factories, banks, hospitals, schools, enterprise entrances
Packaging Options
  • With access control system: closed wooden box
  • Without access control system: choice of crate or closed wooden box
