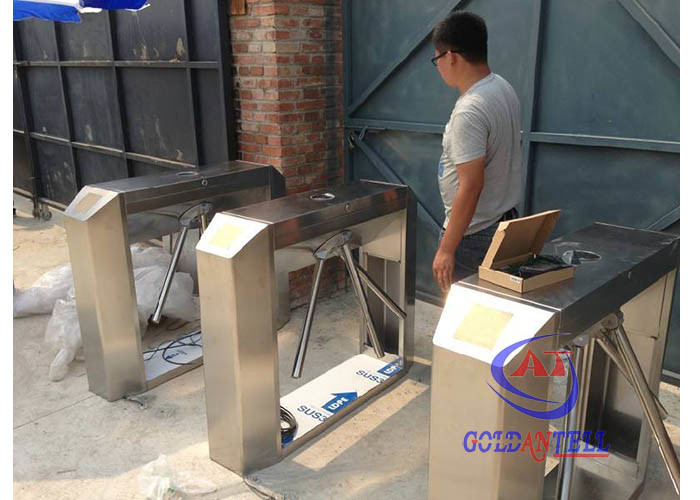

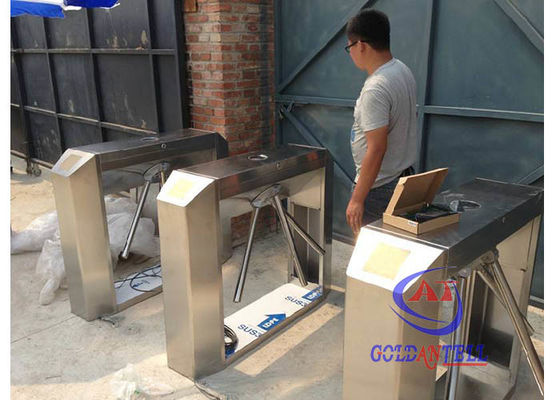

Three Roll Turnstile Barrier Gate Automatic Ticketing Access System 510mm Arm Width

  • Three Roll Turnstile Barrier Gate Automatic Ticketing Access System 510mm Arm Width
  • Three Roll Turnstile Barrier Gate Automatic Ticketing Access System 510mm Arm Width
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-305
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,Western Union,L/C,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Of Product 1200mm (L) * 280mm (W) * 1000mm (H) Compatible ESD Testing System
Communication Port RS485 ,TCP/IP Application Pulic Toilelt, Park, Office Building, Club, Etc.
Net Weight 45KG Product Name Esd Testing Turnstile
Material 304 Stainless Steel Working Mode Coins / Rfid Cards, Fingerprint, Ticket Scanner
Highlight

tripod barrier

,

tripod barrier gate
Leave a Message
Product Description
Three Roll Turnstile Barrier Gate Automatic Ticketing Access System 510mm Arm Width
Product Description

Three-roll gate electric barrier gate automatic ticketing access system SDK turnstile

Turnstile Specifications
Turnstile Size 1200 mm (L) * 280 mm (W) * 1000 mm (H)
Working voltage AC220±10%V 50±10%HZ
Arm width 510 mm
Passage width ≤600 mm
Time of opening 0.2 second
Pass speed 30 persons/min
Emergence When power off, arm open automatically
Normal running life 3 million
LED light direction arrow
Direction single or bi-directional (optional)
Working environment indoor/outdoor (with a tent over) -10℃～70℃
Relative humidity ≤90% coagulation free
Communication interface standard RS 485 interface, distance ≤1200m
Housing material domestic standard 304# stainless steel
Input interface +12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA
Features & Functions
  • Card reading function with or without memory, configurable via built-in keyboard
  • Automatic people counting with LED display
  • Direction indicator showing passing or prohibiting status
  • Opposite direction passing prevention with configurable locking time
  • Illegal passing prevention with configurable locking time
  • Anti-collision function that stops and resumes operation after impact
  • Self-resetting function cancels passing rights if not used within set time
  • RS485 communication capability
Three Roll Turnstile Barrier Gate Automatic Ticketing Access System 510mm Arm Width 0
Fingerprint Reader Specifications
Three Roll Turnstile Barrier Gate Automatic Ticketing Access System 510mm Arm Width 1
Fingerprint Capacity 1500pcs
Card Capacity 10000pcs
Record capacity 100000 pcs
Access port door sensor, alarm, electric lock, door switch
Networking way TCP/IP port, RS485 network communications
USB interface using USB data to upload, download
Fingerprint readers collector new hd without film
Resolution 500 dpi
Display and operation hints the power indicator light, the double lamp LED status indicators
Recognition rate for 2 seconds or less
Misjudgment rate 0.0001% or less
From the rate 0.01% or less
Alarm processing teardown processing (alarm when conduction)
Algorithm platform latest high-speed twin-engine fingerprint recognition algorithm
Hardware platform 12 v DC, standby current < 500 mA, working current < 400 mA
Using the environment temperature 0 ℃ - 45 ℃
Using the environment humidity 20% to 80%
Size 73 * 148 * 34.5
Competitive Advantage
  • More than 10 years powerful ODM/OEM ability with custom product design, logo, and packaging
  • Professional customer service available 16 hours daily
  • Complete system software management solutions to save time and cost
  • Special repair service: Remote troubleshooting with free spare parts replacement within 1 year
